Isolated Pedal Power Supply

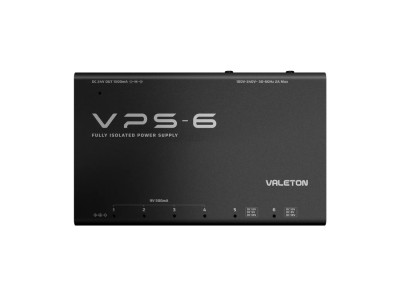

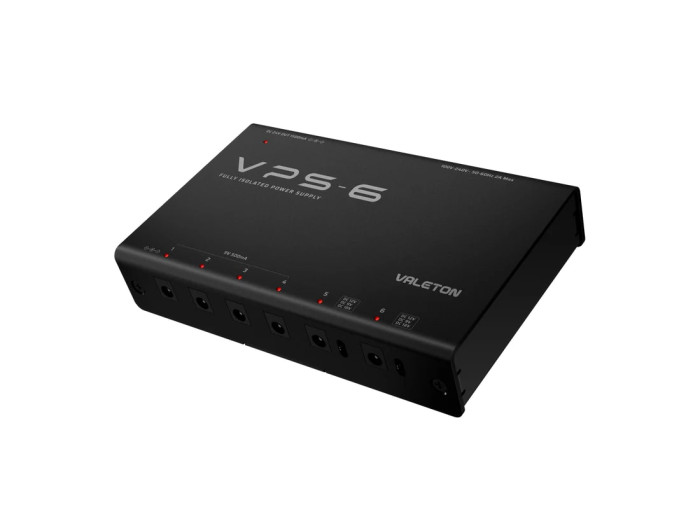

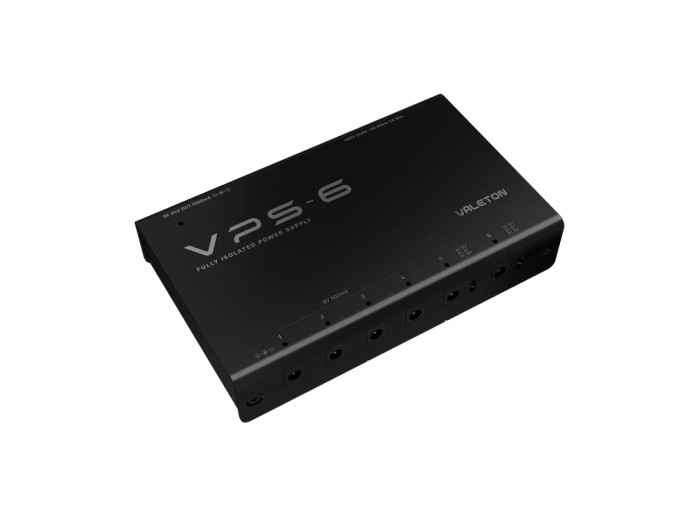

The VPS-6 is a high-output isolated power supply designed for modern pedalboards. Featuring seven isolated outputs, multiple voltage options, and comprehensive protection, it provides clean and reliable power for a wide range of effects pedals.

Features

• Seven isolated outputs with independent power delivery
• Advanced noise reduction using solid-state capacitors and common-mode inductance filtering
• Four isolated 9V/500mA outputs
• Two switchable outputs:
  • 9V/500mA
  • 12V/375mA
  • 18V/250mA
• High-current output: 24V/1500mA
• Supports center-negative and center-positive devices
• Expandable power system via 24V output connection
• Independent overload, over-voltage, and short-circuit protection for each output
• LED indicators for power status and protection warnings
• Full aluminum metal housing with efficient heat dissipation
• Wide input voltage range: 100–240V AC, 50/60Hz
• Designed for stable operation in different power environments

Power Supply

• Six independent custom transformers for clean, reliable power delivery

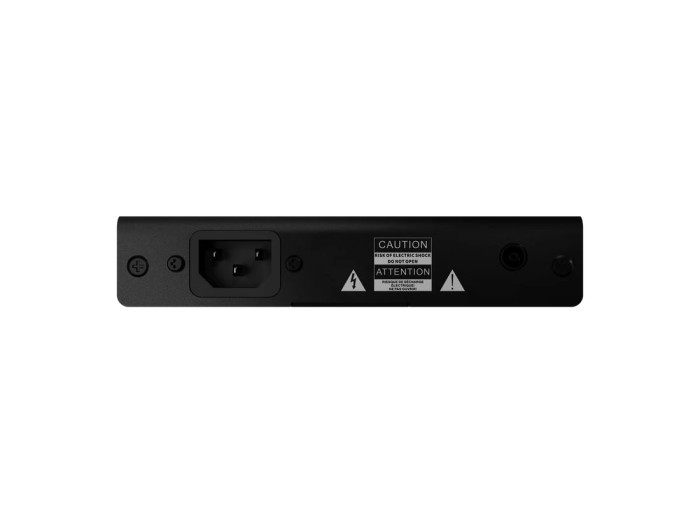

• Input: 100–240V AC, 50/60Hz
• Energy-efficient compact design

Outputs

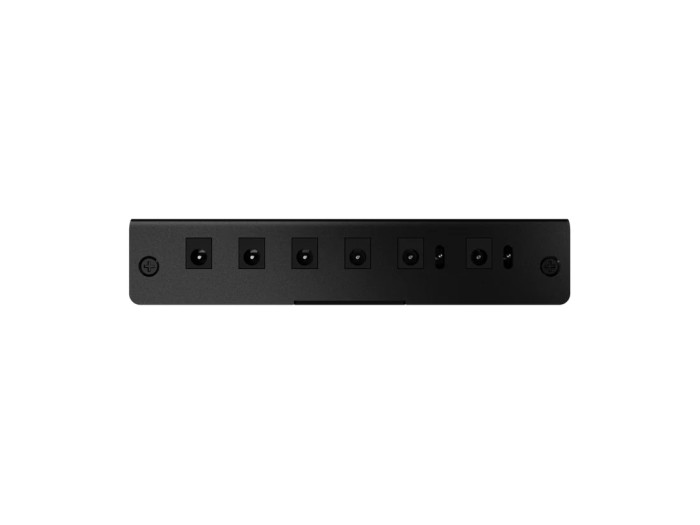

• 4 × 9V DC outputs, 500mA each, center-negative
• 2 × adjustable outputs:
  • 9V DC / 500mA
  • 12V DC / 375mA
  • 18V DC / 250mA
  • Center-negative
• 1 × 24V DC output, 1500mA, center-positive
• 24V DC output allows connection of additional 24V power supplies for expansion

Protection

• Individual overload and short-circuit protection for each channel
• LED status indicators for easy troubleshooting and monitoring

Dimensions & Weight

• Dimensions: 158 × 98 × 32mm
• Weight: 455g
