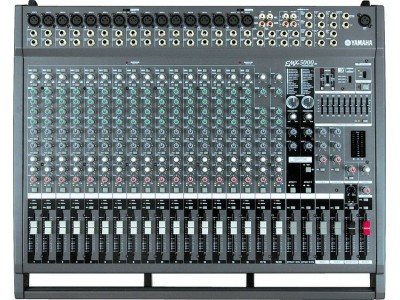

Yamaha EMX 5000 20 **

Serious input capacity and power.

With 20 channels and 500W per side or 1,000W bridged, the Yamaha EMX5000-20 20-Channel Powered Mixer will handle the bigger gigs and bands. Channels 1-16 provide XLR and TRS phone connection. Channels 17/18 and 19/20 have phone and RCA jacks. Channel inserts on all 16 mono channels. 3-band EQ is provided on all channels, plus a 9-band graphic. Dual SPX 24-bit digital effects engines deliver 2 blocks of 16 presets. 4 aux sends include 2 pre/post and 2 for effects. 2 - 13-point meters. Other features include a power select switch, low-pass filter on mono out, standby switch, lamp connector, and a footswitch connection for Effect 2 on/off and Tap.

• 20 channels
• 500W per side (1,000W bridged)
• Channel inserts on 16 mono channels
• 3-band EQ on all channels
• 4 aux sends (2 pre/post, 2 effects)
• +48V phantom power
• 9-band graphic equalizer
• Dual blocks of 16 - 24-bit digital effects
• Power select switch (500W/300W/100W)
• 2 - 13-point meters
• Yamaha speaker processing
• Low-pass filter on mono out
• Standby switch
• Footswitch connection for Effect 2 on/off and Tap
• Lamp connector
• 26-7/8"W x 6-1/4"H x 21-3/16"D
