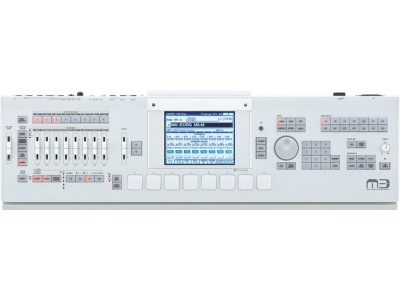

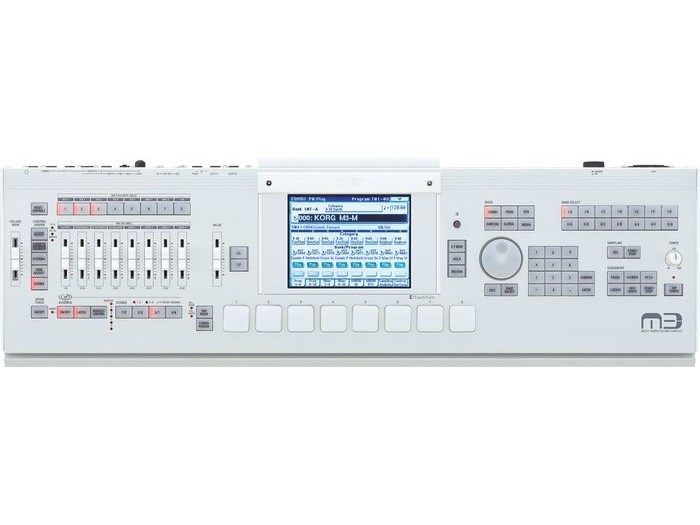

Korg M3-XP-M **

Korg redefines the workstation category by distilling the power of their flagship OASYS into the M3-M tabletop music workstation/sampler! The powerful EDS (Enhanced Definition Synthesis) sound generator is derived from the OASYS' HD-1 engine design, and it also has advanced second-generation KARMA functionality in addition to a multi-purpose control surface.

Synthesis Technology
EDS (Enhanced Definition Synthesis)
MMT (Multi Modeling Technology) sound generator can be added by installing the optional EXB-RADIAS
Tone Generator
256 Mbyte (when converted to 16-bit linear format)
1,032 Multisamples
1,606 Drum Samples
Maximum Polyphony
120 voices, 120 oscillators max, single mode
60 voices, 120 oscillators max, double mode*
* The actual maximum polyphony will vary depending on oscillator settings such as stereo multisamples and velocity crossfading.
Oscillator
OSC1 (Single), OSC1+2 (Double)
Stereo multisamples are supported
4 velocity zones per oscillator, with switching, crossfades and layers.
Filters
Four types of filter routing (single, serial, parallel, 24 dB)
Two multi-mode filters per voice (low pass, high pass, band pass, band reject)
EQ
Three bands, with sweepable mid
Modulation
For each voice: two envelope generators (Filter & Amp)
Two LFOs
Two key tracking generators (Filter & Amp)
Two AMS mixers
Pitch EG
Common LFO
Two common key tracking generators
