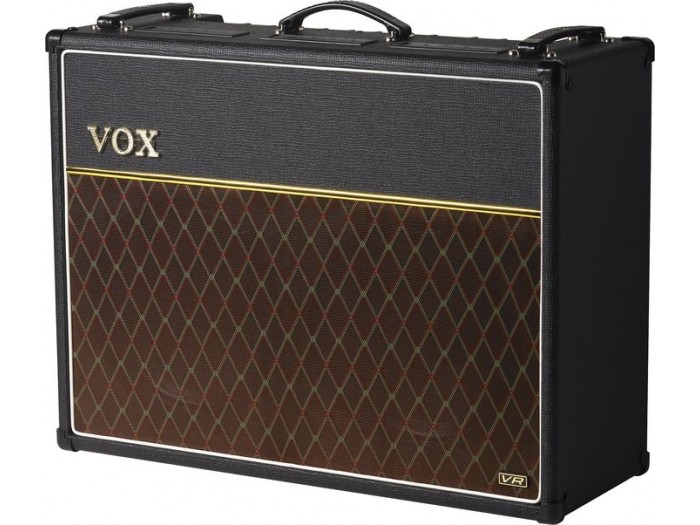

Vox AC30VR

Twin channel, guitar amplifier with 2x12" VX 12 Celestion custom-made loudspeaker and digital reverb.

Using an "old-school" split-panel design, the AC30VR offers two distinct channels—Normal and Overdrive—with the Overdrive channel adding a separate Gain knob. In addition, the overdrive Style button delivers two distinctive flavours.



Equipped with two custom-designed 12" Celestion speakers, the AC30VR delivers a roaring 30 watts of power. The Normal channel offers both Bass and Treble tone controls, along with a single Volume knob. A Gain knob has been added to the Overdrive channel, as well as a Middle control for more defined tone shaping. In the Master section, the AC30VR features a unique Tone Cut circuit knob for dampening the high-end frequencies. Master Reverb and Master Volume controls are also provided.



The AC30VR's back panel features an external speaker jack for use with an 8 Ohm extension cabinet. Using an extension cabinet will mute the internal speaker. Also provided is a jack for the optional Vox VFS2 dual footswitch (not included), which offers hands-free channel-switching and reverb on/off action.

• Input jack


• Normal volume control


• Channel switching button


• Overdrive style button


• Overdrive channel gain control


• Channel select led


• Overdrive channel volume control


• Bass control


• Treble control


• Master volume


• Master reverb


• Power LED


• Mains power switch


• Footswitch jack


• Headphone jack


• External loudspeaker jack


• Mains power connector/fuse


• Air vents

Vox AC30VR Valve Reactor 2x12 Guitar Combo Amp Specifications:

• Dimensions: 27.64"W x 10.43"D x 21.89"H


• Weight: 50.71 lb.


• Output Power: 30 Watts RMS into 8 Ohms


• Speaker: 2x 12", 16 Ohm VX12 Celestion custom speaker


• Inputs: Input jack, Footswitch jack


• Outputs: External Loud Speaker jack


• Options: VFS2 Dual Footswitch
