Opis proizvoda:

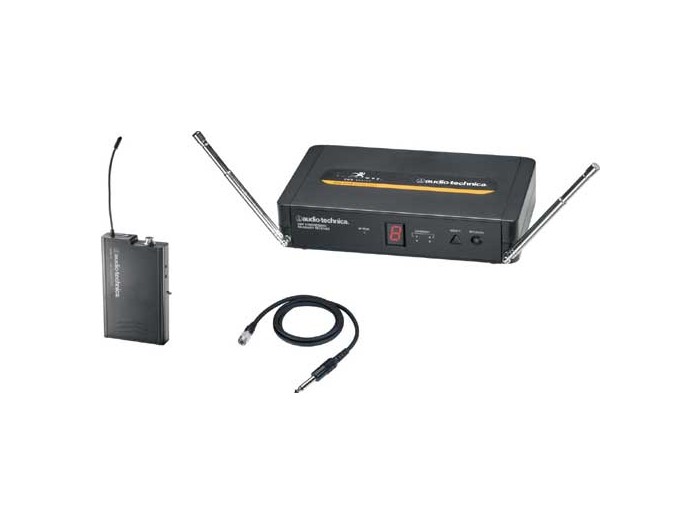

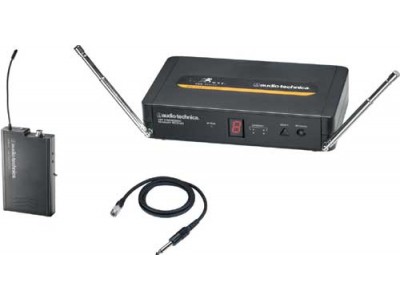

ATW-R700 receiver and ATW-T701 UniPak™ transmitter with AT-GCW guitar/instrument input cable.

Audio-Technica’s 700 Series Freeway wireless delivers professional features and sound quality unheard of in its class. These easy-to-use wireless systems feature eight selectable frequency-coordinated channels, diversity operation for increased range/reliability, automatic frequency scanning, Tone Lock™ squelch and more. 700 Series Freeway systems come equipped with your choice of handheld, headworn, or lavalier microphones; or choose a system designed for guitar hookup. For multiple-mic applications, as many as eight systems may be used together.

Karakteristike:

Operating Frequencies: UHF band, 542.125 MHz to 561.250 MHz
Number of Channels: 8
Frequency Stability: +/-0.005%, Phase Lock Loop frequency control
Modulation Mode: FM
Maximum Deviation: +/-25 kHz
Operating Range: 200' typical
Frequency Response: 100Hz to 12kHz

Receiver Specifications

Receiving System: Antenna-switching diversity
Image Rejection: 55 dB minimum
Signal-to-Noise Ratio: >80dB at 10 kHz deviation (IEC-weighted), maximum deviation 25 kHz
Total Harmonic Distortion: <=1% (10kHz deviation at 1kHz)
Sensitivity: 25 dBµV (S/N 60 dB at 10 kHz deviation, IEC-weighted)
Audio Output, Unbalanced: 211 mV (-13.5 dBV) (1 kHz modulation, 10 kHz deviation); Balanced: 150 mV (-16.5 dBV) (1 kHz modulation, 10 kHz deviation)
Output Connectors, Unbalanced: 1/4" TS ("mono") phone jack; Balanced: XLRM-type
Power Supply: 100-240V AC (50/60 Hz) to 12 DC 1 A (center positive) switched mode, external power supply
Dimensions (W x H x D): 7.48" x 1.65" x 5.12"
Weight: 12.9 oz
Accessory Included: Power supply

Body-Pack Transmitter Specifications

RF Power Output: High: 10 mW; Low: 5 mW
Spurious Emissions: Under federal regulations
Dynamic Range: >100 dB, A-weighted
Input Connections: High impedance, low impedance, bias
Batteries: Two 1.5V AA alkaline (not included)
Current Consumption: High: 140 mA; Low: 130 mA, typical
Battery Life: Approximately 8 hours (High); 10 hours (Low), depending on battery type and use pattern
Dimensions (W x H x D): 2.56" x 4.13" x 0.73"
Net Weight: 2.8 oz
