| Recorder Part |
| Tracks |
2 (stereo one pair) |
| Signal Processing |
AD/DA conversion: 24 bits, 44.1/48/88.2/96 kHz |
| Data Type (Recording) |
WAVE (Sampling Rate: 44.1/48/88.2/96 kHz, Bit Depth: 16/24 bits) |
| MP3 (Sampling Rate: 44.1/48 kHz, Bit Rates: 64/96/128/160/192/224/320 kbps) |
| WAVE + MP3 (Sampling Rate: 44.1/48 kHz, Bit Depth: 16 bits, Bit Rates: 128 kbps) |
| |
| *MP3 ... MPEG-1 Audio Layer 3 |
| Data Type (Playback) |
WAVE (Sampling Rate: 32/44.1/48/88.2/96 kHz, Bit Depth: 16/24 bits) |
| MP3 (Sampling Rate: 32/44.1/48 kHz, Bit Rates: 32 - 320 kbps or VBR) |
| |
| *MP3 ... MPEG-1 Audio Layer 3, VBR ... Variable Bit Rate |
| Memory Card |
SD Card, SDHC format compatible |
| Recording Time |

|
| |
| * Each recording time is approximate. The times may change depending on the card specifications. |
| * In case that there are plural files, the sum of recording time would be shorter than above. |
| Input/Output |
| Audio Inputs |

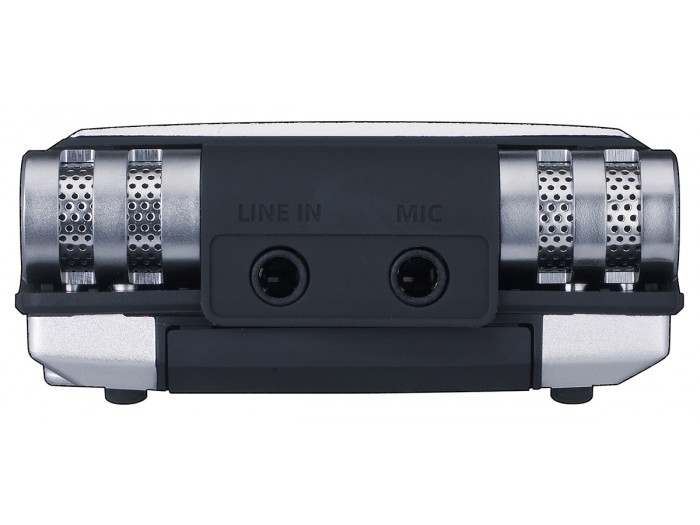

Internal Stereo Microphone, Mic input (Stereo miniature phone type, plug-in powered mic), Line input (Stereo miniature phone type) |
| *The Internal/External Mic and the Line input can't be used at the same time (Line input priority). |
| Audio Output |
Phones (Stereo miniature phone type) |
| Nominal Input Level (Variable) |
Mic input: -33 dBu (MIC GAIN is H, Default input level) |
| Mic input: -15 dBu (MIC GAIN is L, Default input level) |
| Line input: -7 dBu (Default input level) |
| * 0 dBu = 0.775 Vrms |
| Input Impedance |
Mic input (MIC GAIN is H): 7k ohms |
| Mic input (MIC GAIN is L): 5k ohms |
| Line input: 8 k ohms |
| Output Level |
20 mW + 20 mW (In case 16 ohms load) |
| Recommended Load Impedance |
16 ohms or greater |
| Frequency Response |
20 Hz to 40 kHz |
| USB Interface |
Mini-B type connector (support USB 2.0/1.1 mass storage device class) |
| Effects |
| Reverb |
4 types (Hall1, Hall2, Room, Plate) |
| Speed change: |
50 - 150 % of playback speed |
| |
* Playback only. Excludes playback in 88.2 kHz or 96 kHz. |
| * Reverb and Speed Change can't be used at the same time. |
| Others |
| Display |
128 x 64 dot graphic display |
| Power Supply |
AC Adaptor |
| Alkaline dry battery LR6 (AA) type x 2 or Nickel Hydrogen battery (HR15/51) x 2 |
| Current Draw |
290 mA (maximum) |
| Duration of continuous use with Alkaline battery operation |
Playback: over 30 hours |
| Recording: over 16 hours |
| * These figures will vary depending on the actual conditions of use. |
| Accessories |
Owner's manual, Quick start guide, SD card, Batteries (two AA), USB cable (mini-B type), Windscreen |
| Options |
AC Adaptor: PSB6U series, Silicone Rubber Case: OP-R05S, Cover / Windscreen Set: OP-R05C, Carrying Pouch: OP-RP1, Microphone Stand Adaptor: OP-MSA1, Binaural Microphones / Earphones: CS-10EM, Stereo Microphone: CS-15S |
| Size and Weight |
| Width |
60 mm |
2-3/8 inches |
| Depth |
103 mm |
4-1/16 inches |
| Height |
25 mm |
1 inches |
| Weight |
140 g |
0 lbs. 5 oz. |
