Vonyx PD504B

Description

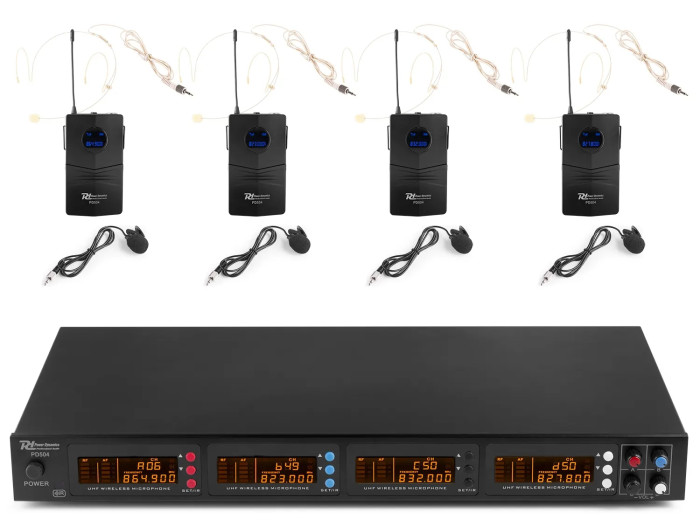

This impressive sounding Power Dynamics UHF 4 microphone wireless system allows you to operate 4 microphones at the same time. Each microphone is coded allowing for quick microphone identification making the job of your sound man to make adjustments while the mics are being used on stage super easy. Excellent sound quality for vocal and PA applications.

Highlights

• 4x Bodypack with headset and tie-clip microphone and mute function
• 4x 50 Selectable non-interfered UHF channels
• IR data transmission for channel selection
• Microphone connection using 3,5mm screwable jack

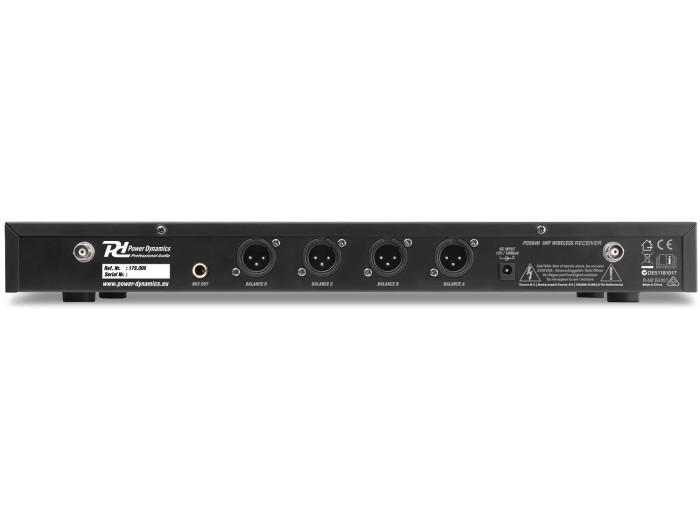

• 4x balanced XLR outputs
• CPU controlled
• PLL oscillator
• Transmitters with display showing the frequency and battery low indication
• Equipped with Dynamic LCD

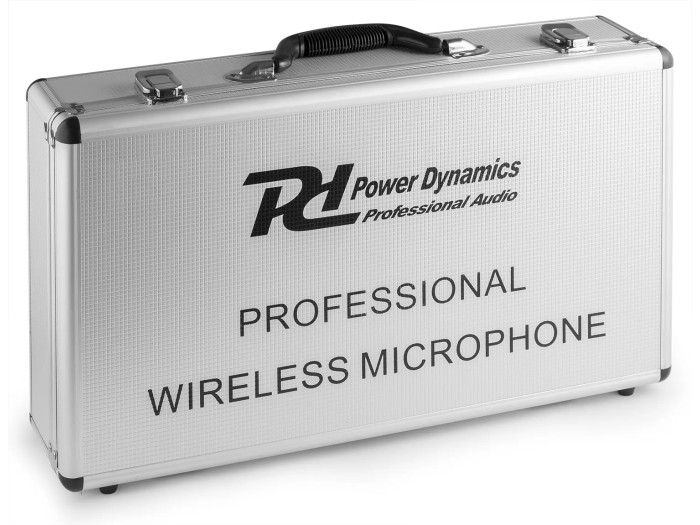

• Supplied in aluminium carrying case
• Including 19" brackets

Brand: Power Dynamics
Product Series: PD504 Series
Colour: Black

RF Specifications

RF Channels: 50

RF Frequency (Receiver): 863.000–865.000 MHz, 826.300–831.200 MHz

RF Output Power: < 10 mW

RF Frequency Stability: 0.0015%

Audio Specifications

Signal-to-Noise Ratio (Main): > 97 dB

Total Harmonic Distortion (THD, Main): < 1%

Connections

Input Connections

XLR

3.5 mm jack

Output Connections

3.5 mm jack

XLR

Power Supply

Voltage: 100–240 V AC

Frequency: 50/60 Hz

Power Adapter: 12 V

Dimensions and Weight

Bodypack Transmitter

Dimensions (W × D × H): 6 × 7.5 × 2.3 mm

Weight: 0.2 kg

Receiver

Dimensions (W × D × H): 42 × 23.5 × 4.4 mm

Weight: 1.7 kg

Total Weight: 5.1 kg
