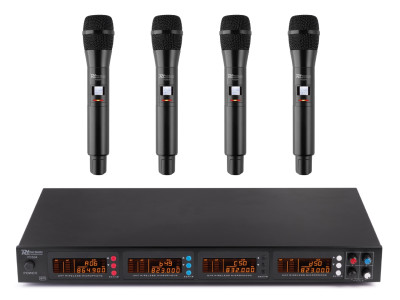

Power Dynamics PD504H

Description

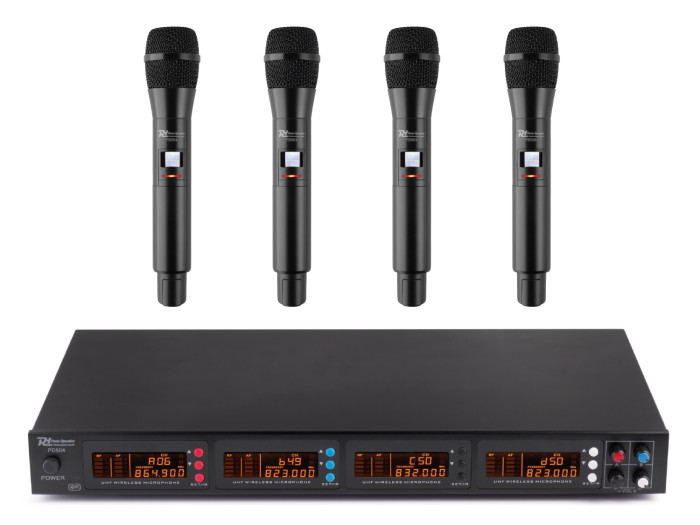

This impressive sounding Power Dynamics UHF 4 microphone wireless system allows you to operate 4 microphones at the same time. Each microphone is coded allowing for quick microphone identification making the job of your sound man to make adjustments while the mics are being used on stage super easy. Excellent sound quality for vocal and PA applications.

Highlights

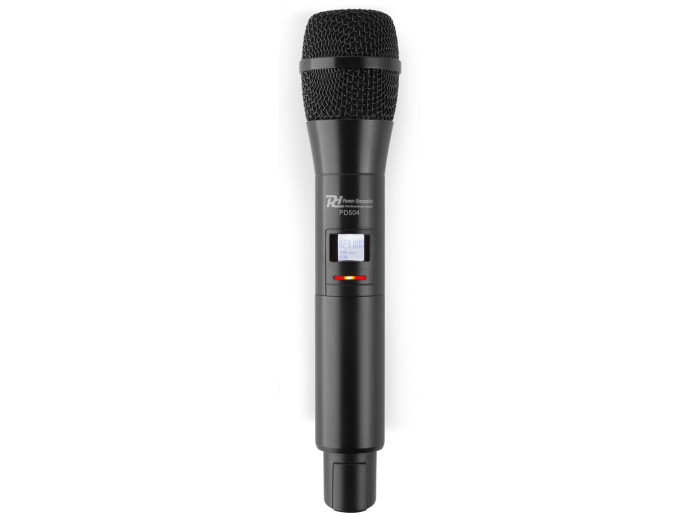

• 4x Handheld microphones with mute function
• 4x 50 Selectable non-interfered UHF channels
• IR data transmission for channel selection

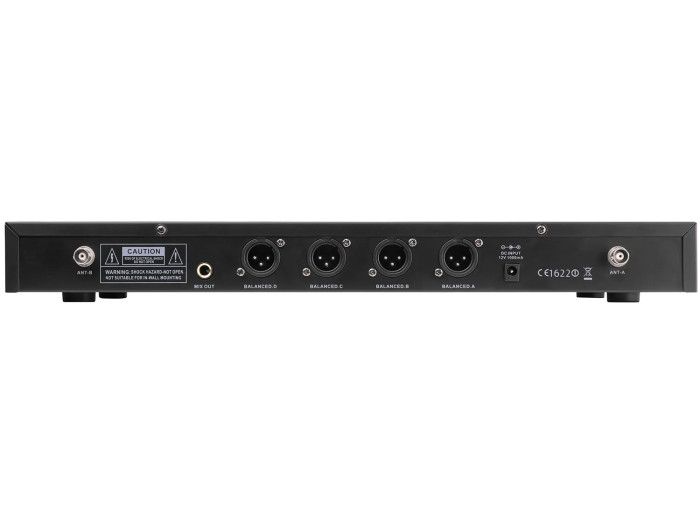

• 4x balanced XLR outputs
• CPU controlled
• PLL oscillator
• Transmitters with display showing the frequency and battery low indication
• Equipped with Dynamic LCD

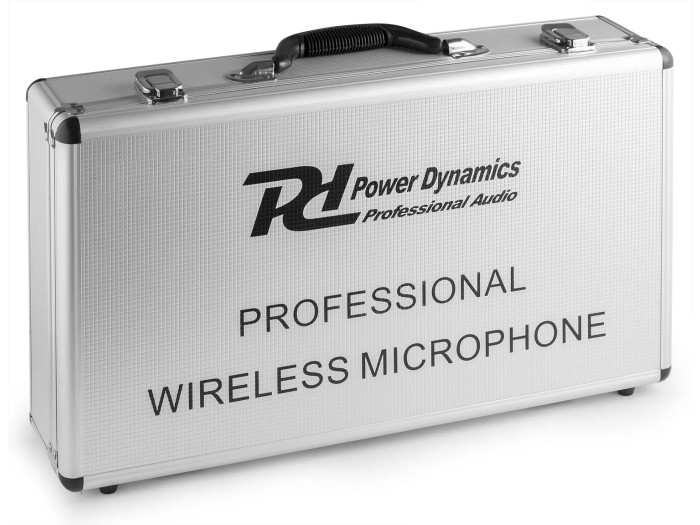

• Supplied in aluminium carrying case
• Including 19" brackets

Brand: Power Dynamics
Product Series: PD504 Series
Colour: Black

RF Specifications

RF Channels: 50

RF Frequency (Receiver): 863.000–865.000 MHz, 826.300–831.200 MHz

RF Output Power: < 10 mW

RF Frequency Stability: 0.0015%

Audio Specifications

Signal-to-Noise Ratio (Main): > 97 dB

Total Harmonic Distortion (THD, Main): < 1%

Connections

Output Connections

XLR

Power Supply

Power Supply: 100–240 V AC, 50/60 Hz

Adapter: 12 V

Dimensions and Weight

Handheld Microphone

Dimensions (Ø × H): 5.1 × 25 mm

Weight: 0.4 kg

Receiver

Dimensions (W × D × H): 42 × 23.5 × 4.4 mm

Weight: 1.7 kg

Total Weight: 6 kg
