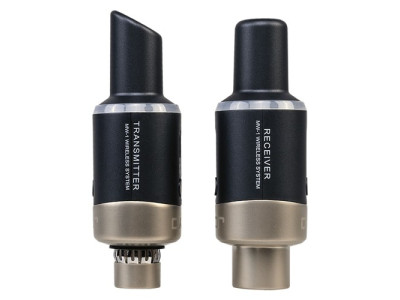

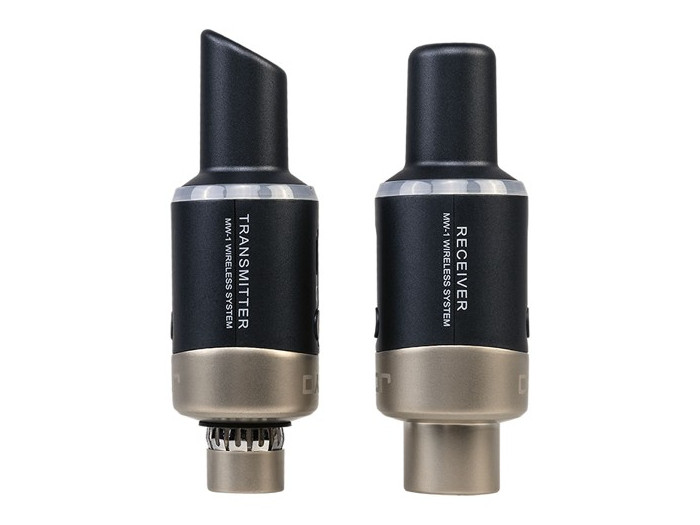

Joyo MW-1 Wireless Microphone System

The JOYO MW-1 Wireless Microphone System is a plug-and-play adapter set that converts a standard wired XLR microphone into a wireless setup.

• Low latency rechargeable wireless system for  microphones
• Fast 5.8ghz transmission with high 48khz 24 bit sampling rate quality
• plug-and-play wireless system for transforming your wired  mic into a wireless one
• 4 channels, supporting 1 transmitter to 1 receiver and 1 transmitter to many receiver pairing.
• 4-5 hours  battery life.

You won't even notice the transmitter plugged in to your microphone. Drop the draggy XLR cable and move to wherever the music takes you, uninterrupted, thanks to very low latency and a 100ft wireless range.

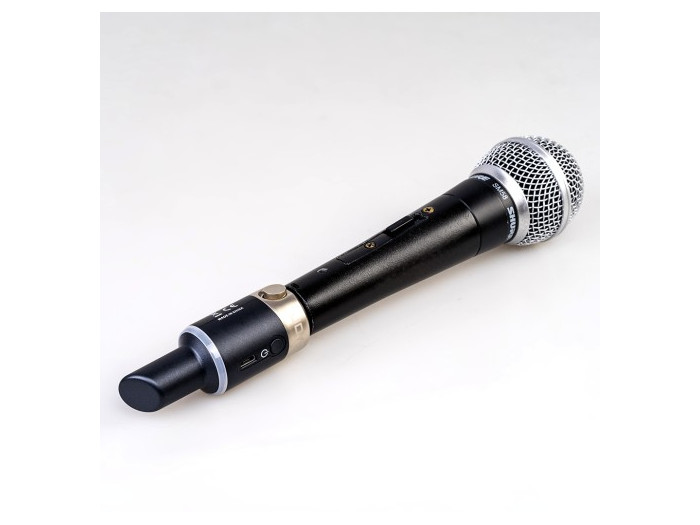

Just plug the JOYO MW-01 transmitter directly onto the end of your favourite dynamic or battery-powered condenser microphones. This can then send your signal straight to the receiver which can be plugged into the XLR input of your mixer, audio interface, or other device.

The built-in rechargeable batteries make the wireless system eco-friendly and energy efficient. You’ll be provided with a generous four hours + of performance before needing to recharge with the supplied USB cable.

The wireless microphone system operates on a frequency of 5.8GHz and has 4 channels to select from. This also makes it great for home and stage use, with a range of up to 30m uninterrupted. Any noticeable latency will be a thing of the past,  the JOYO MW-01 sends your signal in under 5ms which is faster than many other wireless units on the market.

The high-resolution 24-bit / 48kbps transmission ensure that every detail is transmitted with precision, so you will be heard with clarity without losing the nuances and dynamics. The 20Hz to 20kHz audio frequency response, you can be sure that no elements of your sound are lost.

With 4 channels to pair the transmitter and receiver to, you can also pair multiple receivers to one transmitter channel.

Features

• A built-in rechargeable lithium battery
• plug-and-play wireless system for transforming your wired mic into a wireless one
• Transmission distance > 30 meters
• 5.8GHz ISM frequency band
• 4 switchable channels
• Latency time < 5ms
• 24bit Audio Resolution with Sampling Frequency of 48K

MW-1 receiver

• Power supply mode: built-in lithium battery
• Cell capacity:3.7V 400mAh
• Reception Sensitivity:-85dBm
• Received frequency: 5.8GHz frequency
• Anti-jamming method: Frequency hopping
• Signal Distortion:<0.02%
• Gain:0 dB
• SNR:105dB
• Frequency response: 20Hz- 2OKHz
• Delay time:<5ms
• Sampling rate:24-bit }48KHz
• output lmpedance:680Q
• Connection type: XLR male port

Mw-1 transmitter

• Power supply mode: built-in lithium battery
• Cell capacity: 3.7V 400mAh
• Transmission power: 7dBm
• Working frequency: 5.8GHz frequency
• Anti-jamming method: Frequency hopping
• Frequency response: 20Hz- 20KHz
• Delay time:<5ms
• Sampling rate:24-bit /48kHz
• lnput Impedance: 3.3K
• Connection type: XLR female port

In The Box

• Transmitter
• Receiver

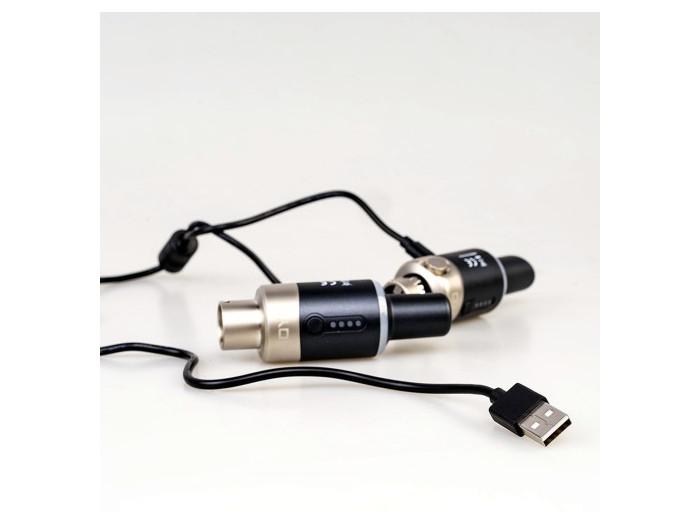

• USB dual Charging Cable
• Instructions.
