Yamaha MGX16

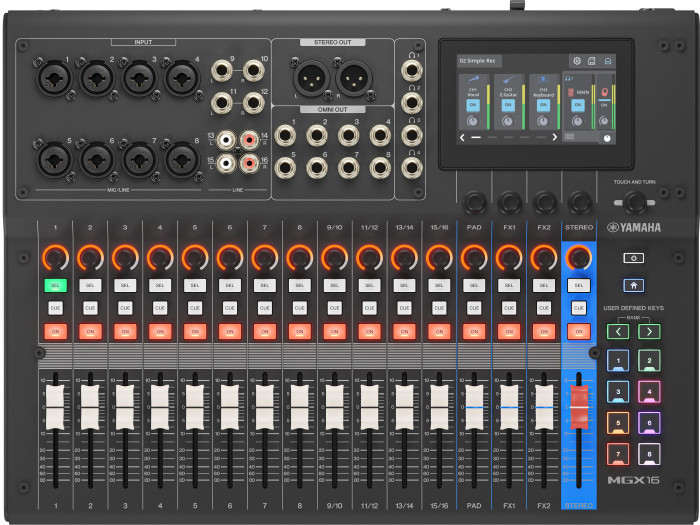

Yamaha MGX16 Digital Mixing Console

The Yamaha MGX16 is a professional digital mixer designed for live sound, podcasting, streaming, recording, music production, and installed audio systems. It combines Yamaha's renowned sound quality with powerful digital features in a compact, portable design.

A built-in USB-HDMI audio/video interface allows simultaneous audio mixing and video capture, making the MGX16 an excellent choice for musicians, sound engineers, broadcasters, and content creators.

Key Features
8 Yamaha MGX microphone preamps
8 mono and 4 stereo input channels
USB-HDMI audio/video interface
22-in/22-out USB audio interface
Bluetooth audio input
microSD multitrack recording and playback
Built-in DSP effects including EQ, Compressor, Gate, Reverb, Delay, Amp Simulator, Voice Changer, and more
Touchscreen control with Scene Recall
8 customizable sound pads
Lightweight and durable design
Ideal For
Live performances
Podcasting
Live streaming
Recording and music production
Installed sound systems
Content creation

The MGX16 combines professional sound quality, flexible connectivity, onboard effects, and advanced recording capabilities, making it a complete mixing solution for both live and studio applications.

The portable MGX16 Standard compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The MGX16 offers superb sound quality, intuitive and fast setup and operation, and professional-level features.

• 15 + 1 fader configuration (non-motorized fader)
• A 4.3-inch touchscreen with five control knobs
• Input mixing channels: 8 mono + 4 stereo + 1 Sound Pad + 2 FX return
• Busses: 1 STEREO + 8 MIX

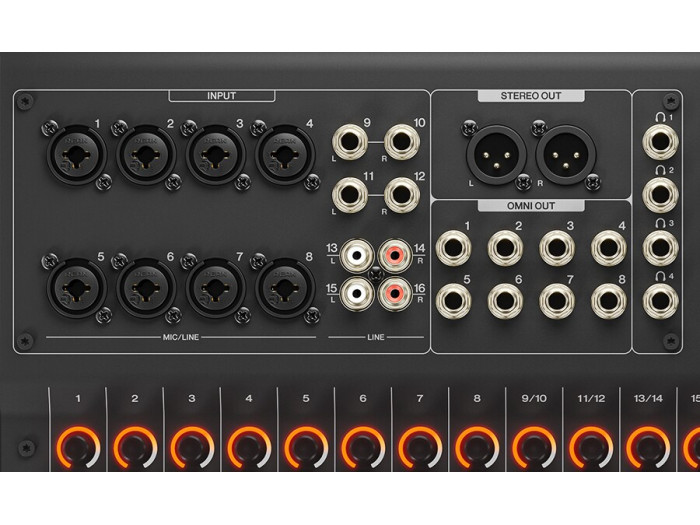

• Local Inputs: 8 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
• Local Outputs: 2 XLR, 8 TRS Phone, 4 Headphones
• USB MAIN: 22 inputs / 22 outputs (32-bit / 96 kHz)
• USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
• microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
• Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
• Built-in DSP processor for professional sound and latency-free monitoring
• Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
• Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)
