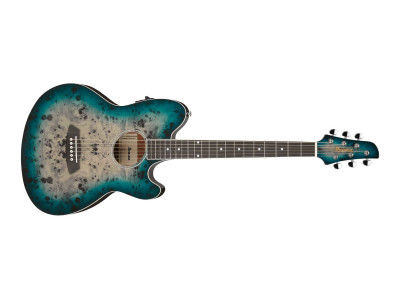

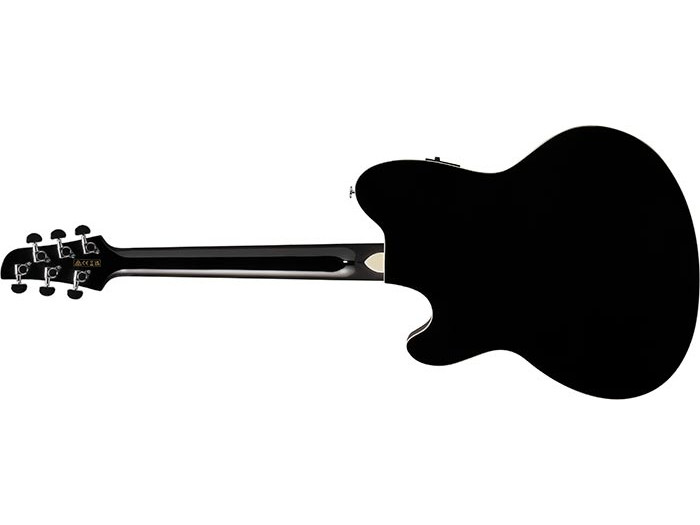

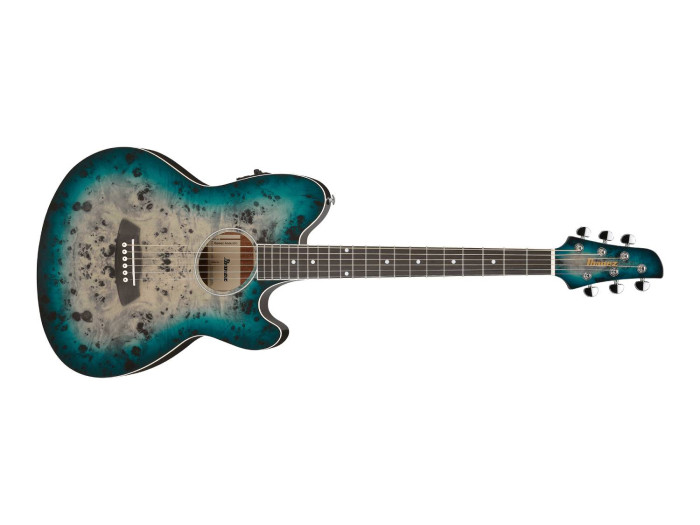

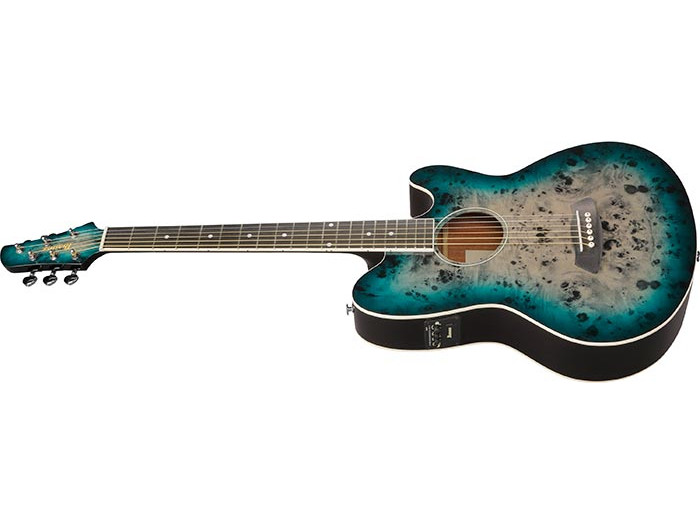

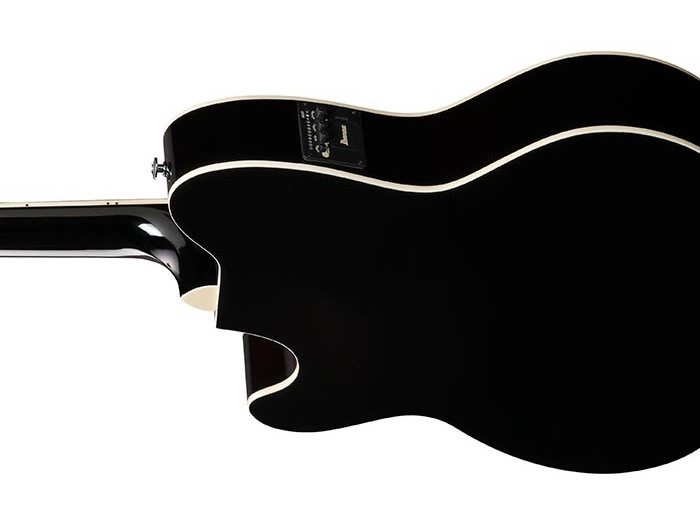

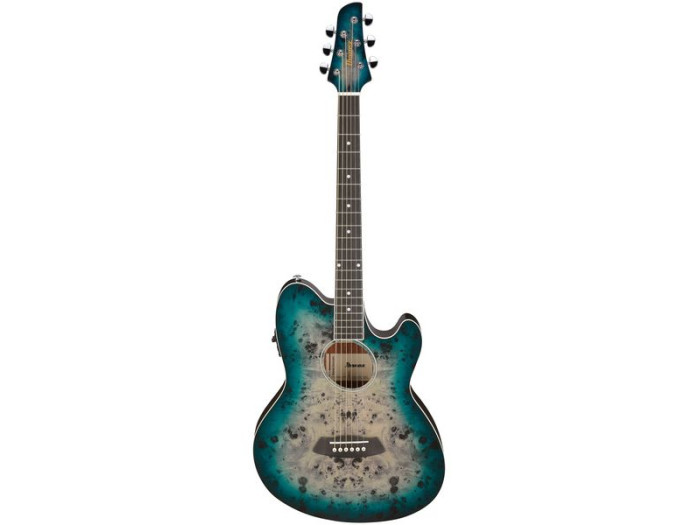

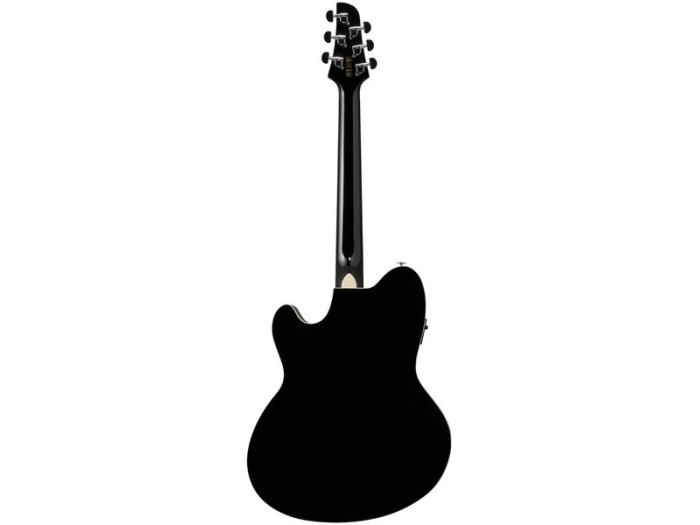

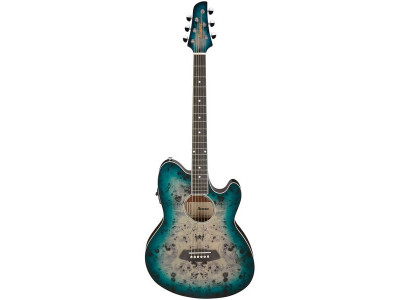

The TCY10PA features a double cutaway body with a laminated basswood top with an art grain representation of poplar burl on laminated sapele back and sides. It has an oval soundhole with a simple black and white waterslide rosette. The okoume neck has a 20-fret purpleheart fingerboard with white binding and white dot position markers. Components include a compensated plastic saddle in a purpleheart bridge with Ibanez Advantage bridge pins, a plastic nut, and chrome Ibanez tuning machines.
Body Shape: Talman Double Cutaway body
Top: Poplar Burl Art Grain (Basswood) top
Back & Sides: Sapele back & Sapele sides
Neck: TCY / Okoume neck
Fretboard: Purpleheart fretboard
Bridge: Purpleheart bridge
Inlay: White dot inlay
Soundhole Rosette: Black & White multi
Tuning Machine: Chrome Die-cast tuners
Number of Frets: 20
Bridge Pins: Ibanez Advantage™
String Gauge: .012/.016/.024/.032/.042/.053
String Space: 11mm
Factory Tuning: 1E,2B,3G,4D,5A,6E
Pickup: Ibanez Undersaddle
Preamp: Ibanez AEQ-2T preamp w/Onboard tuner
Output Jack: 1/4" output
Battery: 9V x1
