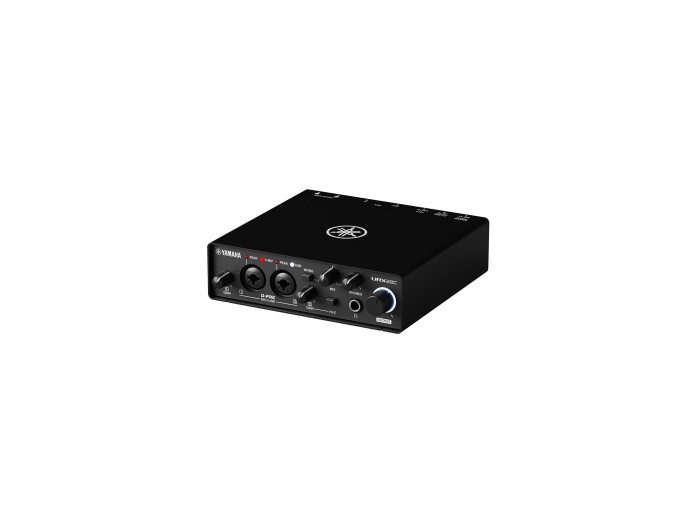

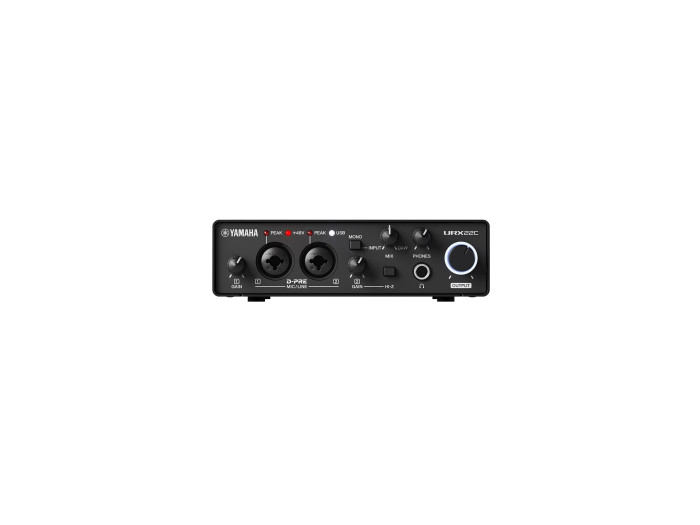

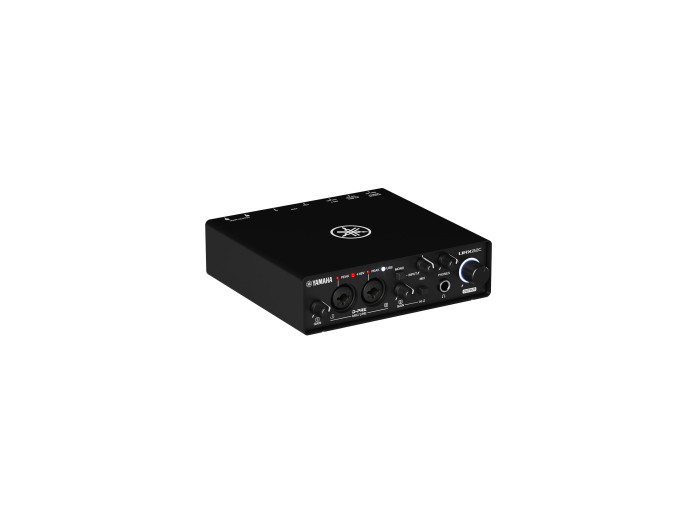

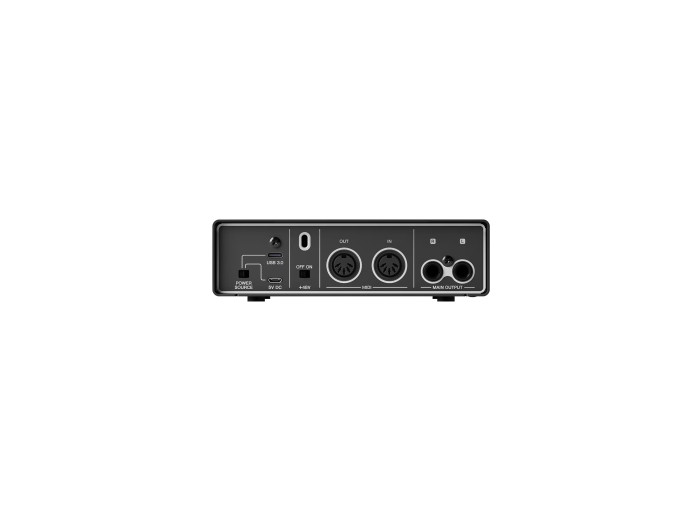

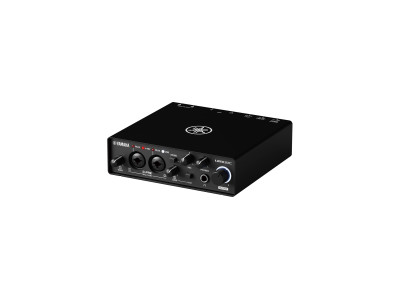

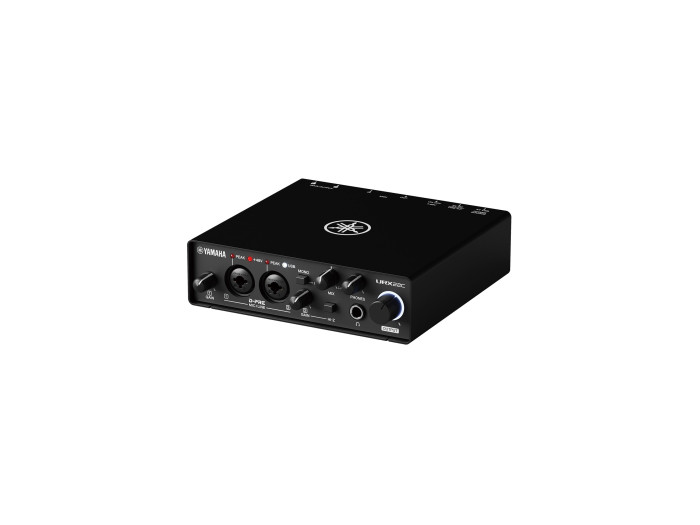

Yamaha URX22C Audio MIDI Interface

2-in/2-out USB-C Audio/MIDI Interface with 32-bit/192 kHz support, 2 combo inputs, DSP-powered mixing and effects for smooth creative workflow.

USB Type-C Audio/MIDI Interface with 32-bit integer / 192 kHz support
MIDI input and output
2 D-PRE mic preamps with +48 V phantom power and Mono switch
2 Mic/Line Combo inputs: XLR / 6.3 mm jack - Hi-Z switch on input 2 for electric guitar
2 TRS line outputs, 1 Headphones output
Input mixing channels: 2 mono + 3 stereo loopback + 1 FX
Busses: 1 MIX (Stereo) + 1 FX + 1 STEREO
Three-channel loopback enables flexible streaming and communication setups.
Effects powered by the internal DSP and Basic FX Suite give your sound a professional finish.
Latency-free DSP monitoring with FX for enhanced performance
Sturdy metal housing
Includes Cubase AI for PC, Cubasis LE DAW app for iPhone/iPad, Steinberg Plus and USB cable
USB 3.0 power supply (optional power supply for USB 2.0 required)
Dimensions (W x H x D): 159 x 47 x 159 mm (6.3" x 1.9” x 6.3”)
Net weight: 1.0 kg (2.0 lb)

Manufacturer: Yamaha
Operating system: Win / Mac OS / iOS
Application Area: Studio
Number of channels: 2x2
Number of Microphone Inputs: 2
Line ins: 2
DI In: 2
Line outs: 2
Headphone inputs: 1
Phantom Power: 48V
MIDI Interface: Yes
Maximum sampling rate in kHz: 192
Maximum sampling rate in bit: 32
Bus Powered: Optional (only with USB 3.0)
incl. Power Adapter: No
USB Version: USB 3.0
Width (mm): 159
Depth (mm): 159
Height (mm): 47
