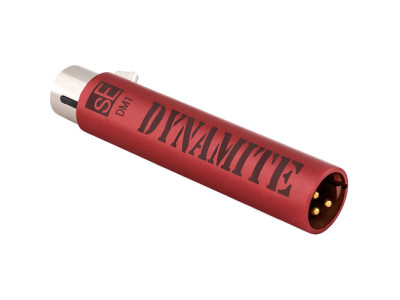

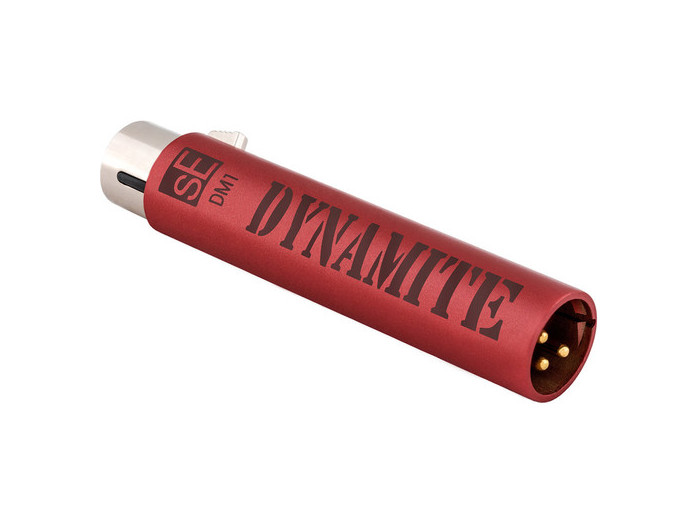

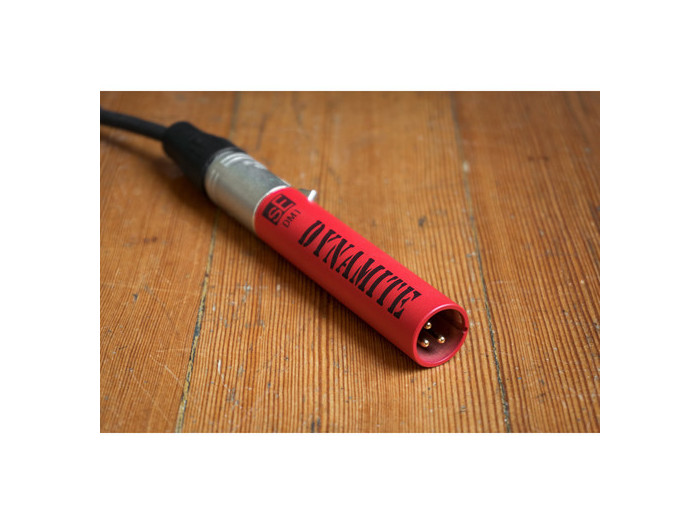

sE Electronics DM1 Dynamite Active In-Line Microphone Preamplifier

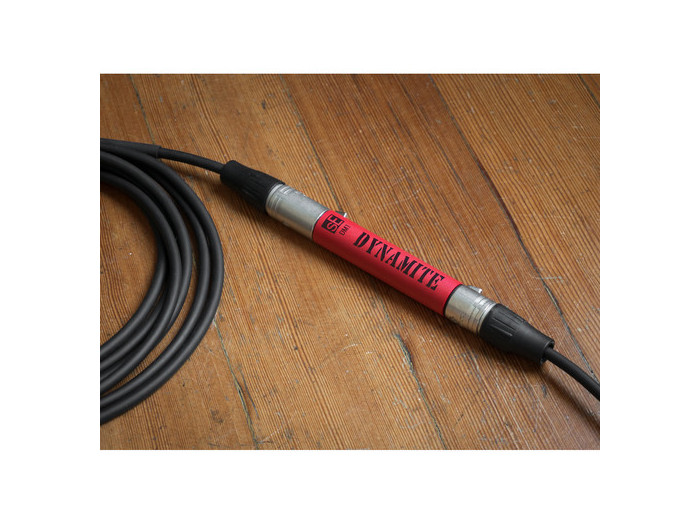

The red DM1 Dynamite Active In-Line Microphone Preamplifier from sE Electronics is an active preamp intended to be inserted between a passive ribbon or dynamic microphone and a microphone preamplifier (sold separately). It can be used to deliver a robust 28 dB of gain to boost the audio signal of a passive mic, which improves the level through the preamplifier without adding noise or coloration.

With a sophisticated Class-A design and high-grade FETs, the DM1 has a low self noise. It is built with a dedicated output buffer amplifier allowing it to drive long cable runs and reduce RF interference, buzz, and hum. Additionally, the DM1 Dynamite Active In-Line Microphone Preamplifier offers a roadworthy, slim, all-metal design, ensuring reliable operation for onstage applications in difficult environments. The unit features standard 3-pin XLR connectors and requires 48V phantom power for operation.

At a Glance

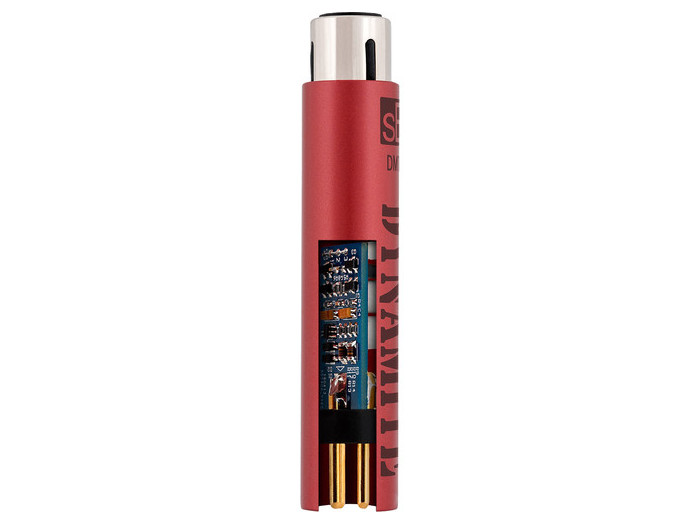

Sophisticated Class-A design and specially selected, high-grade FETs for a signal boost without coloration
Vastly lower output impedance and nearly half the noise of anything else on the market to raise any mic level with clarity
Always a consistent +28 dB regardless of the connected load to enable mics with a lower output
Provides improved level to a preamp—all without adding noise or coloration, bringing new life to your favorite passive microphones

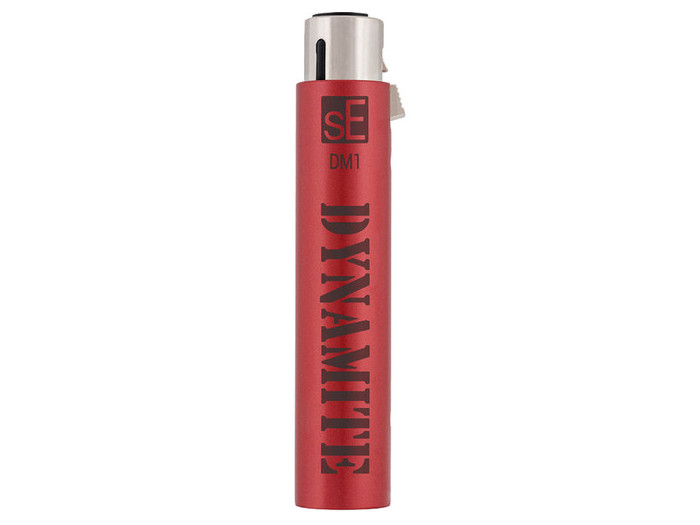

All-metal housing and premium finish ensures the DM1 can handle demanding on-tour or recording/broadcast studio lifestyles

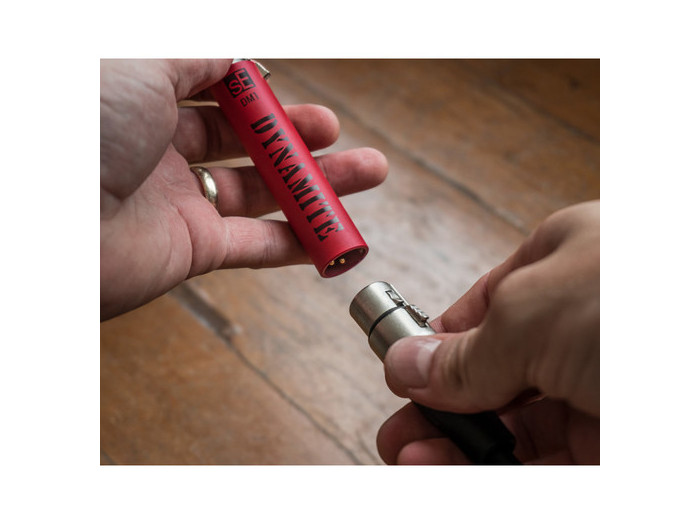

Gold plated XLR connector for loss-free reliable signal connection
Requires 48V phantom power

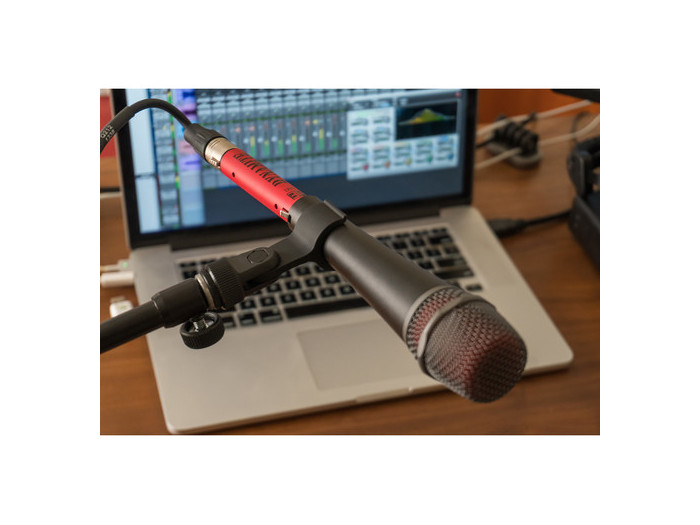

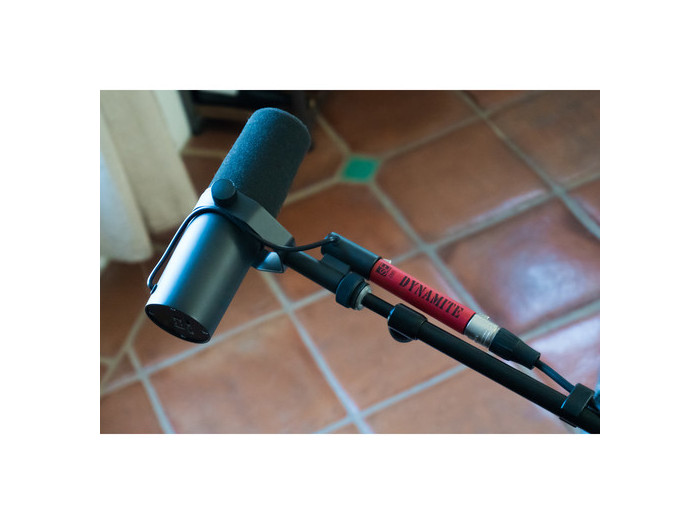

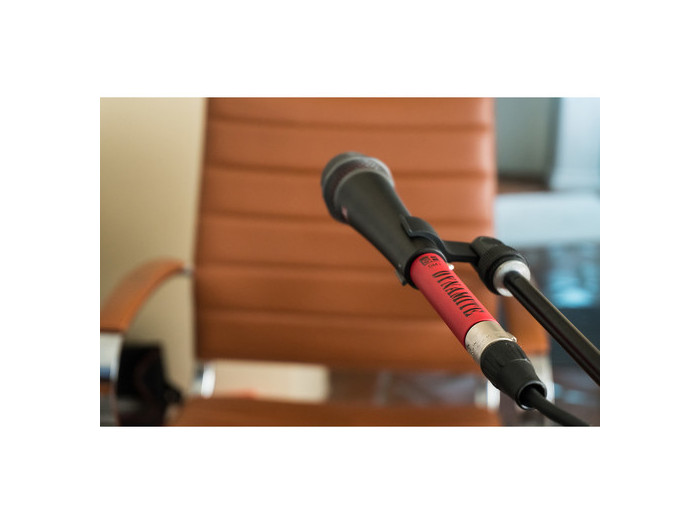

Perfect for podcasting, recording, or live sound

In-Line Accessory Type
Preamplifier
Input / Output Level
Input: Mic Level
Output: Mic Level
Number of Channels
1
Gain
+28 dB (1-Kilohm Load)
Controls
No
Inputs/Outputs
1x XLR 3-Pin Female Input
1x XLR 3-Pin Male Output
Operating Voltage
48 V (Phantom Power)
General
In-Line Accessory Type
Preamplifier
Input / Output Level
Input: Mic Level
Output: Mic Level
Number of Channels
1
Gain
+28 dB (1-Kilohm Load)
Circuit Type
Class-A FET
Controls
No
Connectivity
Inputs/Outputs
1x XLR 3-Pin Female Input
1x XLR 3-Pin Male Output
Performance
Frequency Response
10 Hz to 120 kHz -0.3 dB
Impedance
135 Ohms
Load Impedance
1 Kilohms (Minimum)
Max Output Level
+8.3 dBV (0.5% THD)
Power
Operating Voltage
48 V (Phantom Power)
Operating Current Consumption
3.0 mA
Physical
Dimensions
3.76 x 0.75" / 9.55 x 1.91 cm
Weight
2.8 oz / 79.9 g
Packaging Info
Package Weight
0.22 lb
Box Dimensions (LxWxH)
14.4 x 2.85 x 1.25"
