Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz or 514–542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.
U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

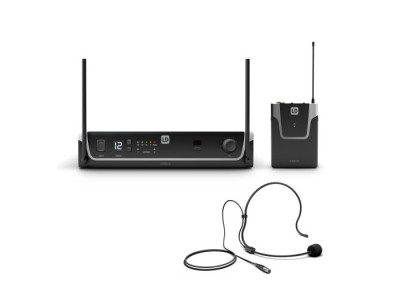

U300®-series wireless systems feature a fresh, modern design and are available as vocal sets with receiver and dynamic handheld microphone with cardioid characteristic, bodypack and headset or bodypack and lavalier microphone. The microphone characteristic can be changed using U500®-series replaceable heads. U300® instrument sets are available with bodypack and clip-on microphone for wind instruments or a double-shielded low-capacitance cable for guitars and basses.
General
Product type: Wireless Microphone Systems
Type: Set
Transmission frequency range: 655 - 679 MHz
Weight: 0,85 kg

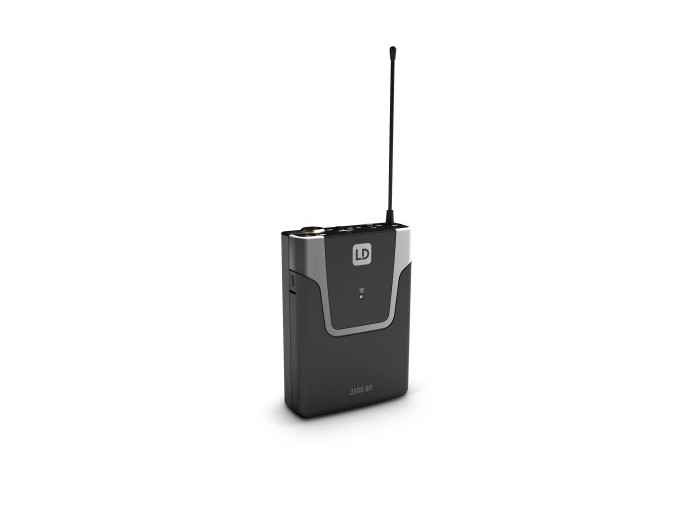

LDU306BP – LD Systems U306 BPH Bodypack Transmitter
Product type: Wireless Microphone System Accessories
Type: Bodypack
Transmission frequency range: 655 - 679 MHz
Channels: 12
Groups: 1
Inputs: Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Frequency response: 25 – 16,000 Hz
Signal-to-noise ratio: 104 dB
Rated HF output power: 10 mW
Controls: Gain (3-way switch), Power On/Off
Indicators: ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)
Power supply: 2 × AA battery
Operating time: > 10 h
Width: 65 mm
Height: 91 mm
Depth: 25 mm
Weight: 0,085 kg
Other features: Belt clip, IR frequency synchronisation, Pilot tone

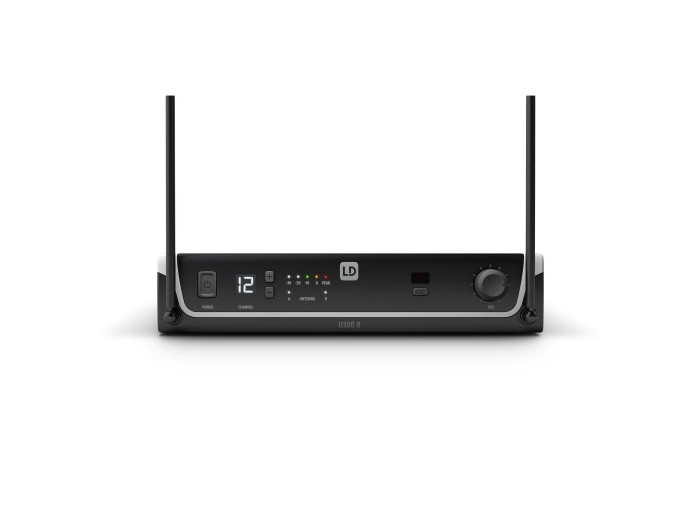

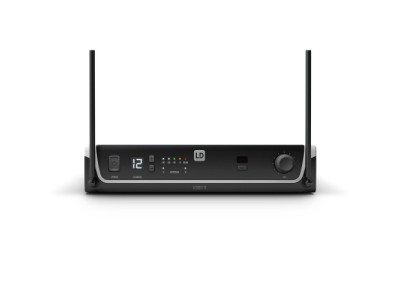

LDU306R – LD Systems U306 BPH Receiver
Product type: Wireless Microphone System Accessories
Type: Receiver
Modulation type: FM
Transmission frequency range: 655 - 679 MHz
Channels: 12
Groups: 1
Antenna inputs: 2 × fixed
Frequency response: 25 – 16,000 Hz
Signal-to-noise ratio: 104 dB
Noise reduction: Squelch
Transmission optimization: Pilot tone
Total Harmonic Distortion (THD): < 0.3 %
Controls: ASC Sync, Channel down, Channel up, Line/Instrument Level, Power, Volume
Indicators: 5 LED VU meters, Antenna A/B, LC display

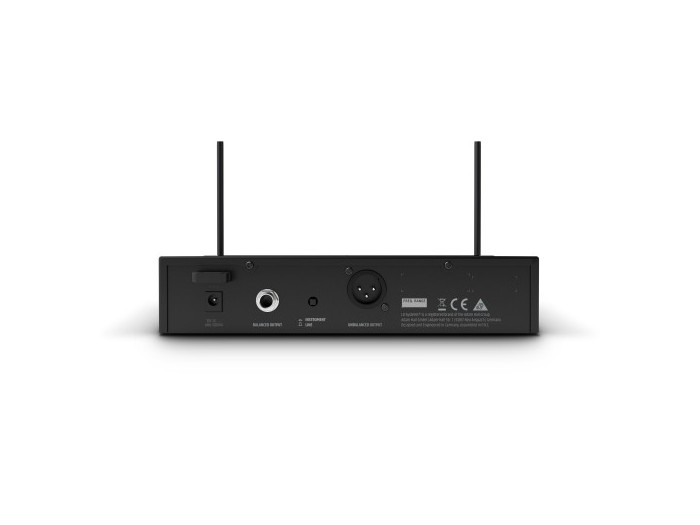

Audio output (balanced): XLR
Audio output (unbalanced): 6.3 mm jack, switchable unbalanced output level
Power supply: 12 V DC – 18 V DC (500 mA), external power supply
Width: 211 mm
Height: 43 mm
Depth: 120 mm
Weight: 0,7 kg
Max. output level: +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr)
Other features: IR frequency synchronisation
Accessories (included): 2 × AA battery, Audio cable, Power supply
LDWS100MH1 – LD Systems U306 BPH Headset Microphone (Black)
General
Directivity: Cardioid
Capsule type: Condenser
Nominal impedance: 680 Ω
Sensitivity (transfer factor): 6.31 mV/Pa
Phantom power: 5 V
Output connector type: Mini XLR female
Cable length: 1 m
Material: ABS
Frequency response (-6 dB, rel. Avg): 100 – 12,000 Hz
Colour: Black
Dimensions & Weight
Weight: 49 g
