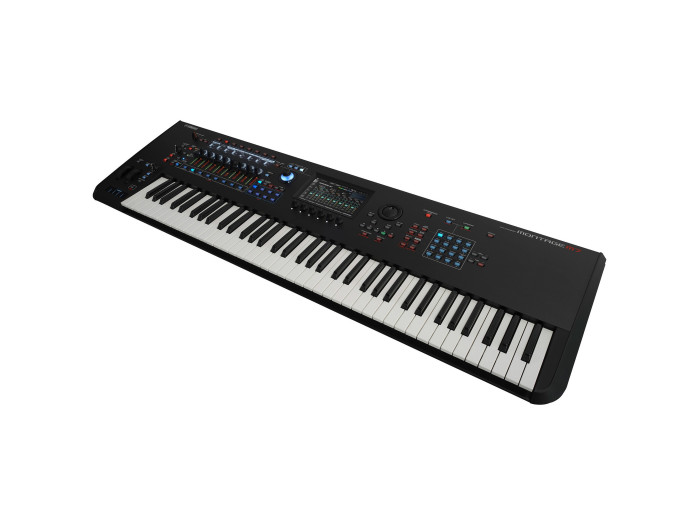

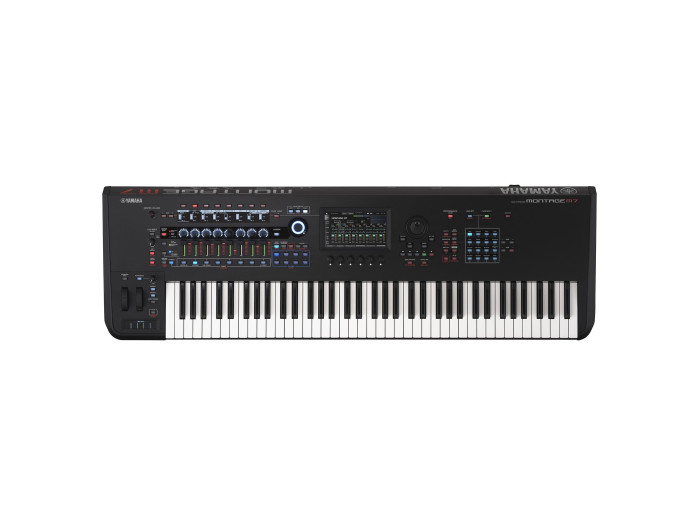

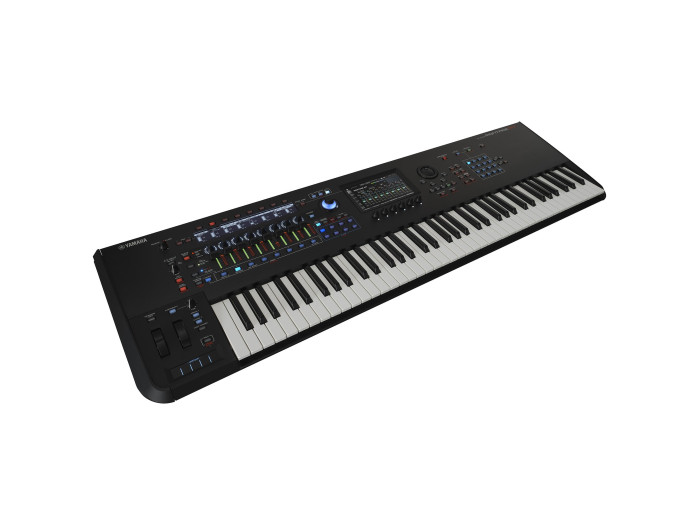

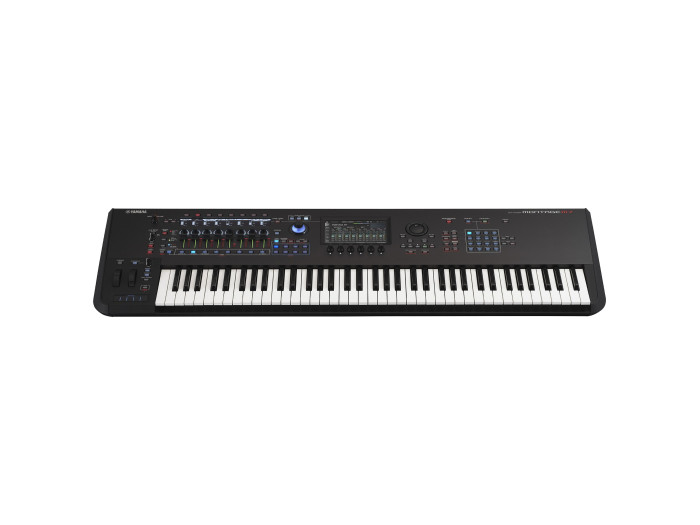

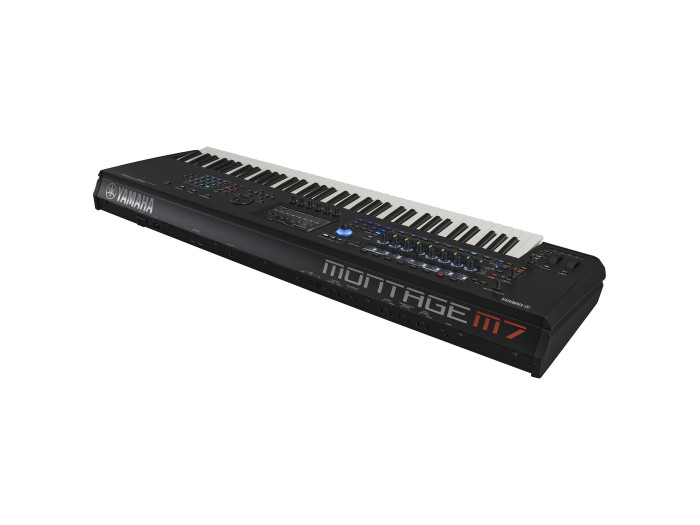

| MONTAGE M7 | | |
| Size/Weight |
| Dimensions | Width | | |
| Height | | |
| Depth | | |
| Weight | Weight | | |
| Packing Box | Width | | |
| Height | | |
| Depth | | |
| Control Interface |
| Keyboard | Number of Keys | 76 | |
| Type | FSX Keyboard | |
| Initial Touch | Yes | |
| Aftertouch | Yes (Channel After Touch) | |
| Tone Generator |
| Tone Generator | Motion Control Synthesis Engine AMW2: 128 Elements (max.), FM-X: 8 Operators, 88 Algorithms, AN-X: 3 Oscillators, 1 Noise | |
| Maximum Polyphony | AWM2: 256 (max.; stereo/mono waveforms), FM-X: 128 (max.), AN-X: 16 (max.) | |
| Multi Timbral Capacity | 16 Parts (internal), Audio Input Parts (A/D*1, USB*1) *1 stereo Part | |
| Wave | Preset: 10 GB (when converted to 16-bit linear format), User: 3.7 GB | |
| Performance | 3,369 | |
| Filter | 18 types | |
| Effects | Reverb x 12 types, Variation x 88 types, Insertion A x 88 types*2, Insertion B x 89 types*3, Master Effect x 26 type, *2 A/D part insertion x 83 types *3 Part 2~16: 88 type, A/D part insertion x 83 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands) | |
| Other |
| Controllers | Master Volume, A/D Input Gain knob, Pitch Bend wheel, Modulation wheel, Ribbon Controller, Control Slider x 8, Knob x 8, Super knob, Display knob x 6, Portament knob, Data Dial, Assignable switch x 2, MSEQ trigger switch, Portamento switch, Keyboard hold switch, Ribbon Controller hold switch | |
| Display | 7" TFT Color Wide VGA LCD touch screen, 512 x 64 Full-dot LCD | |

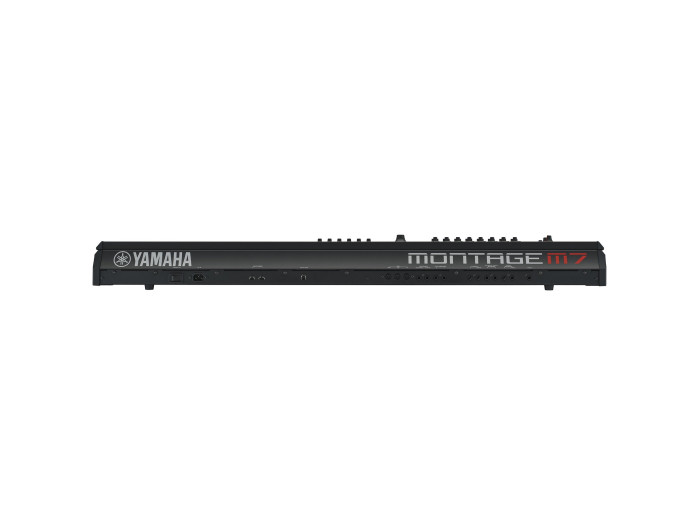

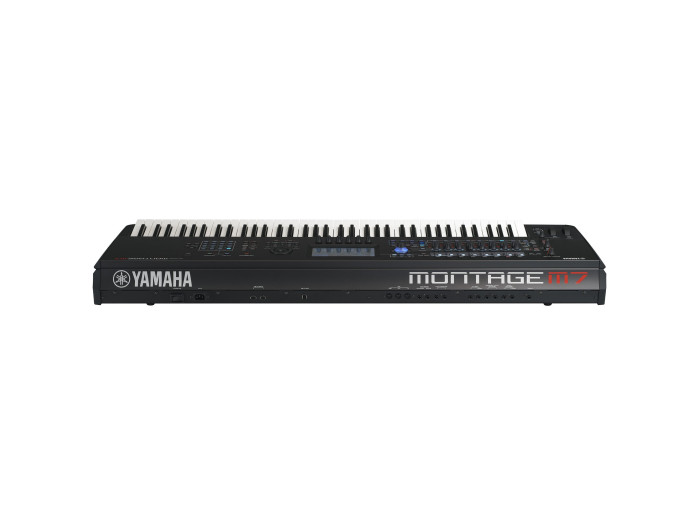

| Connectors | [USB TO DEVICE] x 2, [USB TO HOST], MIDI [IN]/[OUT]/[THRU], FOOT CONTROLLER [1]/[2], FOOT SWITCH [SUSTAIN]/[ASSIGNABLE], OUTPUT (BALANCED) [L/MONO]/[R] (6.3 mm, Balanced TRS jacks), ASSIGNABLE OUTPUT (BALANCED) [L]/[R] (6.3 mm, Balanced TRS jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks) | |
| Power Consumption | 36 W | |
| Accessories | AC Power cord, Quick Guide, Cubase AI Download Information, Expanded Softsynth Plugin for MONTAGE M Download Information | |
| Live Sets | Preset: 128 and more, User: 2,048 | |
| Performance Recorder |
| Note Capacity | 1 Song/Pattern: Approx. 130,000 notes, Store area: Approx. 520,000 notes (Pattern); approx. 520,000 notes (Song) | |
| Note Resolution | 480 ppq (parts per quarter note) | |
| Tempo (BPM) | 5 – 300 | |
| Sequence formats | MONTAGE original format, SMF formats 0, 1 | |
| Arpeggio | Parts: 8 Parts simultaneous (max.), Preset: 10,922 types or more, User: 256 types | |
| Sequencer |
| Patterns | 128 patterns | |
| Pattern tracks | 16 Sequence tracks | |
| Pattern Recording type | Real time replace, Real time overdub | |
| Songs | 128 songs | |
| Song tracks | 16 Sequence tracks, Tempo track, Scene track | |
| Song recording type | Real time replace, Real time overdub, Real time punch in/out | |
| Functions |
| USB audio interface | [Sampling Frequency = 44.1 kHz] Input: 6 channels (3 stereo channels), Output: 32 channels (16 stereo channels) [Sampling Frequency = 44.1 kHz - 192 kHz] Input: 6 channels (3 stereo channels), Output: 8 channels (4 stereo channels) | |
