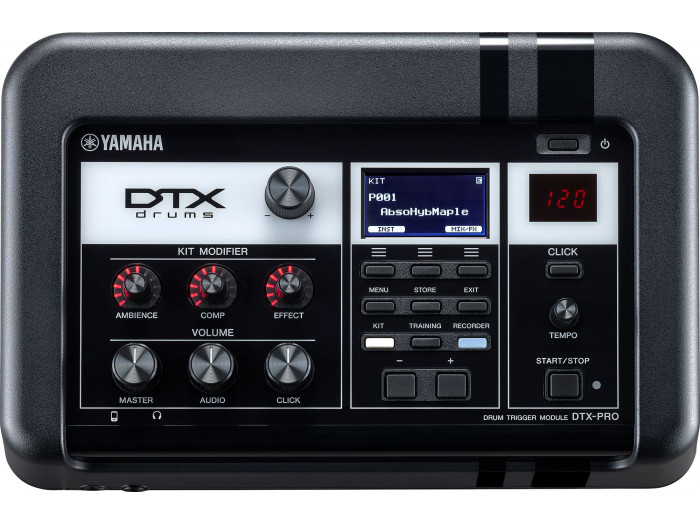

| Tone generator |

            | Dimensions | Width | 303 mm (11-15/16 in) |

            | Height | 196 mm (7-11/16 in) |

            | Depth | 66 mm(2-5/8 in) |

            | Weight | 1.5 kg (3 lb 5 oz) |

            | Maximum Polyphony | 256 notes |

            | Effects | For each Inst: EQ / Comp / Transient / Insertion   (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master   Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used   only for specific Inst. |

            | Drum kits | Preset: 40 Kits, User: 200 Kits |

            | Voices | 712 |

            | Click |

            | Click Sets | 30 |

            | Tempo | 30 to 300 BPM, Tap Tempo supported. |

            | Time signatures | 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16 |

            | Subdivisions | Accents, quarter notes, eighth notes, sixteenth   notes, and eight-note triplets |

            | Others | Individual click volume control, wav import, timer |

            | Training |

            | Types | 10 |

            | Songs | Preset: 37 songs, User: 1 song |

            | Audio Files |

            | Import limit | 1,000 files |

            | Maximum loadable sample time | 760 seconds (44.1 kHz, 16 bit, mono), 380 seconds   (44.1 kHz, 16 bit, stereo) |

            | sample format | WAV |

            | Recorder |

            | Recording time | Internal   memory | Maximum of 90 seconds |

            | USB flash drive | Maximum of 90 minutes per file |

            | Format | Record/playback: WAV (44.1 kHz, 16 bit, stereo) |

            | Other |

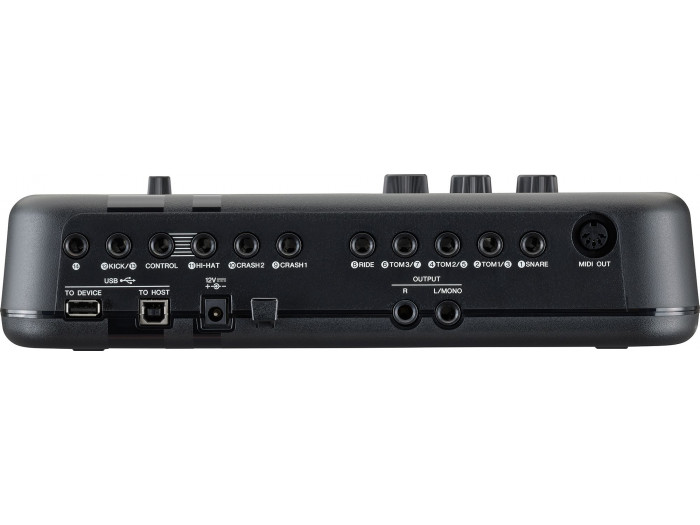

            | Connectors | DC   IN | DC IN (+12V) |

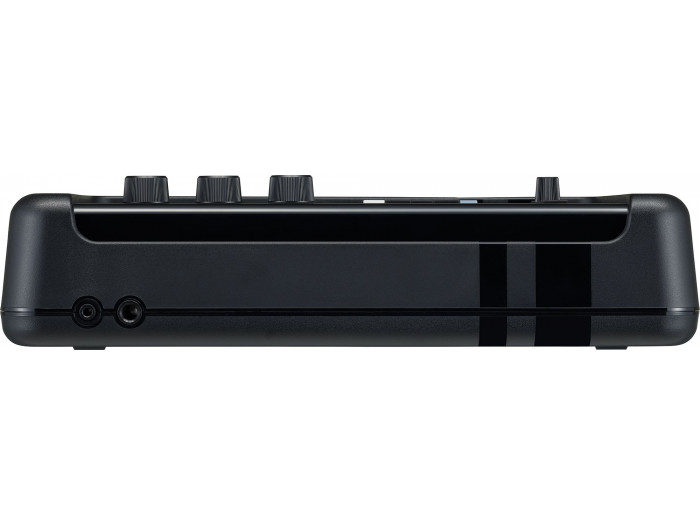

            | Headphones | Headphones (standard stereo phone jack x 1) |

            | AUX IN | AUX IN (stereo mini jack x 1) |

            | Output | OUTPUT L/MONO, R (standard phone jack, one for each) |

            | USB | USB TO DEVICE, USB TO HOST |

            | MIDI | MIDI OUT |

            | Trigger Input | Trigger inputs 1, 14: (Standard stereo phone, L:   Trigger, R: Rim switch / Trigger), 2/3, 4/5, 6/7, 12/13: (Standard stereo   phone, L: Trigger, R: Trigger), 8, 9, 10, 11: (Standard stereo phone, L:   Trigger, R: Rim switch) *Maximum 14 of pads to be connected (when Y-cable is   used) |

            | Display | Full Dot LCD (128×64 dot) |

            | Accessories | AC adaptor (PA-150 or an equivalent recommended by   Yamaha)*2, Owner’s Manual, module holder, module holder wing bolts (x 4),   Cubase AI Download Information *2 May not be included depending on your area.   Check with your Yamaha dealer. |
