FLEXIBLE AND EXPANDABLE

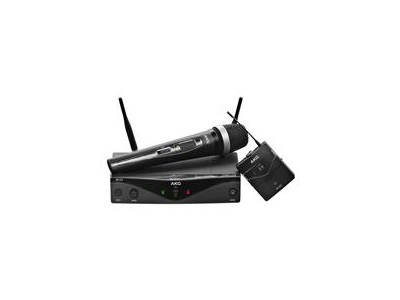

For Live Sound, Presentations and Installations WMS420 Presenter Set is a professional multi-channel wireless microphone system. It includes the HT420 analog high-performance wireless handheld transmitter features a dynamic microphone capsule for demanding vocal performances, the PT420 wireless bodypack transmitter, the SR420 wireless stationary receiver and a Clip-on microphone C417 L.
General Information
ADI Part Number A4-3414H0001
Brand Name AKG
Manufacturer Harman International Industries, Inc
Manufacturer Part Number 3414H00010
Product Model WMS420
Product Type Wireless Microphone System
Battery Information
Batteries1 x AA
Battery ChemistryAlkaline
Battery Run Time8 Hour
Controls/Indicators
Status IndicatorsA battery-status indicator shows red before the battery goes dead, allowing the user full control of performance time.
Interfaces/Ports
Interfaces/Ports
1 x Antenna - Receiver
1/4" Phono Jack Audio Out - Receiver
3-pin Mini XLR Audio In - Transmitter
3-pin XLR Audio Out - Receiver
BNC Socket - Receiver
XLR Audio Out - Receiver
Miscellaneous
Additional InformationPT420
PROFESSIONAL WIRELESS BODYPACK TRANSMITTER
The PT420 is an analog high-performance wireless body-pack transmitter in a small, rugged housing. A professional mini XLR audio connector makes the body-pack compatible with all kinds of guitars, basses, instrumental pickups and headsets. It is designed for stress-free work on small stages, in houses of worship and in conference rooms.
The PT420 provides a gain control for perfect adjustment of the input volume and a noiseless on/off/mute switch. A battery-status indicator shows red before the battery goes dead, allowing the user full control of performance time. The package includes a rugged guitar cable.
HT420
PROFESSIONAL WIRELESS HANDHELD TRANSMITTER
The HT420 analog high-performance wireless handheld transmitter features a dynamic microphone capsule for demanding vocal performances. The cardioid polar pattern ensures maximum gain before feedback and lets your voice cut through any mix. Its spring-steel wire-mesh front grille protects the transducer from the hardships of on-stage use.
The HT420 provides a gain control for perfect adjustment of the input volume and a noiseless on/off/mute switch. A battery status indicator shows red before the battery goes dead, allowing the user to fully control his performance time.
SR420
PROFESSIONAL WIRELESS STATIONARY RECEIVER
The SR420 analog high-performance space diversity wireless receiver provides maximum ease of use with different channel presets up to eight channels. It is perfect for instrumental and vocal performances in small clubs as well as for use in houses of worship and in conference rooms.
The SR420 provides an audio clipping and RF signal LED for easy monitoring of systems status. Best audio signal output is provided via both a professional XLR and a 1/4" jack connector. For worldwide use, the receiver comes with a universal, switched mode power supply kit.
NO MORE CABLESfor Live Sound, Presentations and Installations The SR420 analog high-performance space diversity wireless receiver provides maximum ease of use with different channel presets up to eight channels. It is perfect for instrumental and vocal performances in small clubs as well as for use in houses of worship and in conference rooms.
The SR420 provides an audio clipping and RF signal LED for easy monitoring of systems status. Best audio signal output is provided via both a professional XLR and a 1/4" jack connector. For worldwide use, the receiver comes with a universal, switched mode power supply kit.
The SR420 comes with two external and detachable antennas on the rear side and BNC connectors at standard 50ohms.
Package Contents
1 x Bodypack Transmitter PT420
1 x Stationary Receiver SR420
1 x Clip-on Microphone C417 L
1 x Windscreen W407
2 x Receiver Antennas
1 x AC Adapter
1 x AA Size Battery
Physical Characteristics
Weight (Approximate)
13.16 oz - Receiver
7.55 oz
7.55 oz - Transmitter
