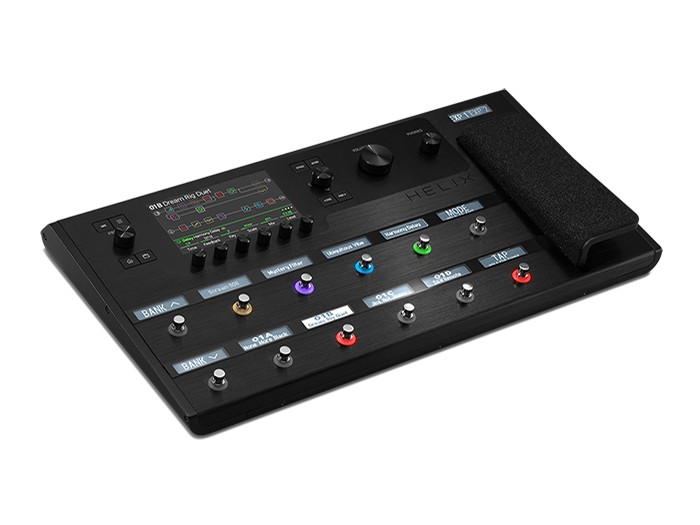

Line 6 Helix

The Line 6 Helix multi-effects floorboard processor reaches far beyond anything you've ever experienced. It can be a great addition to your rig, a streamlined controller for your existing system, or an incredible-sounding guitar interface for recording in the studio — it can even replace your entire effects setup! Equipped with Line 6's new HX modeling engine, Helix will let you hear brand-new models of modern and vintage amps, cabs, mics, and effects — all designed to sound and feel amazing. And your rig-integration options are limitless, with Helix's astoundingly comprehensive I/O and routing capabilities. Line 6 has long been at the front of the modeling revolution, and Helix is the professional guitar processor Line 6 was destined to make.

Pedal Type         Multi-FX

Number of Effects           70

Amp Modeling Yes

Number of Models         45 x Amps, 30 x Cabs, 16 x Mics

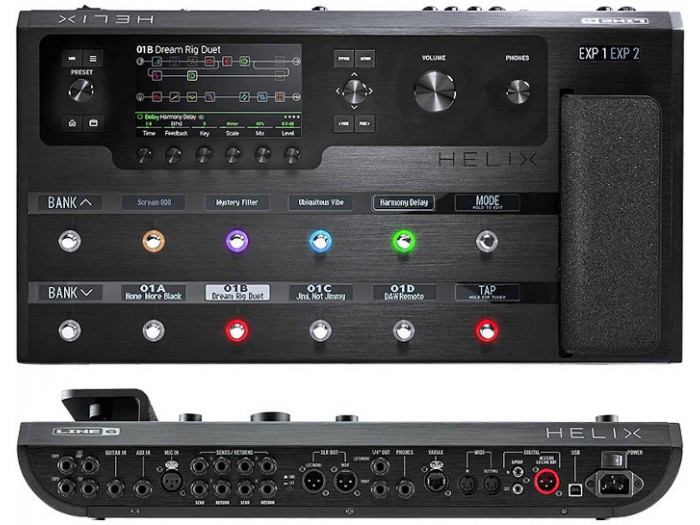

Analog Inputs    1 x XLR (Mic), 1 x 1/4" (Guitar), 1 x 1/4" (Aux), 4 x 1/4" (Ext Control), 4 x 1/4" (Return)

Analog Outputs                2 x XLR, 2 x 1/4", 1 x 1/4" (Headphones), 4 x 1/4" (Send)

Digital Inputs     1 x S/PDIF

Digital Outputs 1 x S/PDIF, 1 x XLR (AES/EBU)

MIDI I/O              In, Out/Thru

Computer Connectivity                USB

Height  3.58"

Width   22.05"

Depth   11.85"

Weight 6.62 kg
