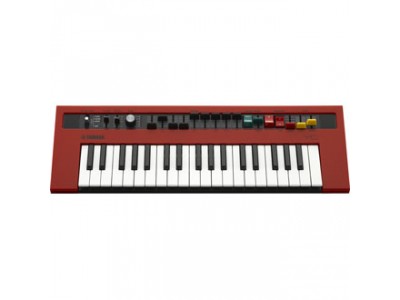

Yamaha Reface YC

Sound

Combo Organ Sound Engine with five vintage organ Waves

The five organ Waves are:

H, American tonewheel organ

V, British transistor organ

F, Italian transistor organ

A, Japanese transistor organ

Y, Yamaha YC-45D

Organ Control

All the controls needed to play organ: Drawbars, Percussion, Vibrato and Rotary Speaker speed control with four values: fast, slow, stop and off.

Organ effects

Add character with two retro organ effects: Distortion and Reverb

128-note polyphony

Ensures dropout-free performance

Keyboard

Based on the FS action found on the flagship Motif XF, HQ (High Quality) Mini Keys provide premium feel and response for fast, accurate and natural playing.

Speakers

2W 3cm stereo speaker system lets you play any place, any time

Specially designed bass reflex port technology enhances bass response for full, rich sound

Battery powered

Uses six "AA" batteries with five hours of life

USB

USB "TO HOST" allows MIDI connectivity to your USB-equipped computer or iOS device

Audio output

Dual 1/4"unbalanced line outputs provide connection to mixers, audio interfaces, DI boxes and more

Audio input

A 3.5mm aux line input lets you connect and hear mobile devices, tablets and more through the instrument

Soundmondo

Soundmondo is a free sound sharing community that lets you discover, create and share reface Voices and Set Lists using Google Chrome any place, any time you’re online.

Powered by Web MIDI, Soundmondo is simple to use - just connect reface to Chrome and you’re ready to create or start browsing.

Amplifiers and Speakers

Amplifiers           2 W x 2

Speakers             3 cm x 2

Power Supply

Power Consumption      6 W (When using PA-130 power adaptor)

Battery Life         Approximately 5 hours

Auto Power Off                Yes

Power Supply    Adaptors             PA-130 or an equivalent recommended by Yamaha

Batteries              Six “AA” size batteries or Ni-MH rechargeable batteries

Accessories

Included              AC adaptor*, MIDI breakout cable, Owner’s Manual, Warranty* *May be included depending on your locale

Voices

Number of types             5 Organ types

Effects  Rotary Speaker, Distortion, Reverb

Size/Weight

Dimensions        Width    530 mm (20 7/8")

Height   60 mm (2 3/8")

Depth   175 mm (6 7/8")

Weight 1.9 kg (4 lbs, 3 oz) (not including batteries)

Keyboard

Number of Keys               37 keys

Type      HQ mini (High-Quality mini)

Initial Touch        Yes

Tone generation

Maximum Polyphony     128

Engine  AWM (Organ Flutes)

Connectivity

DC IN     DC IN (12 V) jack

Headphones      PHONES (6.3 mm, stereo phone jack)

MIDI      MIDI (mini-DIN IN/OUT)

AUX IN AUX IN (3.5 mm, mini stereo phone jack)

OUT PUT              L/MONO, R (6.3 mm, TS phone jack, unbalanced)

USB TO HOST     USB (TO HOST)

Pedal     Type      FOOT CONTROLLER: FC7 (optional) (to adjust the volume)
