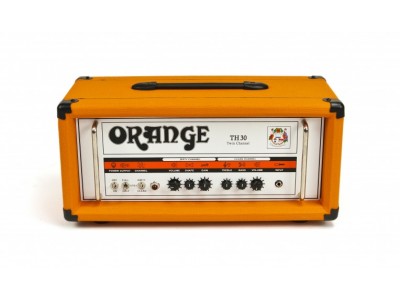

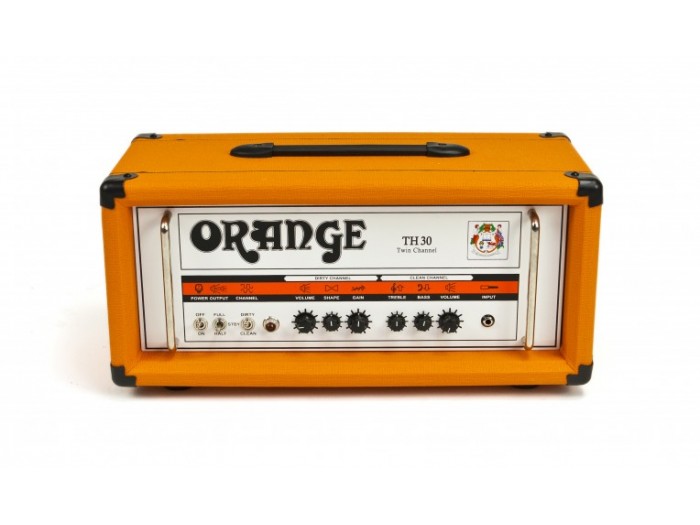

Orange TH30 Head

CLEAN THROUGH TO HIGH GAIN TONE

This guitar amp head features the cleanest and the highest gain amp tones. Go from sparkling Fender-like tones to metal and beyond with the twist of only 3 knobs per channel. The TH30′s Clean Channel features a Gain, Shape and Master Volume. The shape control is an EQ control facilitating a variety of tones from classic rock through to scooped metal with all variations in between. The power section of the TH30 is a quartet of EL84 output valves and is rated at 30 Watts Class A. There is also the addition of a valve driven effects loop.

Features

Foot switchable twin channel, all valve, valve FX loop

Controls

Dirty Volume, Shape, Gain. Clean Treble, Bass, Volume

Output Power (Heads and Combos)

7 , 15(2 valve), 15(4 valve) and 30 Watts

Power Handling (Cabinets)

NA

Valves (Heads and Combos)

Power amp: 4 xEL84

Preamp: 4 x Ecc83/12ax7

FX Loop: 1 x Ecc81/12at7

Speaker Output options (Heads)

1 x 16 Ohm cabinet connected to the 16 Ohm output

1 x 8 Ohm cabinet connected to one of the 8 Ohm outputs

2 x 16 Ohm cabinets each connected to one of the 8 Ohm outputs

Speakers (Combos and Cabinets)

NA

Impedance (Cabinets)

NA

Extension Cabinet Options (Combos)

NA

Unboxed Dimensions

H (cm) 27

H (in) 10.63

W (cm) 55

W (in) 21.65

D (cm) 24

D (in) 9.45

Unboxed Weight

15.55 KG
