Naziv proizvoda

RCF ND 350

RCF ND 350
[klikni na sliku za uvećan prikaz]
Naša cena:
9.181,00 DIN
U cenu je uračunat iznos PDV-a.

Cena je za Komad

Korpa

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

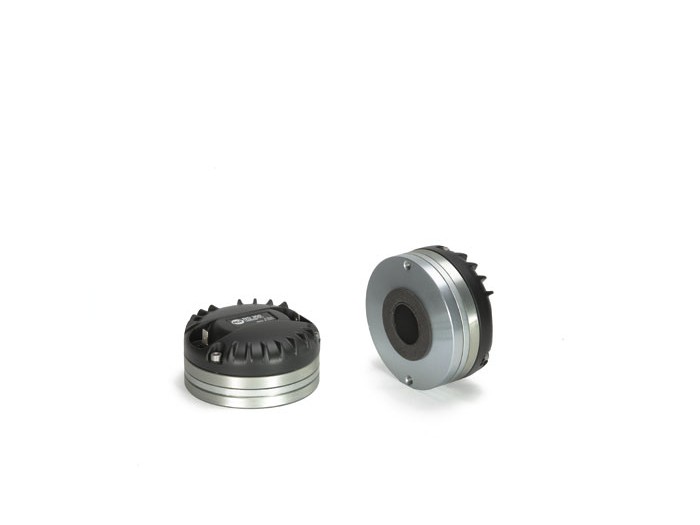

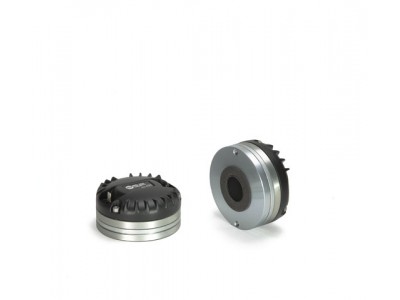

 The ND350 is a high frequency performance 1.75-inch diaphragm compression driver with a 1-inch exit throat. The diaphragm is precision formed from polyester.
Voice coil assembly is designed using high temperature kapton former and rectangular profile copper clad aluminium wire assembled using advanced specially formulated adhesives.



  • 1.75-inch Diaphragm, 1-inch Exit Throat / Pure Titanium Compression Driver
  • 100W continuous program power handling
  • Frequency range: 1200Hz - 20kHz
  • 2-slot optimized geometry phase plug
  • Polyester diaphragm
  • Vented suspension system
  • Compact neodymium magnet assembly



Karakteristike:



  • Exit Throat Diameter: 25.4 / 1.0 mm/inch
  • Rated Impedance: 8 Ω
  • Power handling capacity continuous program1: 100 W AES
  • Power handling capacity AES2: 50 W AES
  • Sensitivity: 109 dB
  • Frequency Range: 1200 Hz ÷ 20000 Hz
  • Diaphragm Material: Polyester
  • Suspension Material: Polyester
  • Suspension Design: Flat
  • Minimum Impedance: (at 4.5kHz) 6.5 Ω
  • Voice Coil Diameter: 44.4 / 1.75 mm/inch
  • Voice Coil Material: Edgewound aluminium
  • Voice Coil Former Design: Straight kapton
  • Number of layers: 1 - outside
  • BL Factor: 7.5 T · m
  • Flux Density: 1.8 T
  • Phase Plug Design: 2 slots
  • Phase Plug Material: Composite
  • Magnetics: Nedymium
Mounting information
  • Overall diameter: 85 / 3.3 mm/inch
  • Overall height: 43 / 1.8 mm/inch
  • Mounting 4 × 5 mm holes at 90°: 76.2 / 3.0 mm/inch
  • Net weight: 0.8 / 1.8 kg/lbs
Shipping information
  • Package height: 8.5 / 3.3 mm/inch
  • Package width: 10 / 3.9 mm/inch
  • Package depth: 10 / 3.9 mm/inch
  • Shipping weight: 1 / 2.2 kg/lbs
