Naziv proizvoda

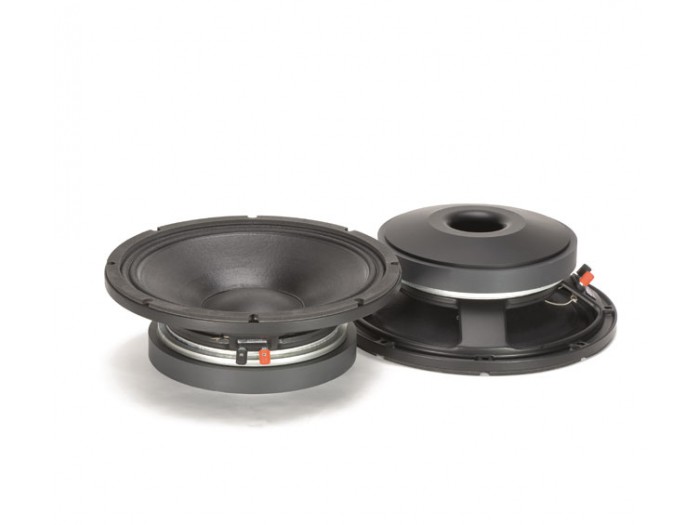

RCF Woofer L12P110K

RCF Woofer L12P110K
[klikni na sliku za uvećan prikaz]
Naša cena:
19.415,00 DIN

Cena je za Komad

Korpa

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

 Very high efficiency and low distortion are special features of this mid-bass transducers.

Special treatment are applied to cone surface and surround for optimum dampening.



  • 4-inch, fiberglass inside/outside copper voice coil
  • 1000W continuous program power handling
  • 101 dB Sensitivity
  • 60 Hz – 2 kHz Frequency range
  • M-roll damped surround
  • Corrugated straight damped cone



Karakteristike:



  • Nominal Diameter: 300 / 12 mm/inch
  • Rated Impedance: 8 Ω
  • Program Power: 1000 W AES
  • Power handling capacity: 500 W AES
  • Sensitivity: 101 dB
  • Frequency Range: 60 Hz ÷ 2000 Hz
  • Effective Piston Diameter: 260 / 10.2 mm/inch
  • Max Excursion Before Damage (peak to peak): 48 / 1.9 mm/inch
  • Minimum Impedance: 7.6 Ω
  • Voice Coil Diameter: 100 / 4 mm/inch
  • Voice Coil Material: Copper
  • Voice Coil Winding Depth: 10.5 / 0.4 mm/inch
  • Number of layers: 2
  • Kind of layer: inside / outside
  • Top Plate Thickness: 9 / 0.35 mm/inch
  • Cone Material: No pressed pulp
  • Cone Design: Curved
  • Surround Material: Polycotton
  • Surround Design: M - roll
Thiele/Small Parameters
  • Resonance frequency: 44 Hz
  • DC resistance: 5.6Ω
  • Mechanical factor: 4.3
  • Electrical factor: 0.14
  • Total factor: 0.13
  • BL Factor: 25 T · m
  • Effective Moving Mass: 55 g
  • Equivalent Cas air load: 98 liters
  • Effettive piston area: 0.053
  • Max. linear excursion (mathematical): 3.0 mm
  • Voice - coil inductance @ 1kHz: 1.0 mH
  • Half-space efficiency: 5.75%
Mounting information
  • Overall Diameter: 312 / 12.3 mm/inch
  • Bolt Circle Diameter: 293-296 / 11.5-11.6 mm/inch
  • Bolt Hole Diameter: 7 / 0.3 mm/inch
  • Front Mount Baffle Cut-out: 285 11.3 mm/inch
  • Rear Mount Baffle Cut-out: 283 / 11.2 mm/inch
  • Depth: 115 / 4.5 mm/inch
  • Volume occupied by the driver: 2.8 / 0.09 liters/ft³
  • Net Weight: 11.2 / 24.6 kg/lbs
Shipping information
  • Shipping weight: 11.9 / 26.2 kg/lbs
