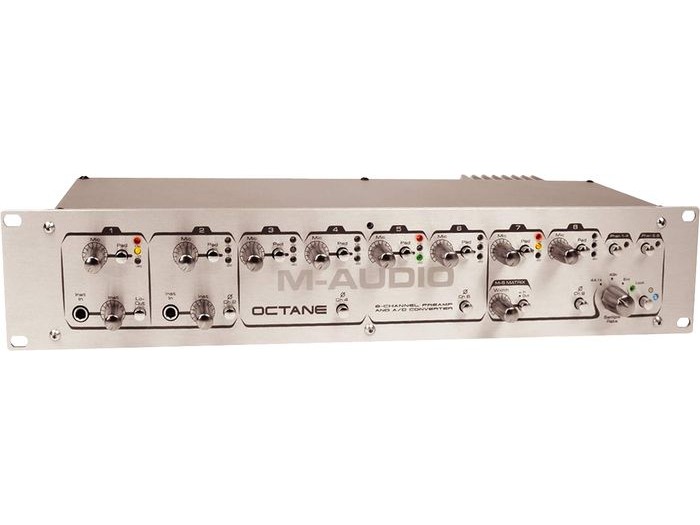

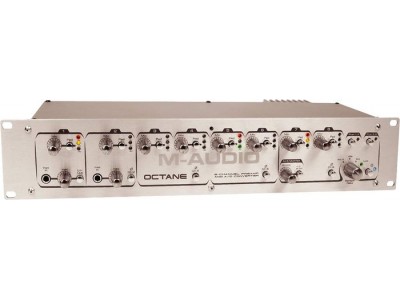

M-Audio Octane

The M-Audio Octane 8-Channel Mic Preamp with ADAT Lightpipe adds connectivity and studio-quality preamps to your recording rig. Excellent for input-hungry miking applications. 2 mic/instrument channels provide input for guitars, basses, keyboards, and other instruments. Enables sophisticated stereo miking. Analog preamp direct outputs on every channel. ADAT lightpipe output. Word clock lets you sync multiple units.

• 2 channels with mic/instrument preamps (front-panel 1/4")
• ADAT Lightpipe output (TOSlink)
• 24-bit audio resolution
• Selectable sample rate (44.1k and 48k) and external sync
• Word clock I/O (75-ohm BNC) for synchronization to other digital devices
• Line inputs are half-normalled as insert ins or standalone A/D
• M-S matrix encoding on channels 7 & 8 with width control
• Phase reverse switches on even channels
• Low-cut filter on channel 1 (-12dB/oct @ 80Hz)
•
• 8 channels, each with:
• XLR mic input
• 1/4" TRS line input
• 1/4" preamp out
• 3-segment LEDs
• 20dB pad
• Phantom power with indicator (groups 1-4, 5-8)
