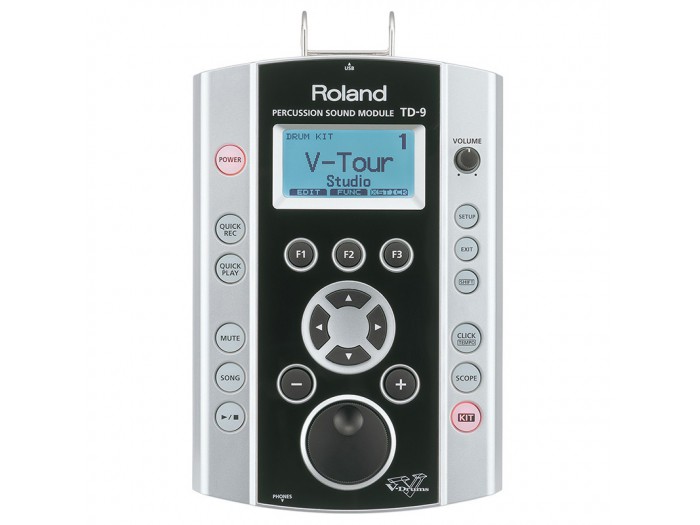

Roland TD-9 Percussion Sound Module **

The TD-9 is the anchor of Roland's new mid-line V-Drums kits. With hundreds of new sounds, real-audio songs and patterns onboard, plus new Scope and Quick Rec/Quick Play practice functions, full V-Hi-Hat (VH-11) compatibility, and 3-way ride triggering available, the TD-9 raises the bar significantly in its price range.


Instruments    Drum Instruments:522
Drum Kits    50
Instrument Parameters    KICK: Head Tuning, Muffling
SNARE: Head Tuning, Muffling
TOM: Head Tuning, Muffling
HI-HAT: Cymbal Size, Fixed Hi-Hat
CYMBAL: Cymbal Size, Sustain
OTHERS: Pitch, Decay
Effect Types    Ambience (9 types), 2-Band Equalizer
Ambience Parameters    Room Type, Room Size, Wall Type, Mic Position, Room Shape
Mixer Parameters    Volume, Pan
Percussion Set    1
Song    Preset Songs: 50
Parts: 4
Play Function: One shot, Loop, Repeat
Tempo: 20-300
Quick Rec    Resolution: 480 ticks per quarter note
Recording Method: Real-time
Maximum Note Storage: Approx. 32,000 Notes
Audio File Format    WAV
Display    128 x 64 dots Graphic Type LCD (backlit LCD)
Connectors    Trigger Cable connector (DB-25 type), (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-Hat, Crash 1, Ride, Ride Bell, Hi-Hat Control), Extra Trigger Input Jacks: 2 (CRASH2, AUX) (Stereo 1/4 inch phone type), Output Jacks (L (MONO), R) (Stereo 1/4 inch phone type), Phones Jack (Stereo 1/4 inch phone type), Mix in Jack (Stereo miniature phone type), MIDI Connectors (IN, OUT/THRU), USB Connector (for USB Memory)
Output Impedance    1.0 k ohms
Power Supply    AC Adaptor (DC 9V)
Current Draw    500 mA
Accessories    Owner's Manual, Quick Start Guide, AC Adaptor (PSB-1U), Special Connection Cable, Wing Bolt (M5 x 10) x 2, Sound Module Mounting Plate
Options    Pads (PD-8, PDX-8, PD-85, PD-105, PD-125), Cymbals (CY-5, CY-8, CY-12R/C, CY-14C, CY-15R), Kick Triggers (KD-8, KD-85, KD-120), Hi-Hats (VH-11), Hi-Hat Control Pedal (FD-8), Stand (MDS-9), Cymbal Mount (MDY-10U), Pad Mount (MDH-10U), Personal Drum Monitor (PM-10, PM-30), V-Drums Accessory Package (DAP-3), V-Drums Mat (TDM-10)
Size and Weight
Width
160 mm    6-5/16 inches
Depth
89 mm    3-1/2 inches
Height
260 mm    10-1/4 inches
Weight
850 g    1 lbs. 14 oz.
