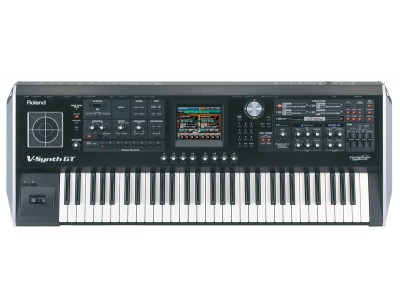

Roland V-Synth GT Synthesizer

Rolandov originalni V-Synth postavlja nove standarde izražajnosti u sintezi i dizajnu zvuka. Nagrađivan je i hvaljen širom sveta, jer je zauvek izmenio način izvođenja i kreacije zvuka. Ali kad god ste pomislili da je V-Synth tehnologija dostigla sam vrh, Roland je dodatno podigao sa novim vrhunskim modelom -V-Synth GT! Ovaj jedinstveni instrument poseduje V-Synthov poznati Elastic Audio Synthesis procesor, sa revolucionarnom Articulative Phrase Synthesis tehnologijom. Neprevaziđenu realističnost i izražajnost, kao i svoju mogućnost da kreira do sada nečuvene zvuke.

Keyboard

61 keys (with velocity and channel aftertouch)

Sound Generator Configuration

Dual-core (2 Tones per Patch: Upper and Lower)

Sections per Tone

Oscillator (envelope x 4 + LFO x 1) x 2, Modulator x 1, COSM (envelope x 2 + LFO x 1) x 2, TVA (envelope x 1 + LFO x 1) x 1, Multi Step Modulator x 1, Tone-FX x 1, AP-Synthesis (Articulative Phrase Synthesis) x 1 (*), Vocal Designer x 1 (*): * Usable on either upper or lower (not both)

OSC1/OSC2 (Oscillator 1, 2)

Analog Modeling: 14 waveforms (SAW, SQUARE, TRIANGLE, SINE, RAMP, JUNO, HQ-SAW, HQ-SQUARE, NOISE, LA-SAW, LASQUARE, SUPER-SAW, FEEDBACK-OSC, XMOD-OSC), PCM/VariPhrase (Preset waveforms + Sampling waveforms), External Input

MOD (Modulator)

4 types (RING, FM, ENV-RING, OSC-SYNC)

COSM

16 types (OD/DS, W-SHAPE, AMP, SPEAKER, RESONATOR, SBF1, SBF2, COMB)

Multi Step Modulator

Provided independently for the Upper Tone and Lower Tone Tracks per Tone: 4, Maximum Number of Steps: 16, Templates: 16, Tempo: 20--250 BPM

AP Synthesis

Source Waveforms: 38 types, Phrase Models: Violin, Erhu, Sax, Flute, Multifade

Vocal Designer

Carrier: Oscillator x 2, Modulator x 1, COSM x 2, TVA x 1, Multi Step Modulator x 1, Vocoder: 4 types (Stereo, Mono, Vintage, Enhance), Formant: 7 types (Maximum)

Zones

Upper Tone: 16, Lower Tone: 16

Arpeggiator

Patterns: User programmable (supports use of control change messages), Motifs: 8 types, Templates: 16, Tempo: 20--250 BPM

MIDI Parts

1

Maximum Polyphony

28 voices (varies according to the sound generator load)

Internal Memory

Projects: 1, Patches: 512, Tones: 896, Wave Memory (RAM): 64 MB

Internal Storage

Internal Flash Memory: 49.5 MB

External Storage Device

USB Flash Memory

Effects

Tone-FX: 63 types, Chorus: 8 types, Reverb: 18 types, 4-band system EQ, Input Effects (Mic/Sampling)

Sampling Frequency

Internal: 44.1 kHz, DIGITAL IN/OUT: 96, 48, 44.1 kHz

Signal Processing

Internal Processing: Sound Generating Section: 32 bits (floating point), Effects Section: 32 bits (fixed point), DA Conversion: 24 bits, AD Conversion: 24 bits

Nominal Output Level

MAIN OUT: +4 dBu, DIRECT OUT: +4 dBu

Nominal Input Level

INPUT (L, R): -10/-20 dBu, MIC IN: -50-- -10 dBu

Display

320 x 240 dots backlit TFT full color touch screen

Controllers

Pitch Bend/Modulation Lever, Time Trip Pad, D Beam Controller (Twin Beam), Assignable Control Knobs (C1, C2), Assignable Switches (S1, S2), V-LINK Button

Connectors

Headphone Jack (Stereo 1/4 inch phone type), Main Output Jacks (L/MONO, R) (1/4 inch TRS phone type), Direct Output Jacks (L, R) (1/4 inch phone type), Input Jacks (L, R) (1/4 inch phone type), Mic Jack (1/4 inch phone type/XLR type, phantom power), Hold Pedal Jack, Control Pedal Jacks (1, 2), MIDI Connectors (IN, OUT, THRU), USB Connectors: COMPUTER (supports USB 2.0 file transfer, USB 1.1 USB MIDI, and USB Audio) MEMORY (supports USB 2.0 Flash Memory), Digital Audio Interface (24-bit, IEC60958): COAXIAL (IN, OUT) OPTICAL (IN, OUT), AC Inlet

Power Supply

AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)

Power Consumption

30 W

Accessories

Owner's Manual, Quick Start, Driver Install Guide, CD-ROM (USB Driver), Power Cord

Options

Keyboard Stand: KS-12, Pedal Switch: DP series, Footswitch: BOSS FS-5U, Expression Pedal: EV-5, USB Memory: M-UF128, Microphone: DR series

Size and Weight

Width

1,066 mm

42 inches

Depth

411 mm

16-3/16 inches

Height

125 mm

4-15/16 inches

Weight

13.8 kg

30 lbs. 7 oz.
