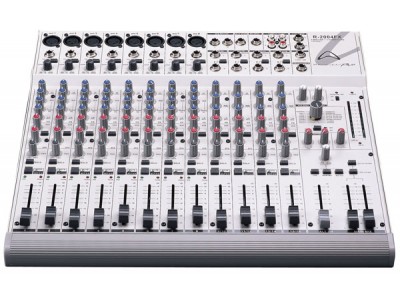

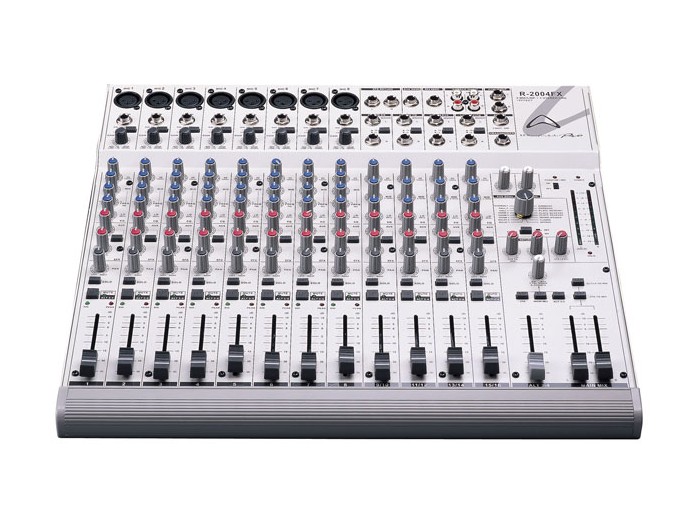

R2004 FX- R Series with Digital Effects
The R2004FX offers 8 mono, balanced mic/line input channels with with 3 Band equalization and a semi- parametric mid range control plus 3 Band equalization on each of the four stereo input channels. The R2004FX also provides 8 TRS ¼" channel Insert jacks for the mono channels which allow the connection of external serial signal processing devices.
| MODEL | R-2004FX |
|---|---|
| HUM AND NOISE | -127dB Equivalent Input Noise |
| (Average,Rs=150) | -95dB Residual Noise (MIX L / R,ALT 3~4,AUX,EFX,CTRL ROOM) |
| Master Fader at Nominal level and all Channel Assign Switch off | |
| Dimensions (HxWxD) | |
| mm | 81.6 x 418.8 x 399.7 mm |
| inches | 3.2 x 16.5 x 15.7 inches |
| Weight | |
| kg | 7.5kg |
| lbs | 16.5lbs |
| MAXIMUM OUTPUT LEVEL | +22dB(MIX L / R,ALT 3~4) @600 ohm |
| (0.5% T.H.D at 1kHz) | +22dB(AUX,EFX SEND) @600 ohm |
| +22dB(INSERT) @40k ohm | |
| +22dB(CTRL ROOM) @600 ohm | |
| Over 130mW (Headphone) @40 ohm | |
| MASTER EQ | |
| HI EQ | (+ / -15dB) 12kHz Shelving |
| MID EQ | (+ / -15dB) 100Hz~8kHz (EQ for Frequency Variable) Peaking |
| LOW EQ | (+ / - 15dB) 80Hz Shelving |
| TOTAL HARMONIC DISTORTION (THD) | 0.0025% @+14dB 20Hz~20kHz |
| (MIX L / R,ALT 3~4,AUX,EFX,CTRL ROOM) @600 ohm | |
| MAXIMUM LEVELS | |
| Mic in | +4dBu |
| Tape in | +13dBu |
| All other inputs | +25dBu |
| MAXIMUM VOLTAGE GAIN | 72dB MIC IN TO MIX L / R,ALT 3~4 |
| 72dB MIC IN TO AUX 1 | |
| 72dB MIC IN TO AUX 2(POST),EFX | |
| 74dB MIC IN TO CONTROL ROOM L / R | |
| 72dB MIC IN TO REC L / R | |
| 54dB LINE IN TO MIX L / R,ALT 3~4 | |
| 58dB LINE IN TO AUX 1 | |
| 58dB LINE IN TO AUX 2(POST) | |
| 60dB LINE IN TO CONTRAL ROOM L / R | |
| 22dB ST IN TO MIX L / R,ALT 3~4 | |
| 20dB AUX RETURN L / R IN TO MIX L / R | |
| 16dB TAPE IN TO MIX L / R | |
| INTERFERENCE (CROSSTALK) at 1kHz | |
| Main Fader Down | -85dBu |
| Channel Alt / Mute Switch Engaged | -80dBu |
| Channel Fader Down | -70dBu |
| MONO INPUT CHANNEL GAIN | 50dB variable (-60dB~-10dB), (-40dB~+10dB) |
| PEAK INDICATOR | Input Channel:Turns on 3dB Under Pre-fader Signal Clip |
| LEVEL METERS | 10-Segment LED x2 (Output of +4dB at 0dB) Main L / R |
| PHANTOM POWER | 48V |
| EFFECTS PRESET | (1) Delay 1 (2) Delay 2 (3) Room 1 (4) Room 2 (5) Room 3 (6) Hall 1 (7) Hall 2 (8)Chorus 1 (9)Chorus 2 (10) Chorus 3 (11) Plate Reverb 1 (12) Plate Reverb 2 (13) Plate Reverb 3 (14)Rotary speaker (15)Flange (16) Bypass |
