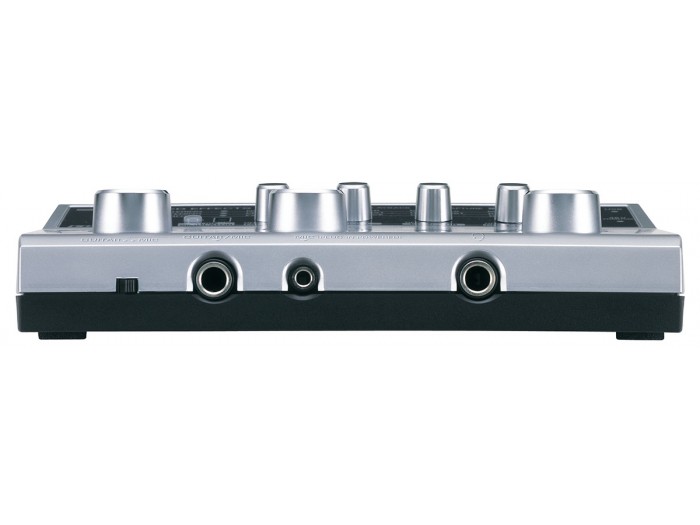

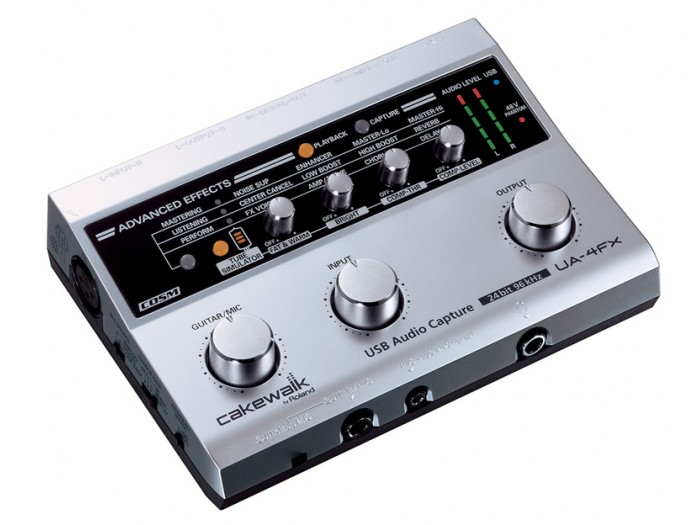

Edirol Cakewalk UA-4FX CW USB Audio Interface **

[klikni na sliku za uvećan prikaz]

Podeli

Ovaj proizvod trenutno nije dostupan.

pogledaj ostale Edirol proizvode

Odštampaj stranicu

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

USB Audio Interfejs sa efektima za gitariste i pevače

UA-4FX je kompaktan 24-bit/96 kHz USB audio interfejs sa originalnom Rolandovom COSM® preamp simulacijom i visoko kvalitetnim efektima. UA-4FX omogućuje snimanje na terenu uz korišćenje efekata i sjajan zvuk u kompaktnom kućištu, čime postaje idealan za gitariste, pevače i kompozitore na svakom mestu.
Now bundling Cakewalk Production Plus Pack SONAR PPP

Snimanje i reprodukcija high-resolution audio signala do 24-bit/96 kHz
XLR ulaz sa Phantom napajanjem za kondenzatorske mikrofone – savršeno za vokale
1/4" Hi-Z ulaz za bolji zvuk pri snimanju električne i bas gitare
Tube Mic Preamp Simulator omogućuje tople zvuke pomoću Rolandove COSM® Tehnologije
14 ugrađenih efekata: Amp Simulator, Chorus, Delay, Reverb, Enhancer, itd
MIDI in/out portovi za MIDI snimanje, sekvenciranje, kontrolu i playback
Može se napajati direktno sa USB porta, pa nije neophodan ispravljač. što je idealno za prenošenje i korišćenje bilo gde
1/8" ulaz za electret kondenzatorske mikrofone, 1/4” ulaz za dinamičke mikrofone
Optički S/PDIF I/O za direktno priključivanje digitalnih audio uređaja
Drajveri sa niskom latencijom omogućuju bolje višekanalno snimanje:
WDM (Windows) / ASIO 2.0 (Windows) / Core Audio (Mac OS X)
Brza i stabilna transmisija MIDI signala pomoću specijalne FPT tehnologije
petodelni stereo LED indikator za nivo miksa i proveru signala
Dolby Digital & DTS 5.1 surround sound pomoću S/PDIF izlaza (samo Windows)
Možete digitalizovati ploče i kasete sa maksimumom kvaliteta

[Informacija o brendovima]
Novi "Cakewalk by Roland" UA-4FX od druge polovine 2009, zamenjuje dosadašnji proizvod označen "EDIROL by Roland".
Ovi novi proizvodi označeni Cakewalk brandom su i dalje isto kvalitetni kao i dosad i kao što se to i očekuje od EDIROL brenda.

Karakteristike:

Main Specifications
Number of Audio Record/Playback Channels	Record:1 pair of stereo
	Playback:1 pair of stereo
	Full duplex (Except 96 kHz)
Signal Processing	PC Interface24-bit
	AD/DA Conversion24-bit (linear)
	Internal Processing32-bit (Effect processing)
Sampling Frequency	Digital Output44.1/48/96 kHz
	Digital Input44.1/48/96 kHz
	AD/DA Conversion44.1/48/96 kHz

	* ADVANCE SWITCH = OFF: 44.1 kHz only
Frequency Response	96 kHz: 20 Hz to 40 kHz (+1 dB/-2 dB)
	48 kHz: 20 Hz to 22 kHz (+1 dB/-1 dB)
	44.1 kHz: 20 Hz to 20 kHz (+1 dB/-1 dB)
Nominal Input Level	Line Input: -10 dBu
	MIC Input (XLR): -45 to -12 dBu
	MIC Input (non-XLR): -45 dBu
	GUITAR Input: -30 dBu
Nominal Output Level	Line Output Jacks-10 dBu
Residual Noise Level	-105 dBu or less (SN ratio: 108 dB, typ.)
	* Input terminated with 1 k ohms, MAIN VOLUME: 0 dB, Monitor: OFF, IHF-A typ.
Interface	USB
	Digital Audio Input/Output (Optical type, conforms to IEC60958 consumer format: PCM/AC3)
Effects	Mastering
	Noise Suppressor, Enhancer, Multiband Compressor/Limiter
	Sound Enhancement
	Center Cancel, High Boost, Low Boost, Reverb
	Performance
	Voice-change, Amp-Simulator, Distortion, Chorus, Delay
	Tube-amp simulator
	Tube-Amp-Simulator, Multiband Compressor/Limiter
Connectors	Line Input Jacks (L, R) (RCA phono type)
	MIC Input Jack (XLR type, balanced, phantom power +48 V)
	MIC Input Jack (Miniature phone type, plug-in powered)
	GUITAR/MIC Input Jack (1/4 inch phone type)
	Line Output Jacks (L, R) (RCA phono type)
	Headphones Jack (Stereo 1/4 inch phone type)
	Digital Input Connector (Optical)
	Digital Output Connector (Optical)
	MIDI Connectors (IN/OUT)
	USB Connector (USB Type B)
Power Supply	Supplied from the computer
Current Draw	360 mA
Accessories	Owner’s Manual
	USB cable
	Driver CD-ROM
	Cakewalk Production Plus Pack CD-ROM
	Licence agreements
System Requirements
Windows	OS: Microsoft® Windows Vista® / Windows® XP Home / XP Professional SP2 or later*
	Computer: Windows compatible PC equipped with a USB port
	CPU/Clock: Pentium® Processor 1 GHz or higher
	Memory(RAM): 256 MB or more (1 GB or more is recommended)
	* This product does not support Windows XP Media Center Edition or XP Professional x64.
Macintosh	OS: Mac OS X 10.3.9 or later
	Computer: Apple® Macintosh® series with on-board USB port
	CPU/Clock: Intel Processor or PowerPC G4/867 MHz or higher
	Memory(RAM): 256 MB or more (512 MB or more is recommended)
Cakewalk Production Pack Software	Operating System: Windows XP/Vista only
	Processor: Intel® Pentium® 4 1.3 GHz or AMD Athlon™ XP 1500+ RAM - 256 MB RAM
	Hard Drive: 100 MB free hard disk space
	Screen Resolution: 1024 X 768, 16-bit color CD-ROM drive (for installation) Windows-compatible audio card/interface
	* Cakewalk Production Plus Pack does not run on Macintosh.
Size and Weight
Width	171 mm
Depth	127 mm
Height	44 mm
Weight	335 g

* USB 2.0 Compatible. Works as a USB 1.1 device without changing the specifications and performance. .
* Macintosh computers running Microsoft Windows are not supported.
* This product has been tested on representative computers that meetthe system requirements, but we cannot guarantee that it will operateon any computer that meets these requirements. Please be aware that even under the same conditions, differences in the operatingenvironment may produce differences in processing capability.
* 0 dBu = 0.775 Vrms

In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
