Description

An easy to use and affordable table top design music mixer. With Hi, Mid and Low control for each channel. Individually controllable phantom power per channel making it ideal for live sound and recording purposes.

Highlights

• 4 Mono microphone-/line input (Combi XLR/Jack)
• 1 Stereo line input (6.3mm Jack)
• Internal soundcard with record function USB/PC (USB connection)
• 16 Pre-programmed DSP functions
• +48V phantom power with individual preamp per channel
• Stereo balanced main outputs (6.3mm Jack)
• Separate control room and headphones outputs
• Hi, mid and low control per channel
• -26dB PAD on channel 1, 2, 3 and 4
• FX send/return
• Built-in USB player with digital display
• BT-receiver for audio streaming
• LED VU meter and Peak LED's

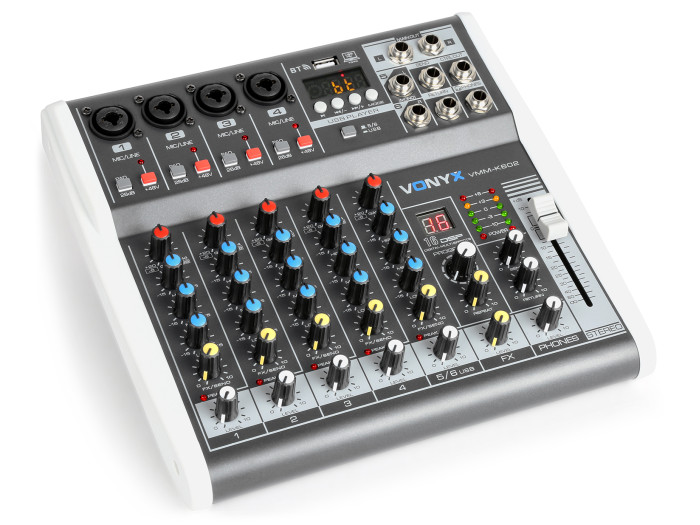

Vonyx VMM-K Series 6-Channel Mixer

Brand: Vonyx
Product Series: VMM-K Series
Colour: Black
Number of Channels: 6

Audio Specifications

Frequency Response: 15–20,000 Hz

Microphone Input Level: 1.5 mV, 2 kΩ

THD (Main): <0.01%

Playback and Effects

Playback Options: USB

DSP Effects: 16

Features: Effect Processor, Playback, Recording, USB Audio Interface

Connections

Inputs

XLR

USB-A

6.3 mm Jack

Outputs

6.3 mm Jack

Electrical

Power Supply: 100–240 V AC, 50/60 Hz

Mechanical

Dimensions (W × D × H): 235 × 225 × 50 mm

Weight: 2.8 kg
