Description

The VSA series consists of a range of high-power speakers with 2 built-in amplifiers (LF amplifier and the HF amplifier) for great performance. This series has been designed in a sturdy ABS construction both to handle the power and still lightweight enough for mobile use. The perfect speaker for any DJ or live-performer but also suitable for monitor use or club installation.

Highlights

• 1000W Bi-amplified 15" speaker
• Guitar, Line and microphone inputs
• Built-in 2-way active crossover
• Angled design for use as stage monitor
• 35mm socket for tripod or pole-mounting

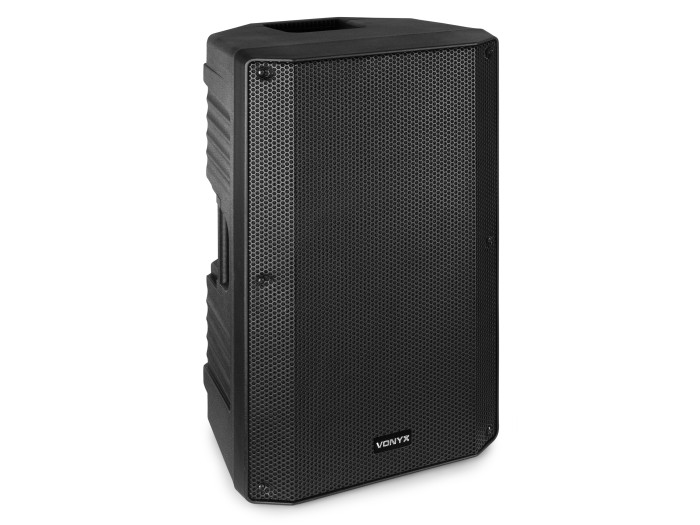

Vonyx VSA Series Active Speaker – 15"

Brand: Vonyx
Product Series: VSA Series
Colour: Black
Speaker Type: Active (Amplified)

Audio Specifications

Peak Power: 1000 W

Rated Power: 500 W

Frequency Response: 35–20,000 Hz

Maximum SPL (Peak): 129 dB

Tweeter Type: Titanium Compression Driver

Tweeter Diameter: 1.35"

Woofer Diameter: 15"

Woofer Magnet Type: Ferrite

Amplifier Class: Class D

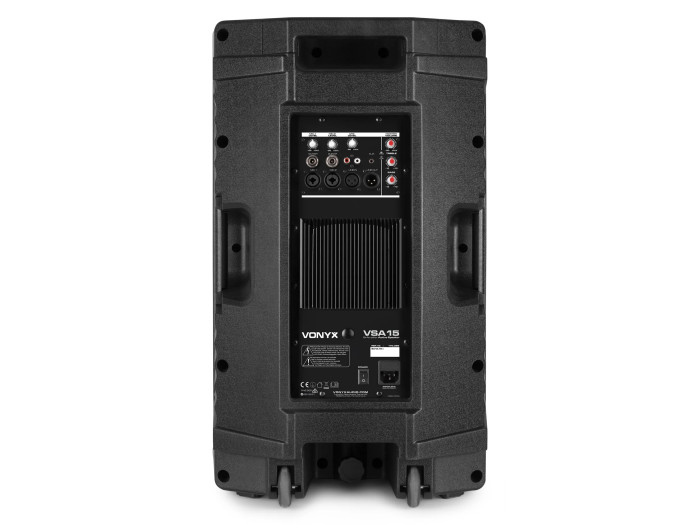

Connections

Input Connections

XLR

RCA

6.3 mm Jack

3.5 mm Jack

Output Connections

XLR

Electrical

Power Supply: 220–240 V AC, 50 Hz

Mechanical

Stand Mount: 35 mm Pole Adapter (Bottom)

Dimensions (W × D × H): 360 × 420 × 680 mm

Weight: 16.4 kg
