Description

The VSA series consists of a range of high-power speakers with 2 built-in amplifiers (LF amplifier and the HF amplifier) for great performance. This series has been designed in a sturdy ABS construction both to handle the power and still lightweight enough for mobile use. The perfect speaker for any DJ or live-performer but also suitable for monitor use or club installation.

Highlights

• 800W Bi-amplified 12" speaker
• Guitar, Line and microphone inputs
• Built-in 2-way active crossover
• Angled design for use as stage monitor
• 35mm socket for tripod or pole-mounting

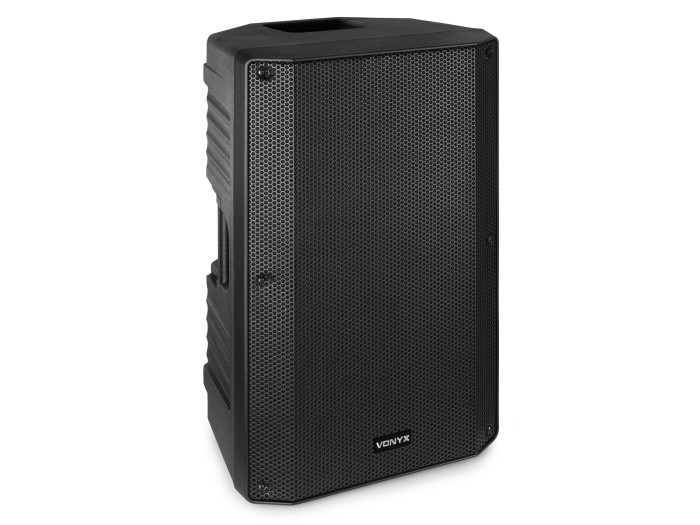

Vonyx VSA Series Active Speaker – 12"

Brand: Vonyx
Product Series: VSA Series
Colour: Black
Speaker Type: Active (Amplified)

Audio Specifications

Peak Power: 800 W

Rated Power: 400 W

Frequency Response: 40–20,000 Hz

Maximum SPL (Peak): 125 dB

Tweeter Type: High Compression Driver

Tweeter Diameter: 1"

Woofer Diameter: 12"

Woofer Magnet Type: Ferrite

Amplifier Class: Class D

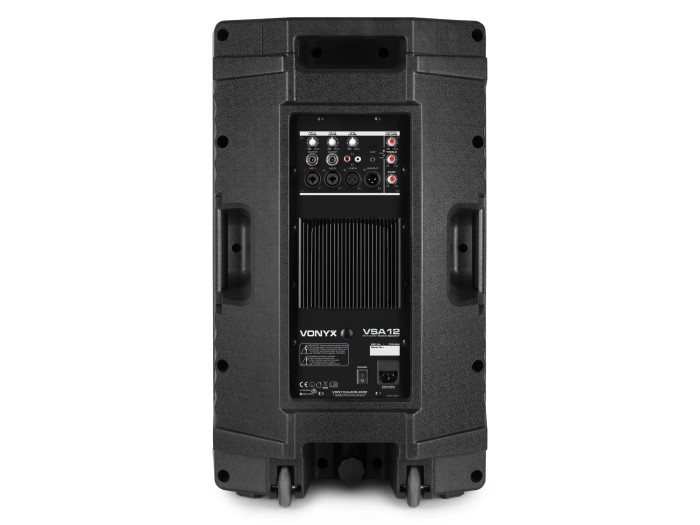

Connections

Input Connections

XLR

RCA

6.3 mm Jack

3.5 mm Jack

Output Connections

XLR

Electrical

Power Supply: 220–240 V AC, 50 Hz

Mechanical

Stand Mount: 35 mm Pole Adapter (Bottom)

Dimensions (W × D × H): 315 × 380 × 595 mm

Weight: 12.8 kg
