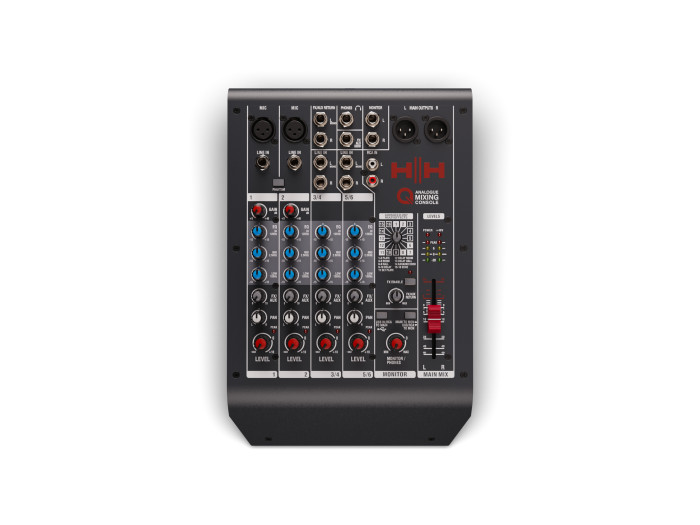

HH Electronics Q6FX

The Q6FX is a compact 6-channel analogue mixing console designed and engineered in the UK. The Q6FX consists of 2 mono input channels with microphone inputs that utilise low-noise microphone preamps as well as a line input option on each channel. The mono input channels sit alongside 2 stereo line input channels perfect for electric pianos, synthesizers, drum machines, stereo audio from an external media player, or any other line-level sources.

Harnessing 4 banks of 3-band EQ and 16 high-quality DSP effects, the Q6FX gives you full control over your audio productions. 2in/2out USB functionality makes the Q6FX the perfect tool for recording performances, podcasts, and music production.

All of this combined with comprehensive monitoring, an auxiliary send with a stereo return, RCA in, global phantom power, pan on each channel, and a 4-point LED meter for your main mix all housed in a robust chassis make the Q6FX a complete portable powerhouse for traveling musicians and engineers alike. 

• Microphone Inputs: 2 × XLR (CH1–2)
• Mono Line Inputs: 2 × 6.3 mm TRS (CH1–2)
• Stereo Line Inputs: 2 × stereo 6.3 mm TRS (CH3–6)
• Channel EQ: 3-band EQ (±15 dB), Low 100 Hz, Mid 2.5 kHz, High 12 kHz
• Main Outputs: Balanced stereo XLR
• Monitor Outputs: Stereo 6.3 mm TRS
• FX Send: Mono 6.3 mm TRS
• Headphones: 6.3 mm TRS output
• Effects: 16 built-in reverb and delay effects with enable switch
• USB Audio: 2-in/2-out, 16-bit/24-bit, 48 kHz sample rate

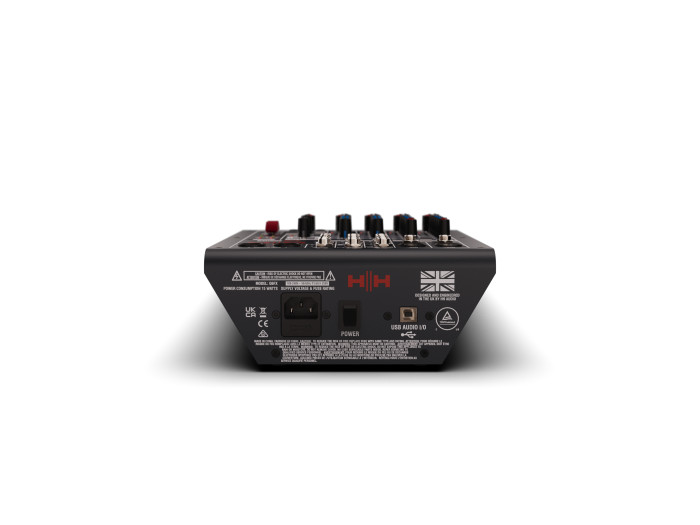

• Power Supply: Universal 100–240 V AC, 50/60 Hz
• Power Connection: IEC C13 socket, AC power cord included
