HH Electronics Q12FX

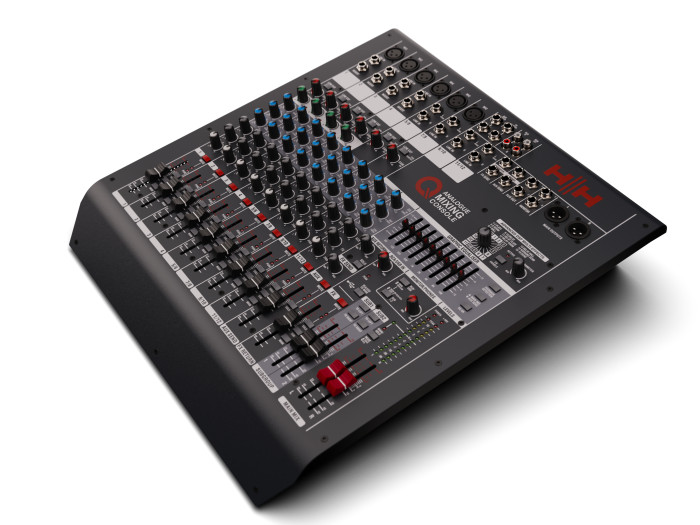

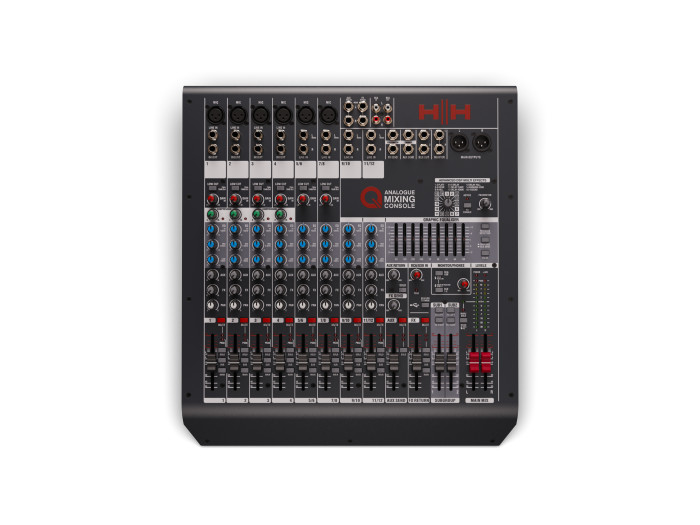

The Q12FX is a 12-channel analogue mixing console designed and engineered in the UK. The Q12FX consists of 12 input channels: 6 mono channels with microphone inputs utilising low-noise microphone preamps plus a line-in option on each channel alongside 4 stereo line input channels perfect for electric pianos, synthesizers, drum machines, audio from external media players or any other line level sources.

Channels 1 to 4 feature an easy-to-use single-knob compressor giving you full control over the dynamic range of your input sources. A low cut at 75Hz plus a 3-band EQ is available on each channel allowing you to shape the tone of individual sound sources helping you to create a beautifully balanced mix.

16-high-quality DSP effects offer even more options for your audio productions with multiple reverbs, delays and echoes to choose from. The 9-band graphic EQ with feedback detection allows you to grasp the sound of your mix as a whole and adjust accordingly before sending it to front of house.

The Q12FX also offers 2 Subgroups to give you further control, allowing you to adjust the level of the channels routed to each group with ease. 2in/2out USB functionality makes the Q12FX the perfect tool for recording performances, podcasts, and music production.

All of this combined with comprehensive monitoring, 2 auxiliary sends, RCA in and out, global phantom power, pan on each channel, and a 12-point LED meter for your main mix all housed in a robust chassis make the Q12FX a complete portable powerhouse for traveling musicians and engineers alike. 

• Microphone Inputs: 6 × XLR (CH1–8)
• Mono Line Inputs: 4 × 6.3 mm TRS (CH1–4)
• Stereo Line Inputs with Mic: 2 × stereo 6.3 mm TRS (CH5–8)
• Stereo Line Inputs: 2 × stereo 6.3 mm TRS (CH9–12)
• Channel EQ: 3-band EQ (±15 dB), Low 100 Hz, Mid 2.5 kHz, High 12 kHz
• Low Cut Filter: 75 Hz, 18 dB/octave (CH1–8)
• Compression: 2:1 ratio, 9 dB makeup gain, −8 dBu threshold (CH1–4)
• Main Outputs: Balanced stereo XLR
• Monitor Outputs: Stereo 6.3 mm TRS
• Sub Outputs: 2 × 6.3 mm TRS
• FX Send: Mono 6.3 mm TRS
• Aux Send: Mono 6.3 mm TRS
• Headphones: 6.3 mm TRS output
• RCA Inputs: Stereo phono sockets
• Effects: 16 reverb and delay effects with enable switch and parameter control
• Graphic EQ: 9-band master graphic EQ with feedback detection and on/off switch
• USB Audio: 2-in/2-out, 16-bit/24-bit, 48 kHz sample rate
• Power Supply: Universal 100–240 V AC, 50/60 Hz
• Power Connection: IEC C14 socket, AC power cord included
