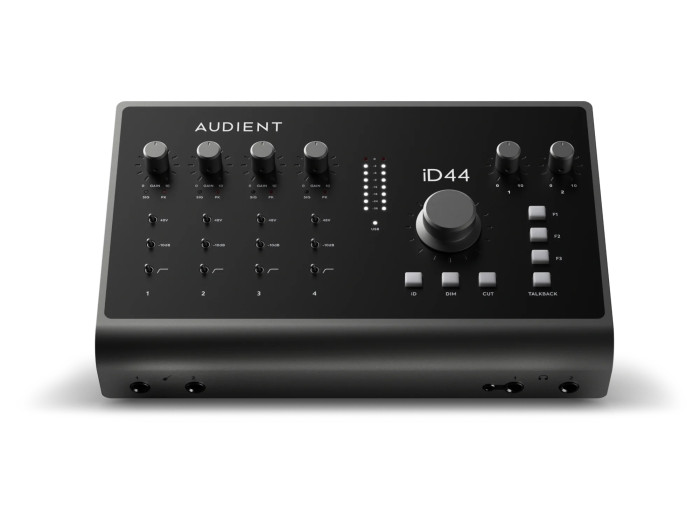

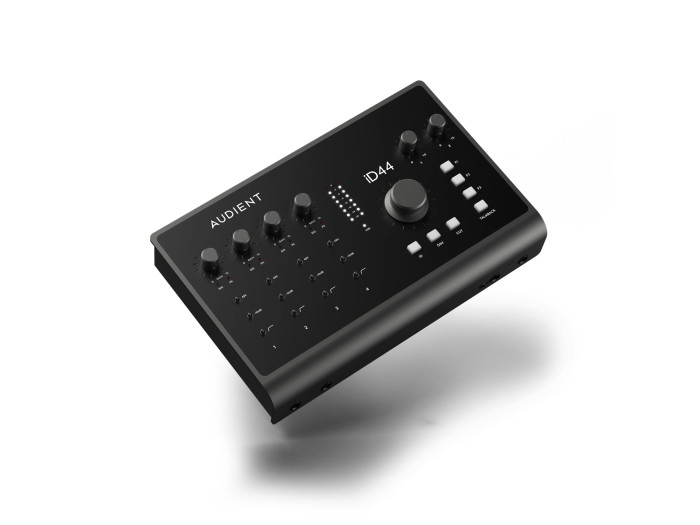

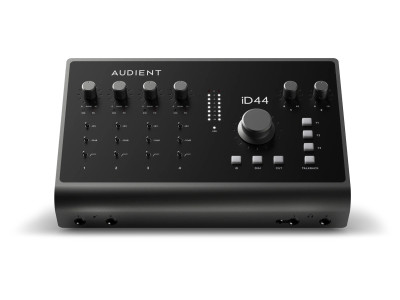

Introducing iD44, the audio interface made for producers and engineers. Featuring four Audient Console Mic Preamps, Advanced 32-bit AD/DA Converters and two fully balanced analogue inserts – iD44 effortlessly combines astonishing audio performance with ease of use. Add to that professional must have features like dual headphone outputs, ADAT expandability and customisable monitor control, iD44 makes getting studio quality results easy.
Sound better than ever with the Audient Console Mic Preamp. Delivering 70dB gain, ultra-low noise and low distortion with a touch of classic analogue warmth. iD44’s four Audient Console Mic Preamps make sure you capture a clean, accurate and true to source translation of your audio.
MICROPHONE PREAMPLIFIER
MIC GAIN: 0 to +60dB
LINE GAIN: -10 to +50dB
PHANTOM POWER: 48v +/-4v @ 10mA/Channel
MIC EIN: -126dBu
CMRR: >80dB @ 1kHz
MAXIMUM INPUT LEVEL: +18dBu
INPUT IMPEDANCE (Mic): 3k Ω balanced
INPUT IMPEDANCE (Line): 10k Ω balanced
FREQUENCY RESPONSE: ±0.5dB 10Hz to 65kHz
CROSSTALK: <-90dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): 0.003% (-90dB)
SNR: 96dB
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
PAD: -10dB
HPF: -3dB @ 100Hz, 2nd Order (12dB/Octave)
D.I / INSTRUMENT INPUT (CHANNEL 1)
D.I GAIN: 0 to +60dB
MAXIMUM INPUT LEVEL: +10dBu
INPUT IMPEDANCE: 1MegΩ Unbalanced
FREQUENCY RESPONSE: ±0.5dB 10Hz to 50kHz
THD+N @ 0dBu (1kHz): <0.3%
SNR: 95dB A-weighted
1/4” JACK: Tip (Hot) & Sleeve (Shield)
ANALOGUE TO DIGITAL CONVERTER (ADC 1 & 2)
(Measured via Insert Returns under AES-17)
MAXIMUM INPUT LEVEL: +18dBu (0dBFS digital maximum)
DIGITAL REFERENCE LEVEL: +18dBu = 0dBFS
INPUT IMPEDANCE: >10k Ω Balanced
CROSSTALK: <-118dBu @ 1kHz & 10kHz
FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2 (Nyquist)
THD+N @ -1dBFS (1kHz): <0.0003% (-112dB)
DYNAMIC RANGE: 120dB A-weighted
1/4” TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
DIGITAL TO ANALOGUE CONVERTER (DAC 1, 2, 3 & 4)
(Measured under AES-17 at line outputs 1, 2, 3 & 4)
MAXIMUM OUTPUT LEVEL: +18dBu (0dBFS digital maximum)
OUTPUT IMPEDANCE: <100 Ω
CROSSTALK: <-118dBu @ 1kHz & 10kHz
FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2 (Nyquist)
THD+N @ -1dBFS (1kHz): <0.0006% (-104dB)
DYNAMIC RANGE: 124dB un-weighted, 126dB A-weighted
1/4” TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
HEADPHONE OUTPUTS
(Measured under AES-17 at phones output)
MAXIMUM OUTPUT LEVEL: +14dBu (0dBFS digital maximum)
OUTPUT IMPEDANCE: <50 Ω unbalanced
CROSSTALK: <-110dBu @ 1kHz & 10kHz
FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2
CROSSTALK: -115dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.0008% (-103dB)
DYNAMIC RANGE: 121dB un-weighted, 124dB A-weighted
MAX LEVEL INTO 30ohms: +10.2dBu 0.002% THD+N Power: 210mW
MAX LEVEL INTO 60ohms: +14.2dBu 0.001% THD+N Power: 54mW
MAX LEVEL INTO 600ohms: +14.2dBu 0.001% THD+N Power: 54mW
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
DIGITAL INPUT
ADAT 16 CHANNELS: 44.1kHz to 48.0kHz
ADAT 8 CHANNELS (SMUX): 88.2kHz to 96.0kHz
STEREO S/PDIF: 44.1kHz to 96.0kHz
DIGITAL OUTPUT
ADAT 16 CHANNELS: 44.1kHz to 48.0kHz
ADAT 8 CHANNELS (SMUX): 88.2kHz to 96.0kHz
STEREO S/PDIF: 44.1kHz to 96.0kHz
USB2.0 HIGH SPEED
No. of INPUT CHANNELS 20: 20 (4 Analogue, 16 Digital)
No. of OUTPUT CHANNELS 24: 24 (8 Analogue, 16 Digital)
CONNECTOR: USB Type-C
USB-C to C Cable is included
DSP MIXER LATENCY – ROUND TRIP (IN-TO-OUT)
44.1kHz: 0.677ms
48.0kHz: 0.625ms
88.2kHz: 0.354ms
96.0kHz: 0.323ms
WORD CLOCK OUTPUT
WORD CLOCK OUTPUT: 44.1kHz to 96kHz
DIMENSIONS
Unit: 276mm (w) x 51mm (h) x 174mm (d)
