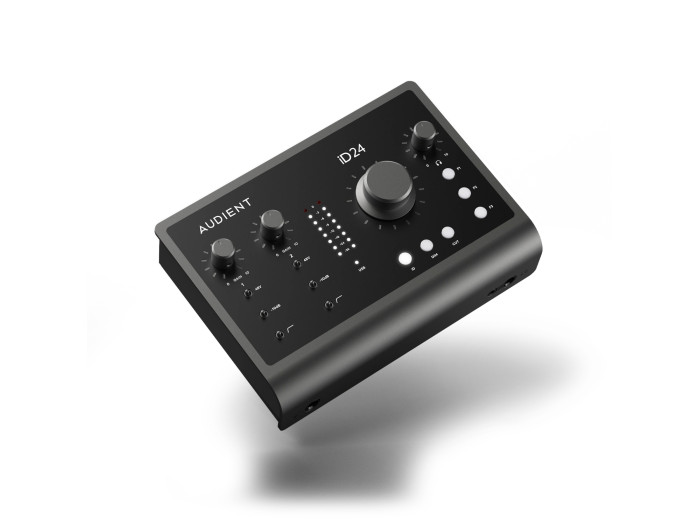

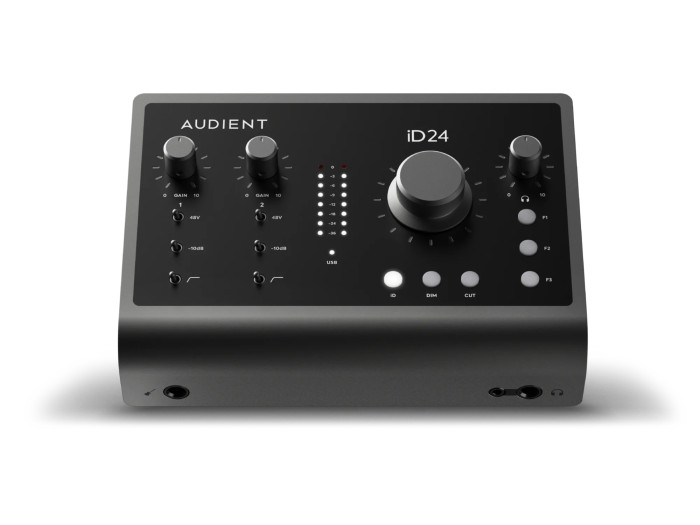

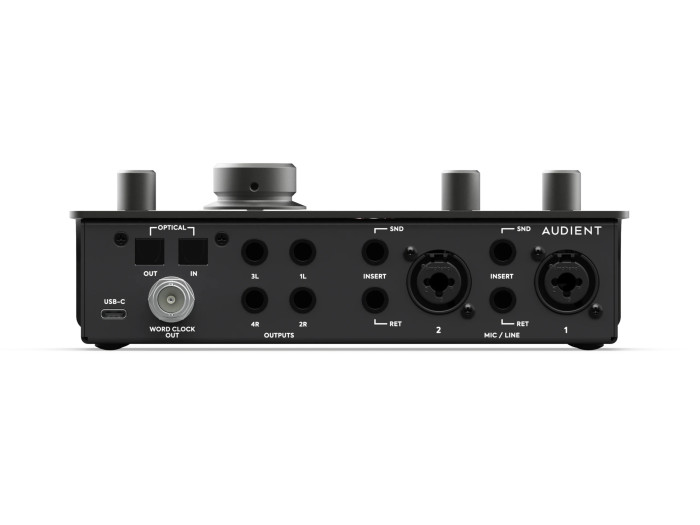

Introducing iD24, the audio interface made for producers and engineers. Featuring two Audient Console Mic Preamps, Advanced 32-bit AD/DA Converters and an intuitive layout, iD24 effortlessly combines astonishing audio performance with ease of use. Add to that professional must have features like balanced inserts, ADAT expandability and customisable monitor control, iD24 makes getting studio quality results easier than ever.
Sound better than ever with the Audient Console Mic Preamp. Delivering 68dB gain, ultra-low noise and low distortion with a touch of classic analogue warmth. iD24’s Audient Console mic preamp makes sure you capture a clean, accurate and true to source translation of your audio.
MICROPHONE PREAMPLIFIER
MIC GAIN: 0 to +58dB
MAXIMUM INPUT LEVEL: +12dBu
CROSSTALK: <-100dBu @ 1kHz & 10kHz
THD+N: @0dBu 1kHz: 0.0015%, -96dB
MIC EIN: -130dBu A-Weighted
CMRR: >75dB@1kHz
SNR: 97.5dB Unweighted, 100dB A-Weighted
FREQUENCY RESPONSE: +/- 0.5dB 10Hz to 40kHz
INPUT IMPEDANCE (Mic): 3kΩ balanced
INPUT IMPEDANCE (Line): 10kΩ balanced
PAD: -10dB
HPF CUTOFF FREQUENCY: 100Hz
PHANTOM POWER: 48V +/-4V @ 10mA/Channel
XLR COMBI FEMALE: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
LINE INPUTS
LINE GAIN: -10 to +48dB
MAXIMUM INPUT LEVEL: +22dBu
THD+N @0dBu 1kHz: 0.0013%, -97dB
D.I / INSTRUMENT INPUT
D.I GAIN: 0 to 58dB
MAXIMUM INPUT LEVEL: +12 dBu
THD+N @ 0dBu (1kHz): 0.16%
SNR: 95dB unweighted, 97.5dB A-weighted
FREQUENCY RESPONSE: +/- 0.5dB 0.5dB 10Hz to 40kHz
INPUT IMPEDANCE: 500kΩ unbalanced
1/4” JACK: TIP (Hot) & SLEEVE (Shield)
ANALOGUE TO DIGITAL CONVERTER
MAXIMUM INPUT LEVEL: 12.5dBu=0dBFS
CROSSTALK: @1k -135dB, @10k -125dB
FREQUENCY RESPONSE: +/- 0.2dB 0.5dB 10Hz to Fs/2 (Nyquist)
THD+N @ -1dBFS (1kHz): 0.0004%, -108dB
DYNAMIC RANGE: 122dB A-weighted
INPUT IMPEDANCE: >10kΩ
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
DIGITAL TO ANALOGUE CONVERTER
MAXIMUM OUTPUT LEVEL: 12dBu=0dBFS
THD+N @ 1kHz -1dBFS: 0.0003%, -110dB
DYNAMIC RANGE: 126.5dB A-weighted
CROSSTALK: -130dB @ 1kHz, -115dB @ 10kHz
FREQUENCY RESPONSE: +/- 0.1dB 10Hz to Fs/2 (Nyquist)
OUTPUT IMPEDANCE: <100Ω
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
HEADPHONE OUTPUTS
MAXIMUM OUTPUT LEVEL: 18.5dBu=0dBFS
THD+N @ -1dBFS (1kHz): 0.0006%, -104dB
DYNAMIC RANGE: 124dB A-weighted
CROSSTALK: -117dB @ 1kHz, -101dB @ 10kHz
FREQUENCY RESPONSE: +/- 0.2dB 10Hz to Fs/2 (Nyquist)
OUTPUT IMPEDANCE: <50Ω unbalanced
MAX LEVEL INTO 30R: 2.63V Peak, 1.87V RMS, 232mW
MAX LEVEL INTO 60R: 4.28V Peak, 3.03V RMS, 295mW
MAX LEVEL INTO 600R: 7.91V Peak, 5.6V RMS, 104mW
USB-C HIGH SPEED
NO. OF INPUT CHANNELS: 10 (2 Analogue, 8 Digital)
NO. OF OUTPUT CHANNELS: 14 (6 Analogue, 8 Digital)
CONNECTOR: USB Type-C
INCLUDED CABLES: 1m USB 2.0 Type-C to Type-C
DIGITAL INPUT
8-CHANNEL ADAT: 44.1kHz to 48kHz
4-CHANNEL ADAT: 88.2kHz to 96kHz (SMUX)
STEREO S/PDIF: 44.1kHz to 96kHz (Stereo)
DIGITAL OUTPUT
8-CHANNEL ADAT: 44.1kHz to 48kHz
4-CHANNEL ADAT: 88.2kHz to 96kHz (SMUX)
STEREO S/PDIF: 44.1kHz to 96kHz (Stereo)
DSP MIXER LATENCY
Round Trip (in-to-out)
44.1kHz: 0.344ms
48kHz: 0.312ms
88.2kHz: 0.188ms
96kHz: 0.177ms
WORD CLOCK OUTPUT
WORD CLOCK OUTPUT: 44.1kHz to 96kHz
