Boss Katana KTN-Mini X

Katana-Mini X delivers acclaimed Katana tones in a fun and inspiring amp for daily practice and jamming. Evolving on the features of the popular Katana-Mini, it offers six versatile analog sound options and two simultaneous effects, housed in a robust wood cabinet for a bigger and fuller guitar experience. Katana-Mini X also provides many enhancements to energize your playing sessions, including an onboard tuner, front-facing panel controls, an internal rechargeable battery, and onboard Bluetooth® for streaming music from your smartphone.

• Inspiring Katana tone in a 10-watt mini amp
• Multi-stage analog gain circuit developed with the acclaimed BOSS Tube Logic approach
• Rich, full sound with a robust wood cabinet and a custom 5-inch speaker
• Three versatile amp types (Brown, Crunch, and Clean) with a variation for each
• Clean amp variation provides a flat-response sound for acoustic-electric guitar and bass
• Three-band analog tone stack for smooth sound adjustment
• Two independent effect sections with 10 total effect types to choose from

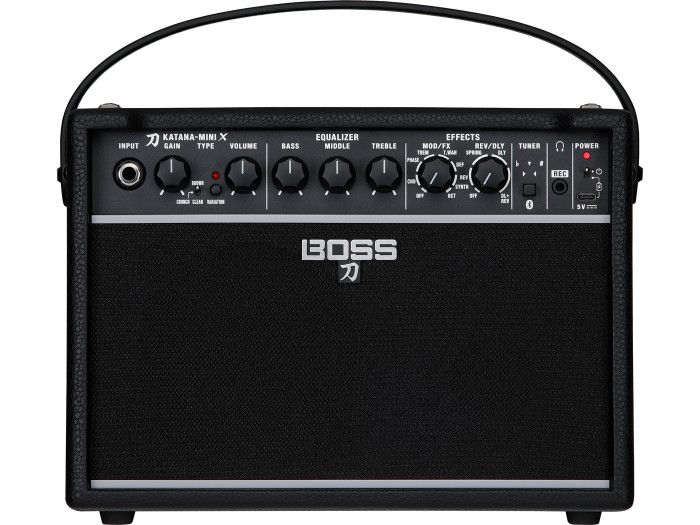

• Intuitive panel with front-facing controls
• Guitar/bass tuner with panel indicators
• Wirelessly stream audio from a mobile device via onboard Bluetooth
• Dedicated output with cabinet simulation and stereo effects for headphone practice and recording
• Rechargeable battery with up to 10 hours of continuous playing time*
• USB-C® jack for charging (USB Type-C to Type-A charging cable included)

  *Actual battery life will vary depending on the usage conditions.

Professional Sound, Compact Size

While its footprint is small, the Katana-Mini X sound is anything but. The multi-stage analog gain circuit features a sophisticated, detailed design that produces highly expressive tones with immersive depth and dimension, supported by a sturdy wood cabinet and custom 5-inch speaker for a satisfying feel and rich low-end response. Our no-compromise Tube Logic design approach brings you full-bodied sounds for every genre, including searing high-gain solo sounds and tight metal rhythm tones dripping with saturation and harmonic complexity.

• Rated Power Output: 10 W
• Nominal Input Level:
◦ INPUT: -10 dBu (1 M ohm)
• Speaker: 12 cm (5 inches)
• Power Supply: Rechargeable nickel-metal hydride battery
• Current Draw: 1500 mA
• Expected Battery Life Under Continuous Use: Approximately 10 hours
◦ These figures will vary depending on the actual conditions of use.
• Battery Charging Time: Approximately 3 hours
◦ To charge the unit, use the USB port of a computer or a commercially available USB power supply adaptor (5 V, 2 A or higher).
• Bluetooth:
◦ Profile Support: A2DP (Audio)

CONTROLS

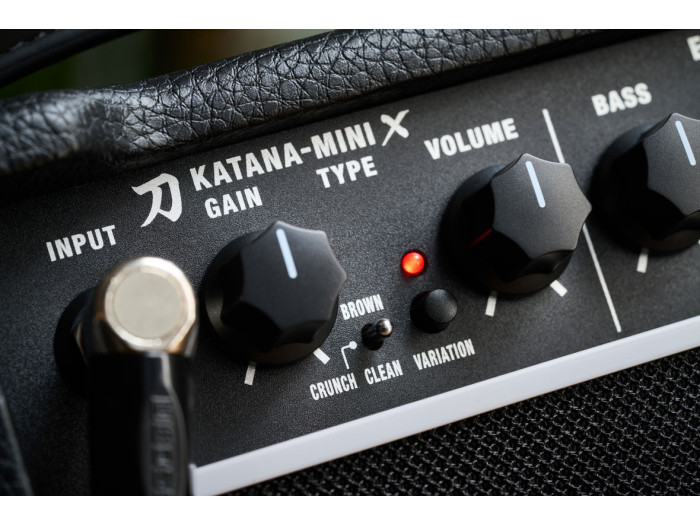

• Main Controls:
◦ POWER switch
◦ TYPE switch
◦ VARIATION button
◦ GAIN knob
◦ VOLUME knob

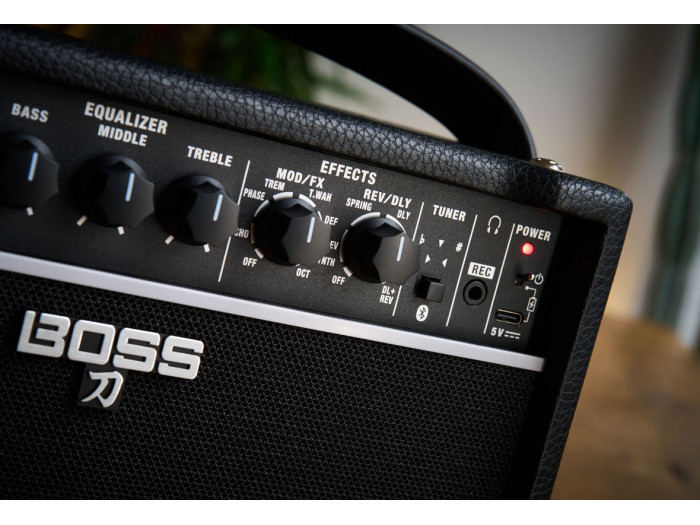

• Equalizer:
◦ BASS knob
◦ MIDDLE knob
◦ TREBLE knob

• Effects:
◦ MOD/FX knob
◦ REV/DLY knob

• Tuner/Bluetooth:
◦ TUNER/Bluetooth button

INDICATORS

• Indicators:
◦ POWER
◦ VARIATION
◦ TUNER/Bluetooth

CONNECTORS

• INPUT jack: 1/4-inch phone type
• PHONES/REC jack: Stereo miniature phone type
• 5 V (DC IN) port: USB Type-C(R)

ACCESSORIES

• Included Accessories:
◦ Leaflet "Read Me First"
◦ USB Type-C(R) to USB Type-A cable for charging

SIZE AND WEIGHT

• Width: 287 mm
◦ Inches: 11-5/16 inches

• Depth: 145 mm
◦ Inches: 5-3/4 inches

• Height: 200 mm
◦ Inches: 7-7/8 inches

• Weight (including strap): 2.7 kg
◦ Pounds: 6 lbs
