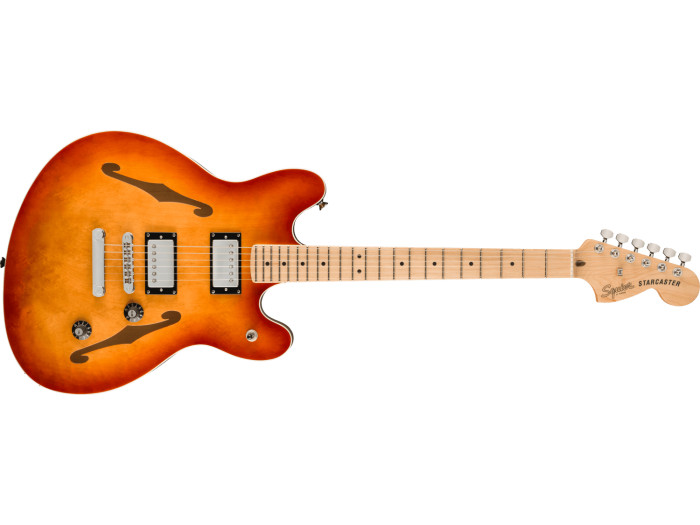

The Starcaster® broke the mold of semi-hollow guitar design with its offset body shape when it was introduced in the '70s, offering versatile sound and out-of-this-world styling for the most adventurous players. The Affinity Series® Starcaster Deluxe features several player-friendly refinements such as a lightweight semi-hollow body, a slim and comfortable “C”-shaped neck with familiar Stratocaster® headstock, an adjustable bridge with stop tailpiece for solid tuning stability and sealed die-cast tuning machines with split shafts for smooth, accurate tuning and easy restringing. Loaded with a pair of Squier humbucking pickups with 3-way switching for genre-defying sonic variety, this model is ready to accompany any player at any stage.
BODY

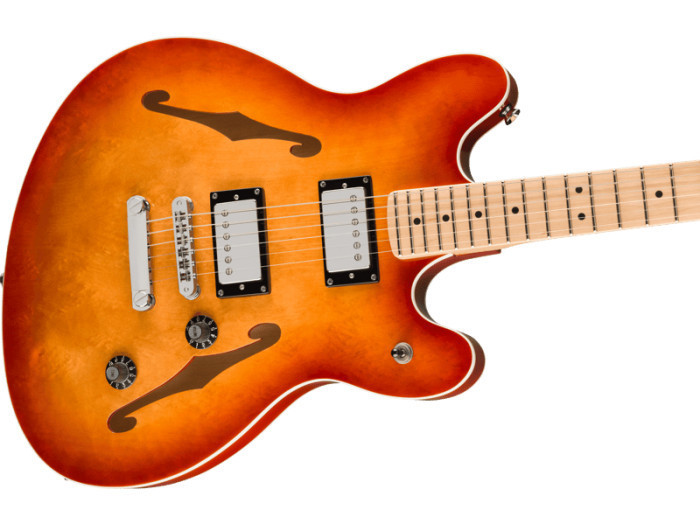

• Body: Laminated Maple with Center Block
• Body Binding: White
• Body Finish: Gloss Polyurethane
• Body Material: Laminated Maple with Center Block
• Body Shape: Starcaster®
ELECTRONICS
• Bridge Pickup: Ceramic Humbucker
• Controls: Master Volume, Master Tone
• Neck Pickup: Ceramic Humbucker
• Pickup Configuration: HH
• Switching: 3-Position Blade
◦ Position 1. Bridge Pickup
◦ Position 2. Bridge and Neck Pickups
◦ Position 3. Neck Pickup
GENERAL
• Color: Sienna Sunburst
• Orientation: Right-Hand
• Platform: Squier Guitars
• Product Name: Affinity Series® Starcaster® Deluxe, Maple Fingerboard, Sienna Sunburst
• Series: Affinity Series®
HARDWARE
• Bridge: 6-Saddle Fully Adjustable
• Control Knobs: Black Skirted Plastic with Numbered Indicators
• Hardware Finish: Chrome
• Neck Plate: 4-Bolt Squier®
• Pickup Covers: Chrome
• Strap Buttons: Standard
• String Trees: Dual-Wing
• Strings: Nickel Plated Steel (.009-.042 Gauges)
• Switch Tip: Black
• Tuning Machines: Sealed Die-Cast with Split Shafts
MEASUREMENTS
• Fret Size: Medium Jumbo
• Scale Length: 25.5" (648 mm)
MISCELLANEOUS
• Style: 2 Humbucking
NECK
• Fingerboard Material: Maple
• Fingerboard Radius: 9.5" (241 mm)

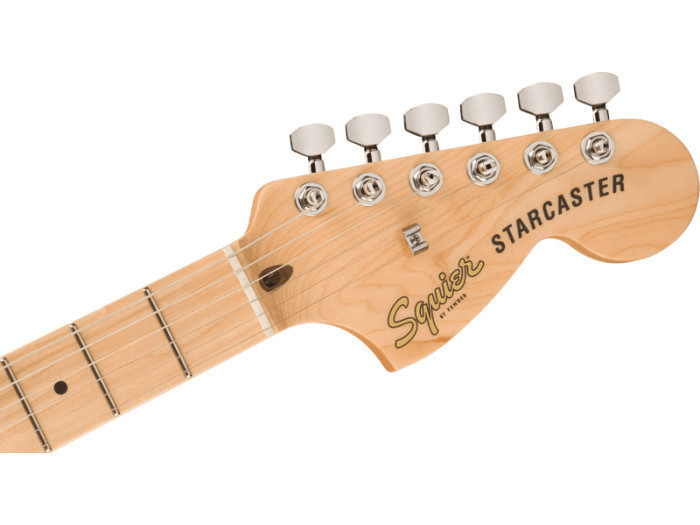

• Headstock: Stratocaster® Large
• Neck Construction: Bolt-On
• Neck Finish: Satin Urethane with Gloss Urethane Headstock Face
• Neck Material: Maple
• Neck Shape: "C" Shape
• Number of Frets: 22
• Nut Material: Synthetic Bone
• Nut Width: 1.65" (41.91mm)
• Position Inlays: Black Dot
• Side Dots: Black
• String Nut: Synthetic Bone
• Truss Rod: Head Adjust
