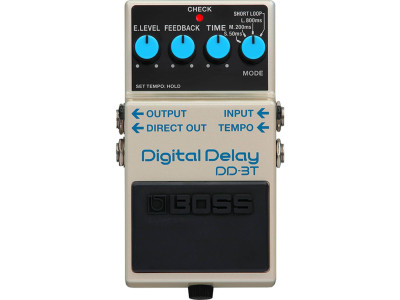

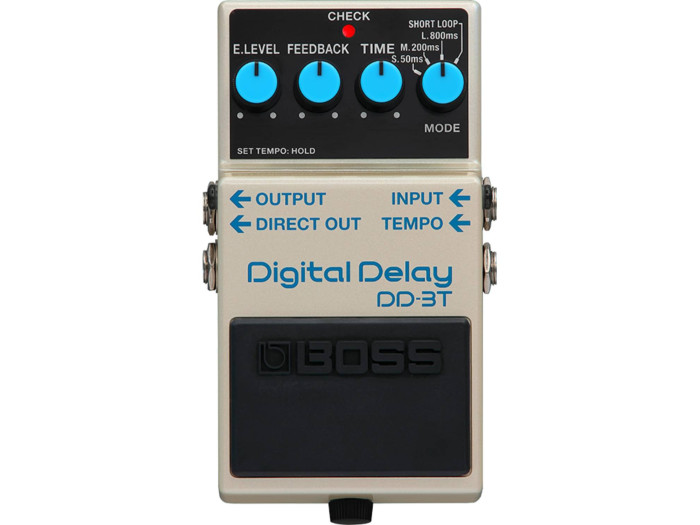

BOSS’s iconic DD-3 Digital Delay has been a pedalboard staple since 1986, loved everywhere for its great sound and simple operation. With the DD-3T, we’ve updated the classic stomp with enhanced functionality while fully retaining the original’s sound and control layout. It’s now possible to tap in delay tempos using the onboard switch or an external one, with your choice of three beat subdivisions. And the direct output jack has been moved next to the main output, providing easier connectivity for wet/dry setups.
Nominal Input Level: -20 dBu
Input Impedance: 1 MΩ
Nominal Output Level: -20 dBu
Output Impedance: 1 kΩ
Recommended Load Impedance: 10 kΩ or greater
Bypass: Buffered bypass
Controls:
- MODE knob
- TIME knob
- FEEDBACK knob
- E.LEVEL (Effect Level) knob
- Pedal switch
Indicator: CHECK indicator (used for indication of check battery)
Connectors:
- INPUT jack: 1/4-inch phone type
- OUTPUT jack: 1/4-inch phone type
- DIRECT OUT jack: 1/4-inch phone type
- TEMPO jack: 1/4-inch phone type
- DC IN jack
Power Supply:
- Alkaline battery (9 V, 6LR61)
- AC adaptor (PSA series, sold separately)
Current Draw: 70 mA
Expected Battery Life Under Continuous Use:
- Alkaline: Approx. 5 hours
* These figures will vary depending on actual conditions of use.
Accessories:
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
- Alkaline battery (9 V, 6LR61)
Options (Sold Separately):
- AC adaptor: PSA series
- Footswitch: FS-5U, FS-6, FS-7
Size and Weight:
Width: 73 mm (2-7/8 inches)
Depth: 129 mm (5-1/8 inches)
Height: 59 mm (2-3/8 inches)
Weight (Including Battery): 420 g (15 oz)
