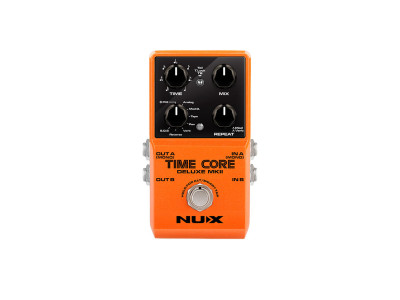

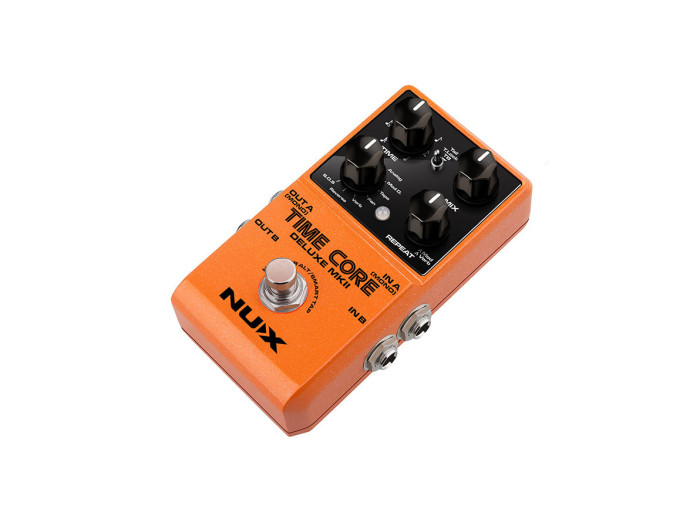

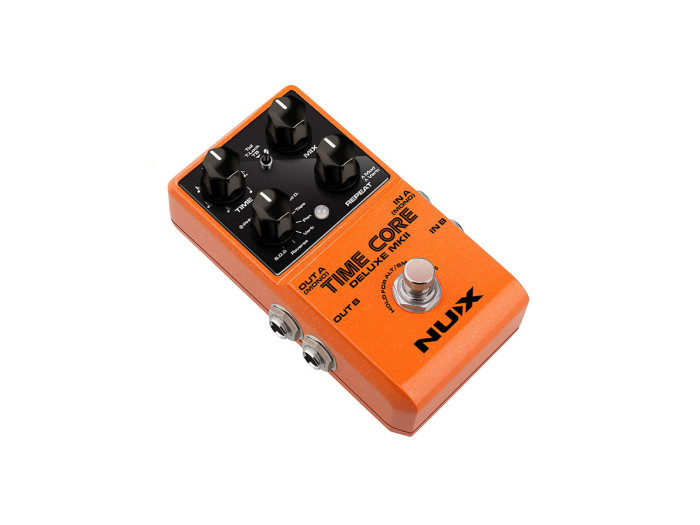

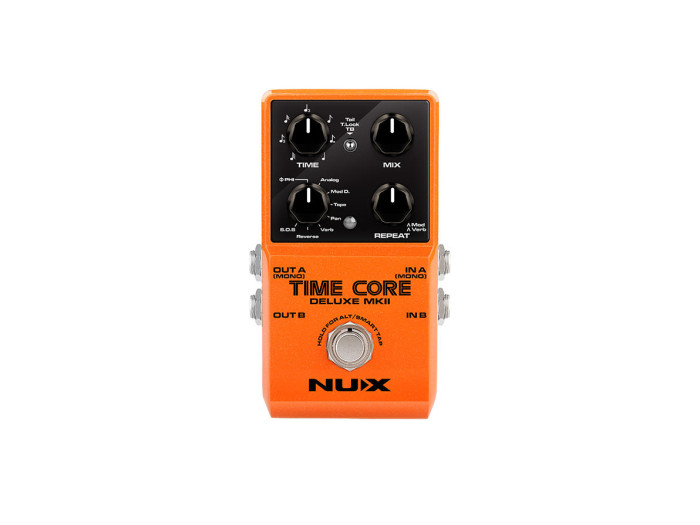

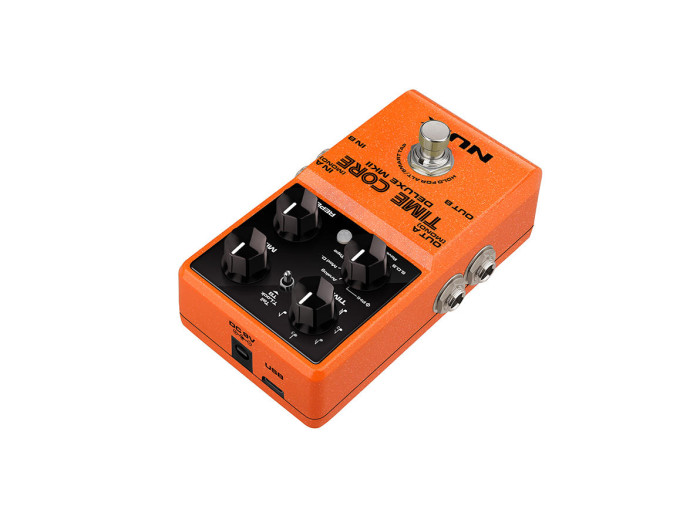

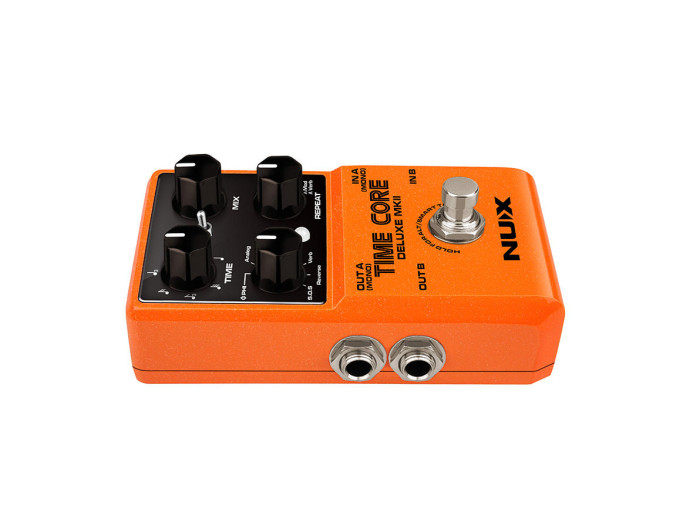

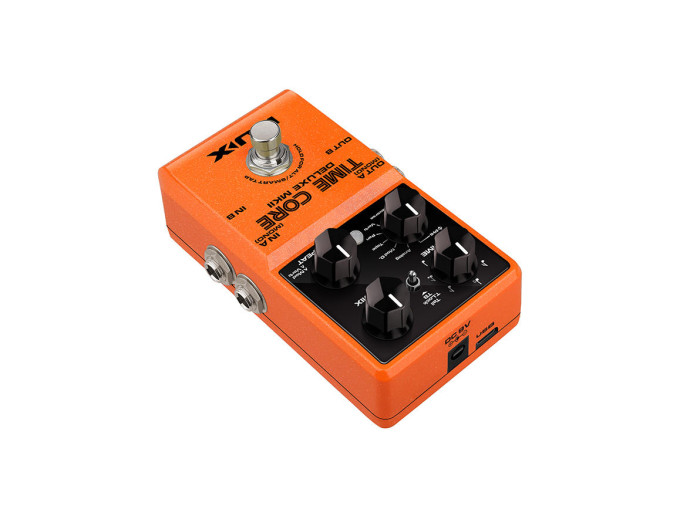

The NUX TIME CORE DELUXE MKII is a delay pedal with 7 different types and a phrase looper; including ΦPhi Digital Delay, Analog Delay, Modulation Delay, Tape Echo, Pan Delay, Verb Delay, Reverse Delay and Sound On Sound. You can switch the delay type by using the Type rotary switch.
ΦPhi Digital Delay is a digital delay with golden ratio 2nd repeat head. It makes your guitar sound more musical. With no-brain tweaking, setup the desired sub-division, smart tap tempo, you’re ready to go.
ΦPhi Digital Delay Range: 80ms~1000ms
Analog Delay is based on the timeless BBD (Bucket Brigade Device) delay. It produces a very warm sound with natural treble decay. Very suitable for ballad solo’s with romantic atmosphere. Our unique algorithm replicates the physical infinity oscillation feedback while you adjust the time knob from max to min quickly.
Analog Delay Range: 40ms~403ms
Modulation Delay is based on the Ibanez DML modulation delay. The Chorus gets lush and rich, not at all what you would expect from an ancient digital pedal. Holding the footswitch enters Alt mode (the LED indicator will flash ORANGE.), then the Repeat knob will edit the Mod parameter of this delay. Short press the footswitch again to quit Alt mode.
Modulation Delay Range: 20ms~1500ms
Tape Echo is based on the legendary Space Echo machine. We digitally recreated the retro-feel of a real tape and capstan configuration. Tape Echo has the high-frequency saturation and low-end decay of magnetic tape. It’s gently modulated for added richness and color. Adjust the time knob from max to min quickly, and you’ll get the infinity feedback effect.
Tape Echo Range: 55ms~552ms
Pan Delay simply moves a mono signal to different places in the stereo field. Our Pan Delay algorithm changes ordinary panning to “gourmet” panning that involves not only stereo placement but interesting imaging possibilities. It will allow pan moves to feel less extreme where you need placements to feel natural, and more extreme when you want to create sonic ear-candy inside your headphones.
Pan Delay Range: 80ms~1000ms
Verb Delay features our Plate Reverb algorithm with Digital Delay to create an ambient atmosphere. Hold the footswitch to enter Alt mode to adjust the Verb parameter through Repeat knob, short press the footswitch to quit Alt mode.
Verb Delay Range: 80ms~1000ms
Reverse Delay, a truly classic effect: Record a guitar part on tape. Flip the tape over. Play it back. Made popular by guitar legend Jimi Hendrix, the Reverse Delay still inspires people to let their hair down and try out new sonic possibilities
Reverse Delay Range: 320ms~1240ms
S.O.S, Sound On Sound is a 40 seconds stereo phrase looper for guitarists to practice and create new ideas. While in playback, you can quit S.O.S to select another delay mode and use the effect to play, without interrupting the playback. (Note: When quitting S.O.S mode to another delay, the delay effect will be engaged.)
An Intuitive User Interface
null
Adjusts the delay time. Set the knob parameter to your desired sub-division, then use the Smart Tap Tenpo to get sub-division delay time related to tap tempo.
Time range related to the models:
ΦPhi Digital Delay: 80ms~1000ms
Analog Delay: 40ms~ 403ms
Modulation Delay: 20ms ~ 1500ms
Tape Echo: 55ms ~ 552ms
Pan Delay: 80ms ~ 1000ms
Verb Delay: 80ms ~ 1000ms
Reverse Delay: 320ms ~ 1240ms
*Note: The maximum delay time is 1580ms by Smart Tap Tempo.
Mix knob
Adjusts the wet/dry mixing level of delay，from 0% up to 100% when you turn the knob clockwise.
Delay Type knob
Repeat knob
Adjusts the repeat numbers of delay. In Mod D. or Verb, hold the footswitch to enter to Alt mode, (the LED indicator will flash ORANGE), Now the Repeat knob will adjust the Mod or Verb parameter. Short press the footswitch to quit Alt mode.
