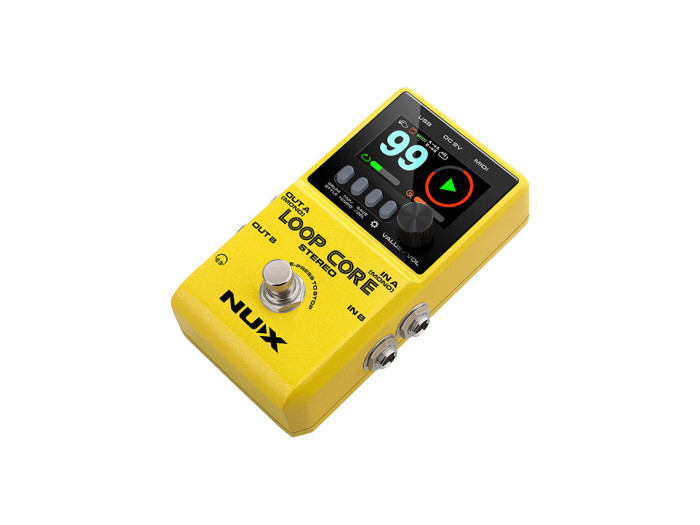

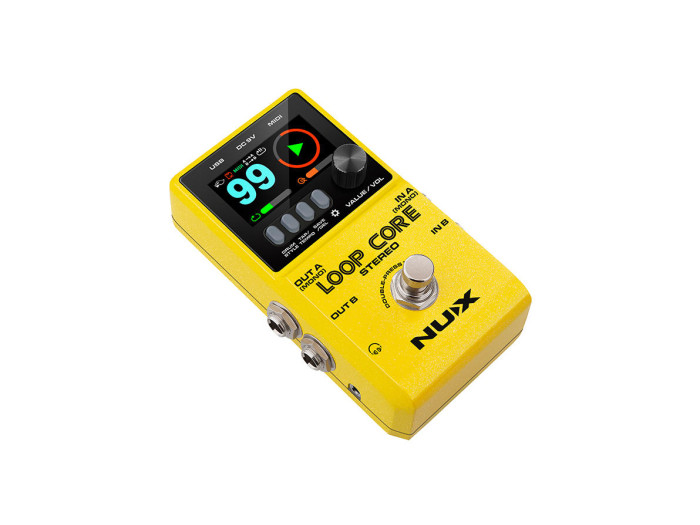

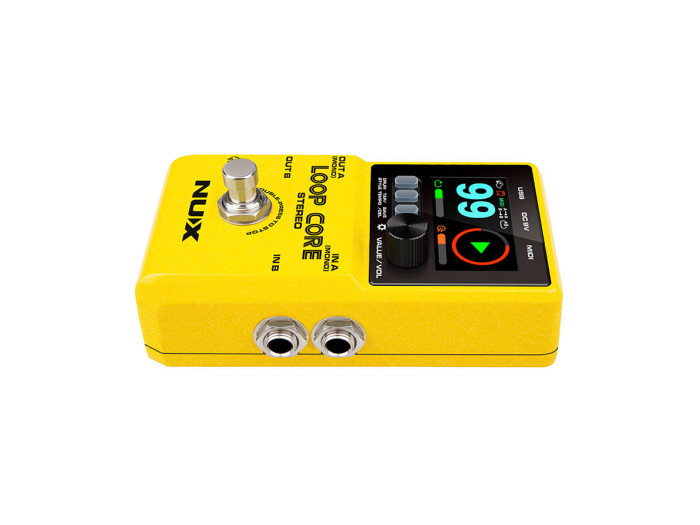

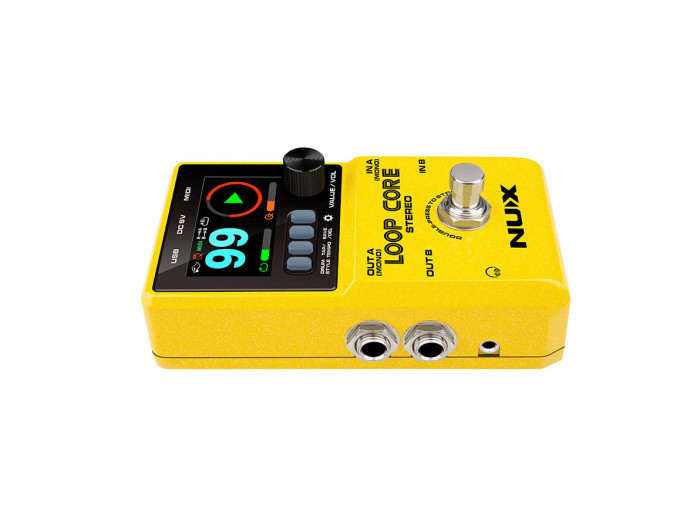

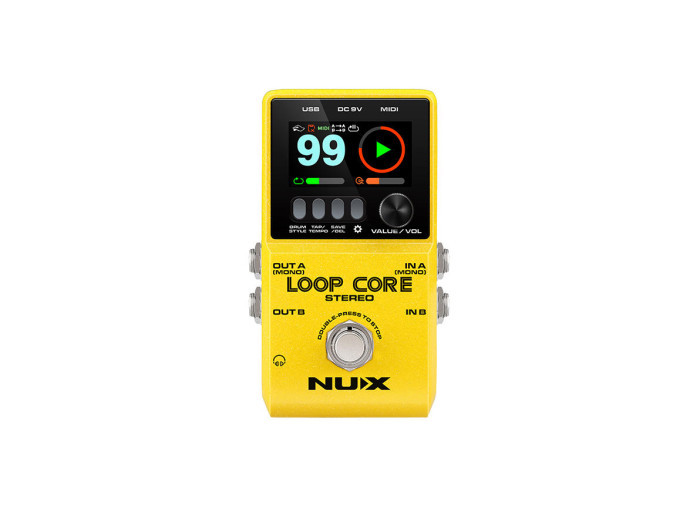

The NUX Loop Core Stereo is our next generation Looper pedal. Featuring a high-definition color LCD display, stereo inputs/outputs, and a MIDI control input; the Loop Core Stereo allows you to create up to 6 hours of music phrases, save them in one of 99 provided memory slots, and play back as stereo loops! Also included are 50 different drum patterns to complete the looping experience. Whether you practice, compose, or play live gigs, you’ll be inspired from the very first loop!
It’s easy to create loops and practice with the NUX Loop Core Stereo.
Power on the Loop Core Stereo pedal, rotate the VALUE knob to select an empty memory from 01 ~ 99, then you can press the foot switch to record/play/dub your loops. You can also hold the foot switch to UNDO/REDO/CLEAR.
Turn the VALUE knob to select a memory slot between 01~99 or adjust parameters.
When you are working on loops or practicing, press the VALUE knob once/twice to adjust the volume of Loop/Drum.
4 example setups with the Loop Core Stereo.
Setup 1
Mono in, mono out.
This is the most common loop pedal setup for guitarists. Plug in a guitar to the A/Mono input on the Loop Core Stereo and connect A/Mono output directly to a guitar amplifier. And finally, set the AUDIO PATH as shown below.
Setup 2
Stereo in, stereo out.
Set the AUDIO PATH as shown below.
Setup 3
OUT A for guitar, OUT B for drum machine.
To get the best sounds, you can connect the Loop Core Stereo to a guitar amplifier and a full-range frequency amplifier.
Set the AUDIO PATH as shown below. This will split the guitar signal and drum machine signal to OUT A & OUT B individually.
Setup 4
Both OUT A & B to a mixer.
When you are playing at home or in the studio with a mixer and/or PA system, you can connect the Loop Core Stereo to control the mix of your guitar and drum machine individually. Additionally, this setup includes a frequency compensation function to get a better signal from OUT A.
Set the AUDIO PATH as shown below.
