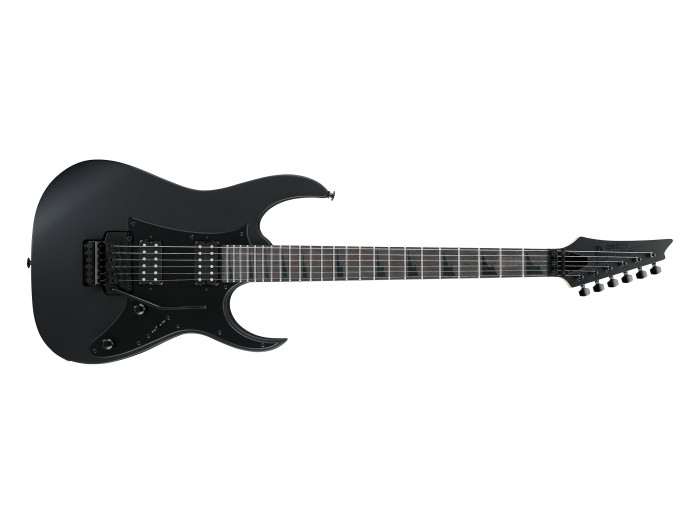

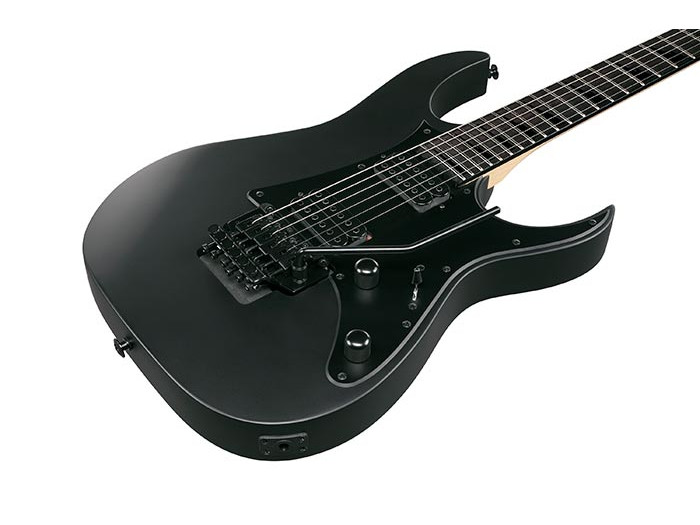

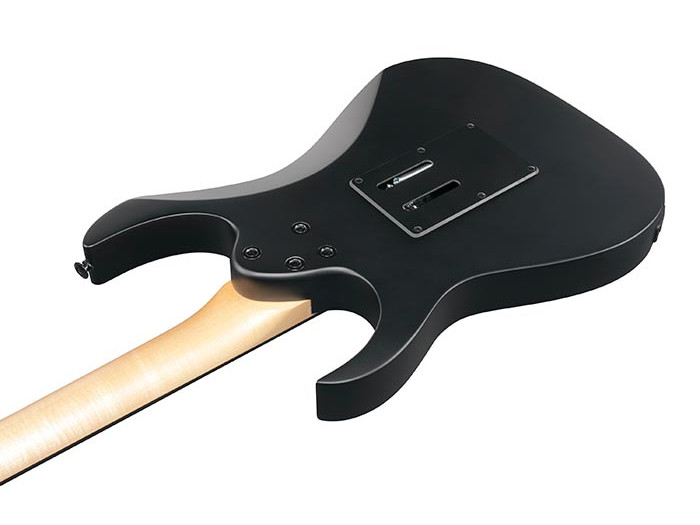

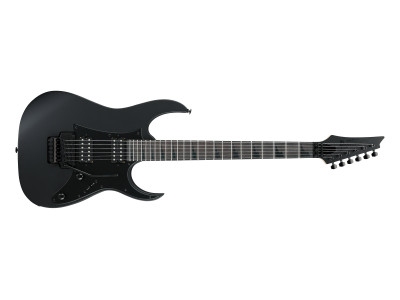

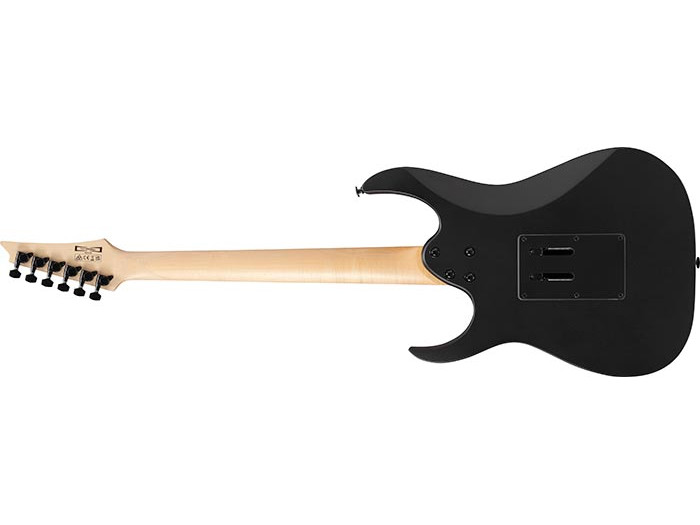

Ibanez GRGR330EX-BKF Black Flat

Maple neck

The Maple neck provides stability and bright tonal character.

Purpleheart fretboard

The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this guitar.

Double Locking tremolo

The Double Locking system holds your guitar in tune even under aggressive on-stage abuse.

Mono-u

nit output jackMono-unit output jack

The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.

 neck type GRGMaple neck

top/back/body Poplar body

fretboard Bound Purpleheart fretboardReveresed Black Sharktooth inlay

fret Medium frets

number of frets 24

bridge Double Locking bridge

string space 10.5mm

neck pickup Infinity R (H) neck pickupPassive/Ceramic

bridge pickup Infinity R (H) bridge pickupPassive/Ceramic

factory tuning 1E,2B,3G,4D,5A,6E

string gauge .009/.011/.016/.024/.032/.042

nut Locking nut

hardware color Black

NECK DIMENSIONS

Scale : 648mm/25.5"

a : Width 43mm at NUT

b : Width 58mm at 24F

c : Thickness 19.5mm at 1F

d : Thickness 21.5mm at 12F

Radius : 400mmR
