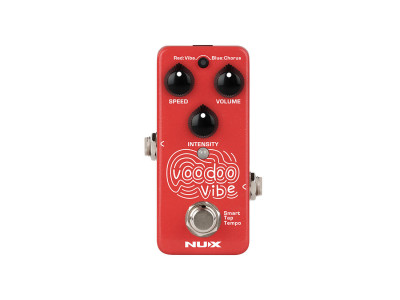

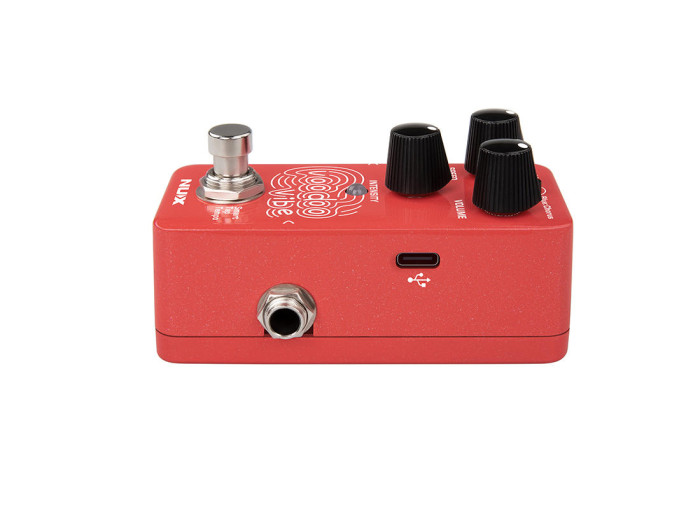

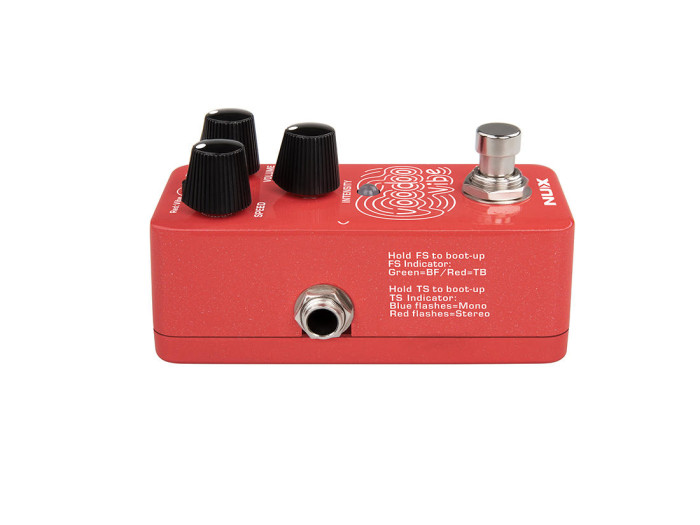

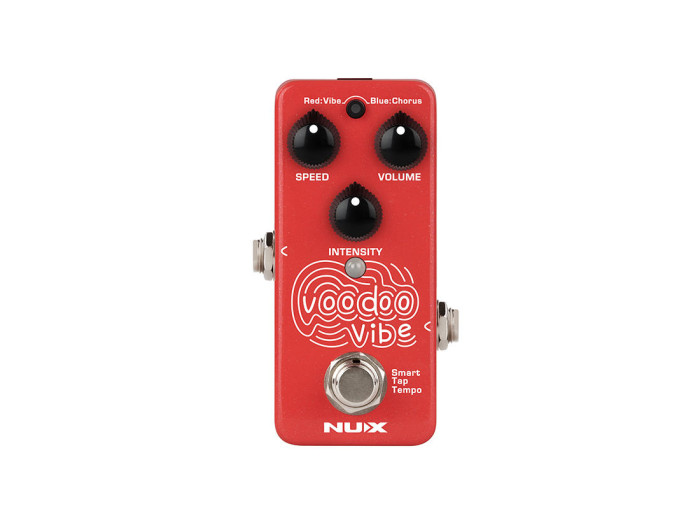

Nux Voodoo Vibe (NCH-3)

 THE TIMELESS UNI-VIBE DELIVERED ITS HUGE 3D SOUND BY SIMULATING THE PHYSICAL ROTATING SPEAKER EFFECT.

Voodoo Vibe was inspired by the Dunlop® Uni-Vibe® for its gorgeous sound easily associated with Hendrix’s bending facial expressions in his 60s stage performances.

NUX's modern-tech DSP yields a perfect combination of both worlds: analog and digital. Unlike the original Uni-vibe, now you can power the Voodoo Vibe with 9V instead of 18V. Using DSP technology, NUX is able to offer a mini pedal with Smart Tap Tempo function. And it’s easier to enhance the Chorus mode without volume drop issues in the digital world, while still retaining the same good vibes and analog sound.

• 2 models in a mini enclosure.
• Chorus mode, Intensity will change the depth of the sweeping effect.
• Vibrato mode, Intensity will change the degree of pitch modulation.
• Smart Tap Tempo.
• True-bypass or Buffer-bypass(Tails).
• Supports Stereo I/O with TRS Cable.
• Low power consumption. (Less than 100mA).
• Analog dry signal for low noise and zero latency.

Specifications:

• Input Impedance：1MΩ
• Output Impedance：10kΩ
• Dynamic Range: 103 dB
• DSP Processing: 48KHz / 32-bit
• A/D D/A Sampling Rate: 48KHz / 24-bit

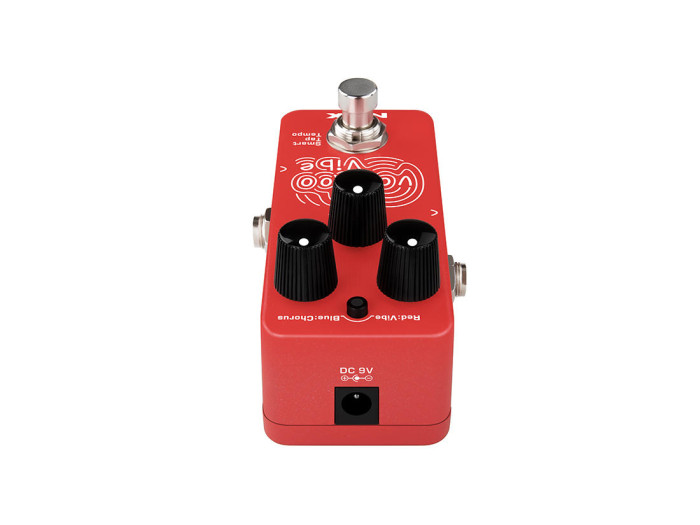

• Power：9V DC(Negative tip, Optional ACD-006A adapter)
• Current Draw：less than 100mA
• Dimensions：94(L)X51(W)X53(H)mm
•
• Weight：175g
