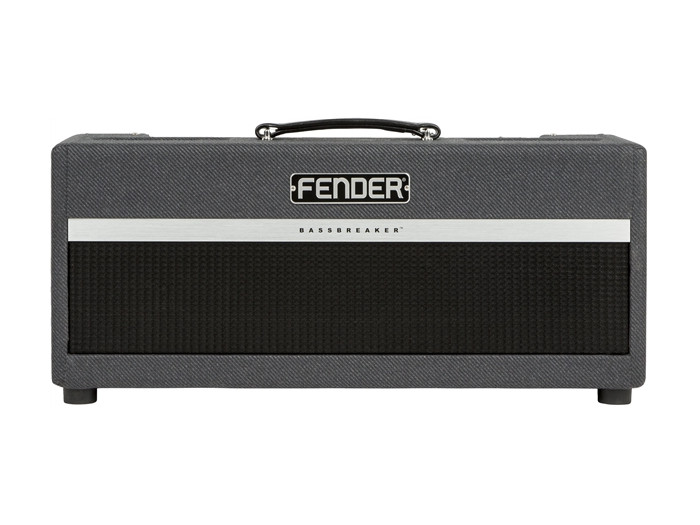

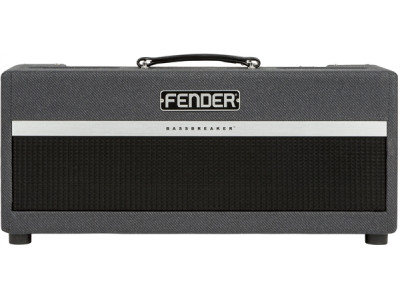

Fender Legacy Bassbreaker 45 Head

PARALLEL EVOLUTION

Flexibility is the name of the game for the flagship Bassbreaker 45 Head, the latest evolution of the "granddaddy" of almost all amps—the '59 Bassman®. This amp delivers grit, crunch and grunt in style, along with mile-wide dynamic range and redefined dirty tube tones. This powerful, roadworthy beast dishes out plenty of authentic Fender sound with a modern twist.

• 45-watt head
• Three 12AX7 preamp tubes and two EL34 power tubes for hard rockin’ tone
• Three inputs for “channel jumping”
• Variable output knob goes from one to 45 watts
• Includes protective amp cover

ELECTRONICS

• Voltage

230V EUR

• Wattage

45 watts

• Controls

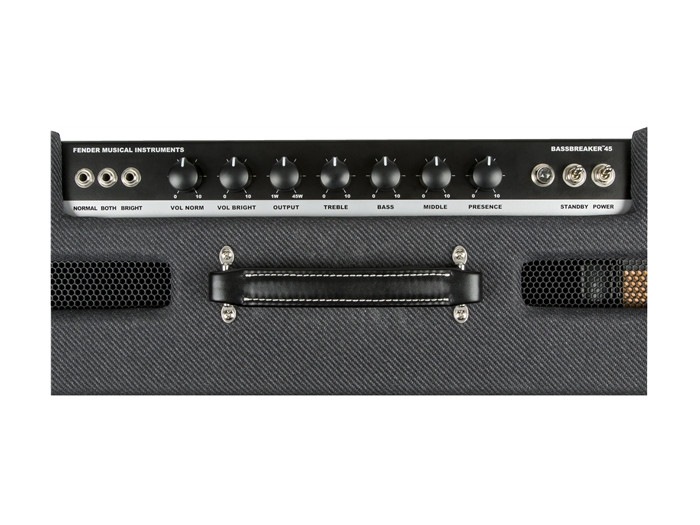

Volume Normal, Volume Bright, Output, Bass, Middle, Treble, Presence

• Channels

Two - (Normal and Bright)

• Inputs

Three - Normal, Bright, Both

• Speaker Jack

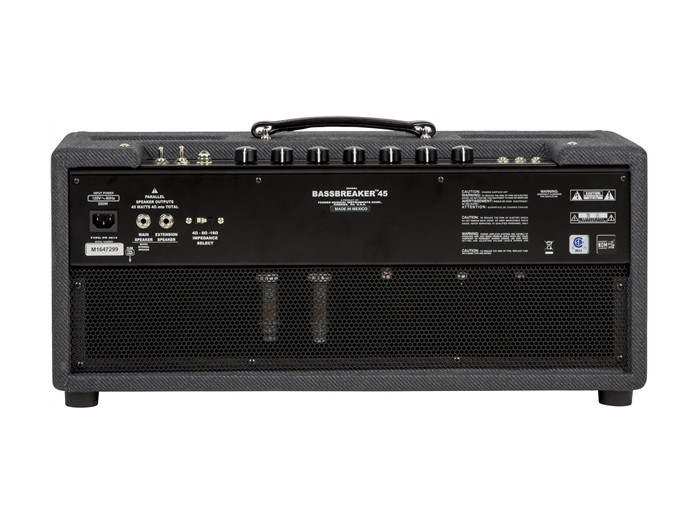

Main speaker jack disconnects internal speaker to allow the amp’s 1/4” output to be used with external speaker enclosures. Impedance select switch can be set to 4, 8 or 16 ohms.

HARDWARE

• Cabinet Material

7-ply 3/4" Meranti plywood

• Amplifier Covering

Gray Tweed

• Grille Cloth

Black

• Amplifier Jewel

White Jewel

• Front Panel

Black

• Handle

Black Leather Handle

MISCELLANEOUS

• Legal Notice

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

SPEAKERS

• Speakers

N/A

• Total Impedance

4, 8, or 16 ohms

TUBES

• Preamp Tubes

3 x 12AX7

• Power Tubes

2 X EL34

• Rectifier

Solid State

ACCESSORIES

• Footswitch

NA

MEASUREMENTS

• Amp Height

10.75" (27.3 cm)

• Amp Depth

8.5" (21.6 cm)

• Amp Width

26.22" (66.6 cm)

• Amp Weight

32 lbs. (14.5 kg)
