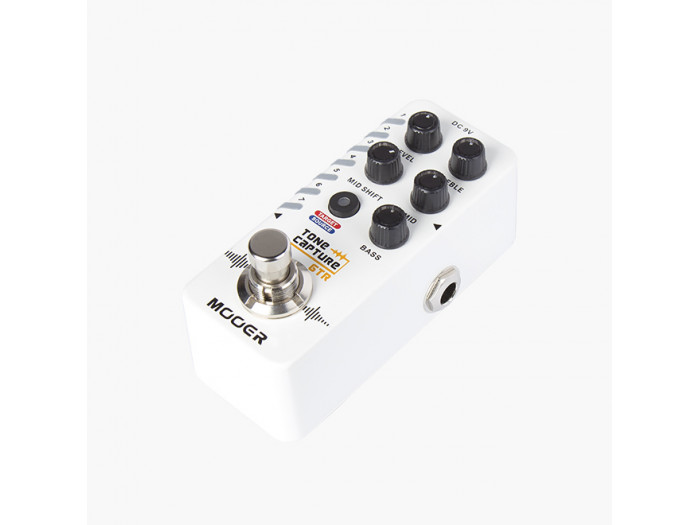

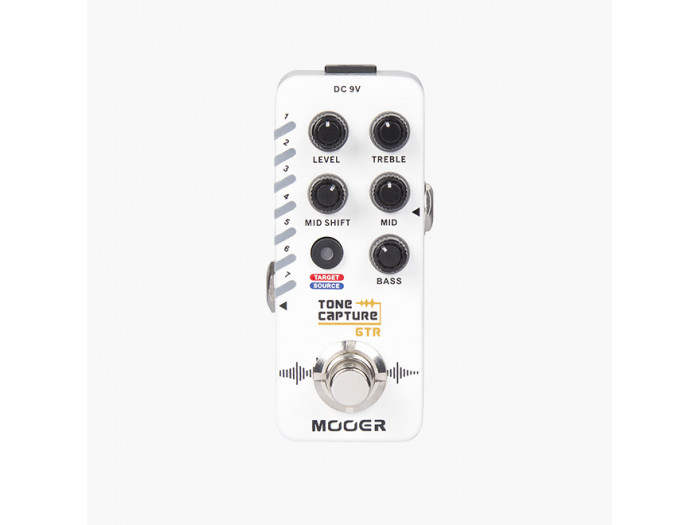

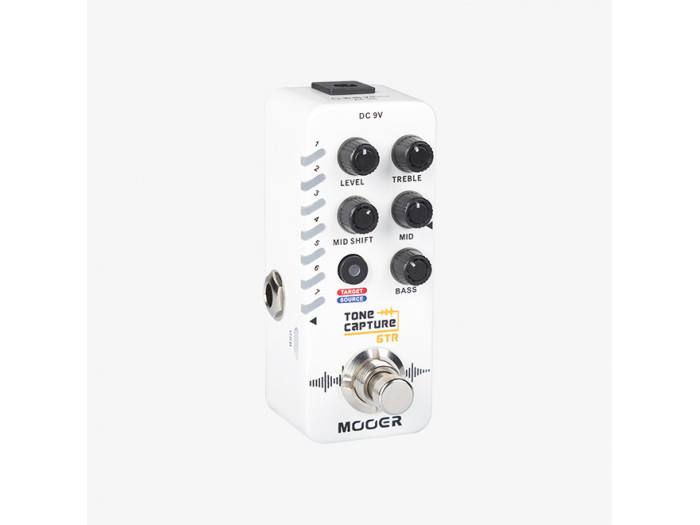

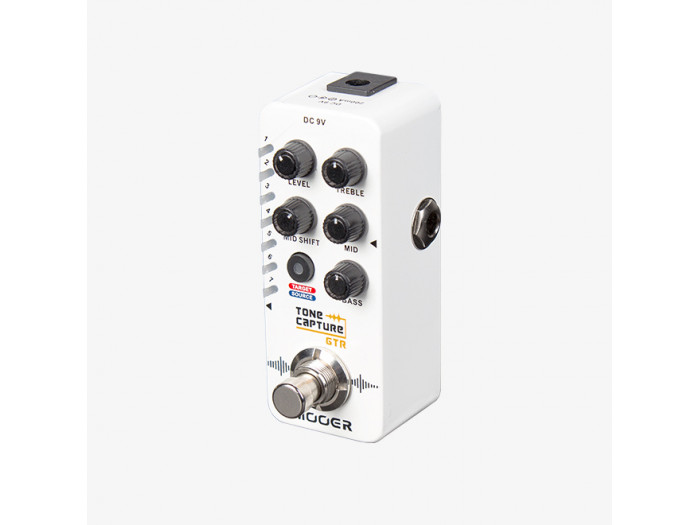

MOOER Tone Capture

The TONE CAPTURE Guitar pedal is based on MOOER’s unique EQ matching technology, TONE CAPTURE. This pedal allow you to capture any guitar’s tone

by sampling the unique tonal characteristics of the target guitar.

The days of lugging around multiple guitars are over. The Tone Capture Guitar pedal opens up a variety of guitar sounds without the need to carry several guitars.

Need 8 bars of acoustic? Don’t want to take your vintage strat to the gig?

You can sample the unique tonal qualities of any of your guitars at home and carry them around with you in the compact TONE CAPTURE GTR pedal!

Input: 1/4" mono jack (impedance 2.2M Ohms)

Output: 1/4" mono jack (impedance 100Ohms)

Power supply: 9V DC transformer (internal negative external), MOOER Micro Power is recommended

Current Draw: 150mA

Dimensions: 93.5mm(D) x 42mm(W) x 52mm(H)

Weight: 155g

Accessories: User Manual* Disclaimer: Parameter update without notice.
