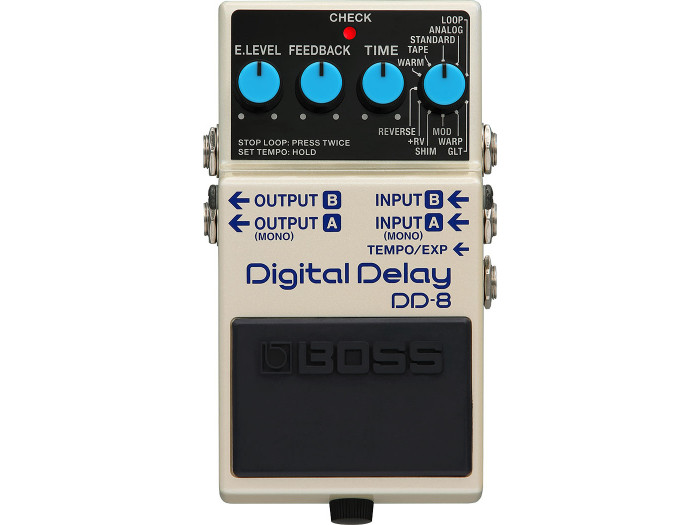

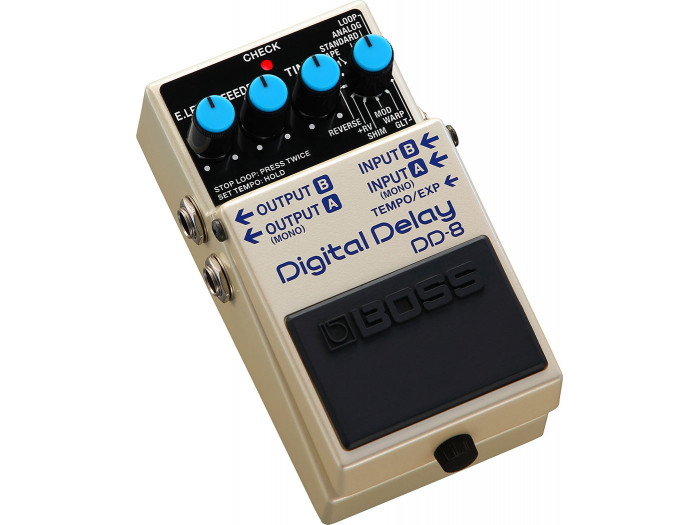

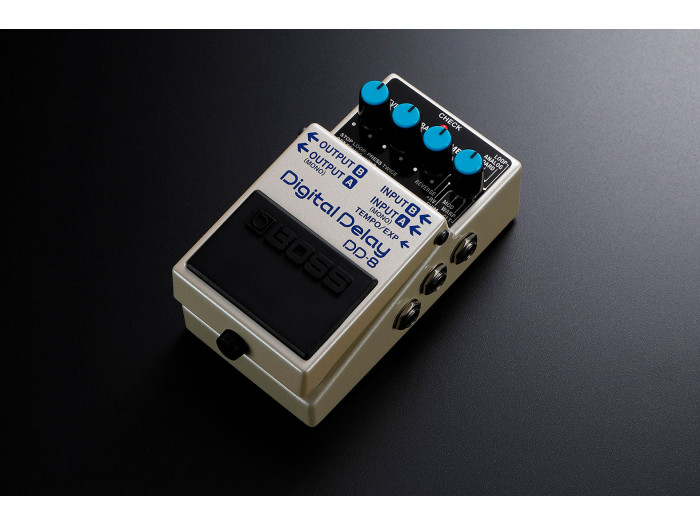

Boss DD-8 Digital Delay

• The most advanced BOSS compact series delay ever
• Eleven versatile modes include basic digital delay, vintage echoes, shimmer, mod, looper, and more
• Looper offers up to 40 seconds of recording time, overdub capability, and three-pedal operation with external footswitches
• Three newly developed delay types: Warm, +RV (delay+reverb), and GLT (rhythmic delay)
• Up to 10 seconds of delay time available with tap tempo input
• Carryover switch sets whether delay trails continue or stop when the effect is bypassed
• True stereo I/O and three selectable output modes (independent, panning, and wide stereo)
• Smart I/O jacks support a variety of connection setups (mono, stereo, wet/dry, wet only, and more)
• Support for external control with two footswitches or an expression pedal
• Unique Twist function available in each delay mode via an external footswitch

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass

CONTROLS

• MODE knob
• TIME knob
• FEEDBACK knob
• E.LEVEL (Effect Level) knob
• CARRYOVER switch
• Pedal switch

INDICATOR

• CHECK indicator: Used for indication of check battery

CONNECTORS

• INPUT-A(MONO)/INPUT-B jack: 1/4-inch phone type
• OUTPUT-A(MONO)/OUTPUT-B jack: 1/4-inch phone type
• TEMPO/EXP jack: TRS 1/4-inch phone type
• DC IN jack

POWER SUPPLY

• Alkaline battery (9 V, 6LR61)
• AC adaptor (PSA series: sold separately)

CURRENT DRAW

• Current Draw: 100 mA
• Expected battery life under continuous use: Alkaline: Approx. 3.5 hours
• These figures will vary depending on the actual conditions of use.

ACCESSORIES

• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
• Dry battery (9 V, 6LR61)

OPTIONS (SOLD SEPARATELY)

• AC adaptor: PSA series
• Footswitch: FS-5U, FS-6, FS-7
• Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5

SIZE AND WEIGHT

• Width: 73 mm / 2-7/8 inches
• Depth: 129 mm / 5-1/8 inches
• Height: 59 mm / 2-3/8 inches
• Weight (including battery): 440 g / 1 lb
• 0 dBu = 0.775 Vrms
