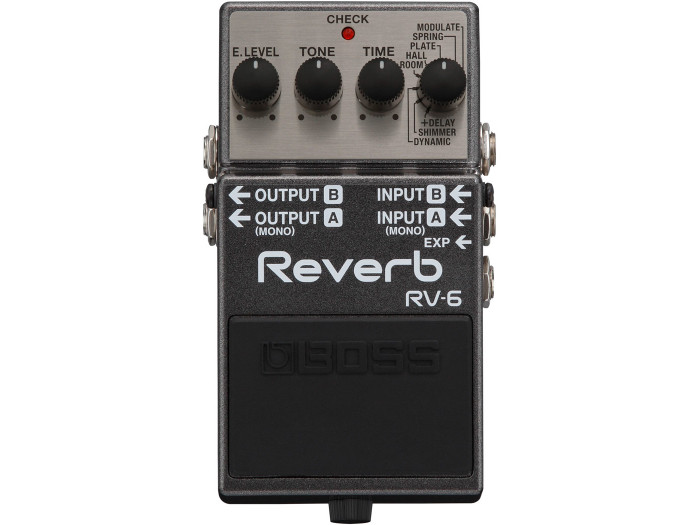

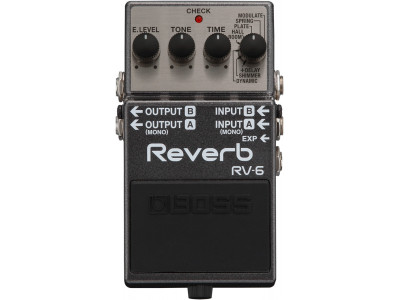

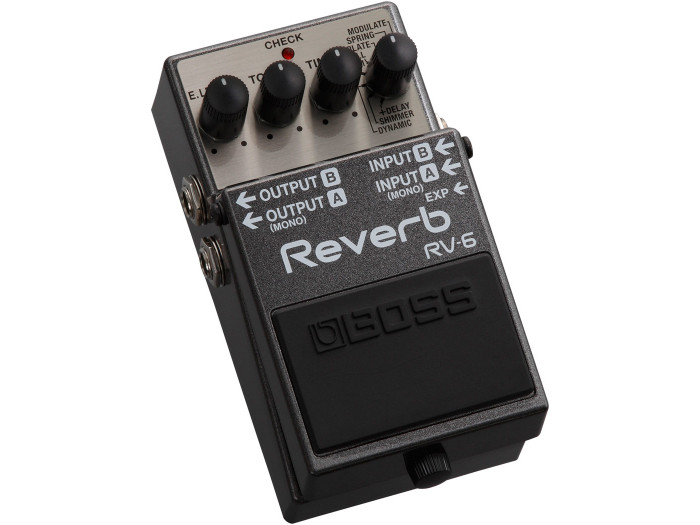

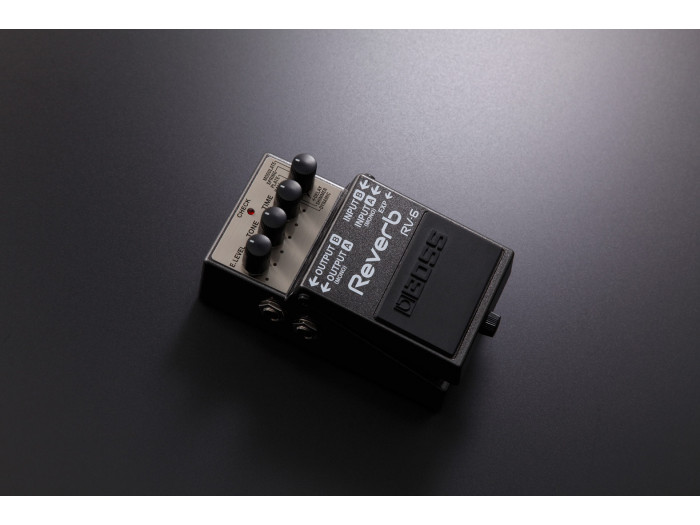

Boss RV-6 Reverb

Compact and versatile reverb pedal with rich, expansive sound

• Dial in sophisticated, top-level reverb tones quickly with simple controls
• Newly developed studio-grade algorithms powered by cutting-edge BOSS technology
• Eight sound modes provide a diverse range of ready-to-play reverb effects
• Shimmer, Dynamic, and Delay+Reverb modes deliver lush, immersive textures sought by modern players
• Input for controlling reverb level with an optional expression pedal
• Supports mono or stereo operation




Reverb Modes:

• HALL
• PLATE
• ROOM
• SPRING
• MODULATE
• +DELAY
• SHIMMER
• DYNAMIC

Nominal Input Level: -20 dBu

Input Impedance: 1 MΩ

Nominal Output Level: -20 dBu

Output Impedance: 1 kΩ

Recommended Load Impedance: 10 kΩ or greater

Controls:

• Pedal switch
• E.LEVEL knob
• TONE knob
• TIME knob
• MODE knob

Indicator: CHECK indicator (serves also as battery check indicator)

Connectors:

• INPUT-A (MONO) jack
• INPUT-B jack
• OUTPUT-A (MONO) jack
• OUTPUT-B jack
• EXP jack
• AC adaptor jack (DC 9 V)

Power Supply:

• Alkaline battery (9V, 6LR61)
• AC adaptor (sold separately)

Current Draw: 95 mA

Expected Battery Life Under Continuous Use:

• Alkaline: Approx. 3 hours
  * These figures will vary depending on actual conditions of use.

Accessories:

• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
• Alkaline battery (9V, 6LR61)

Options (Sold Separately):

• AC adaptor: PSA series
• Expression Pedal: BOSS FV-500H, FV-500L, Roland EV-5

Size and Weight:

Width: 73 mm (2-7/8 inches)

Depth: 129 mm (5-1/8 inches)

Height: 59 mm (2-3/8 inches)

Weight (Including Battery): 450 g (1 lb)

* 0 dBu = 0.775 Vrms
