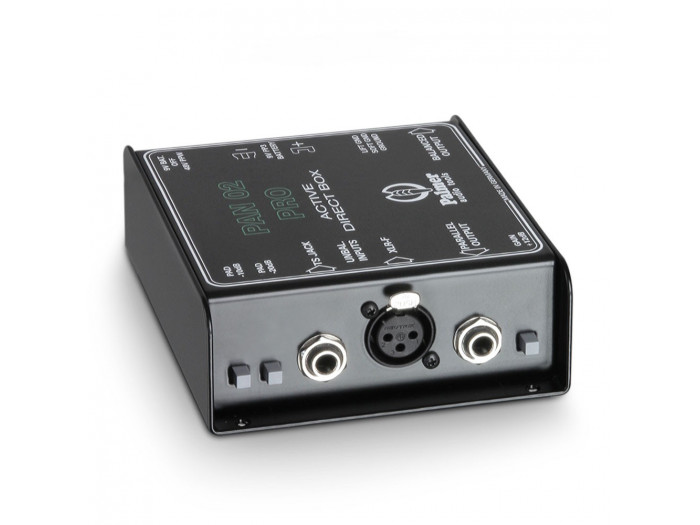

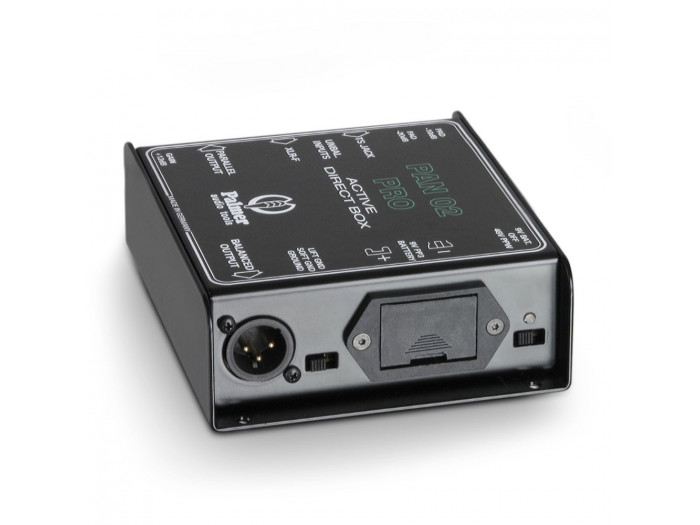

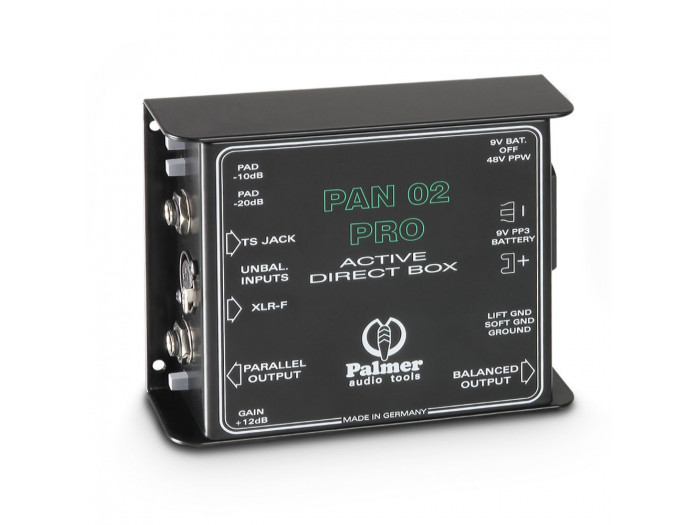

Palmer Pro PAN 02 PRO

The Palmer PAN02 PRO is an active DI-box with outstanding additional functions. These include an unbalanced XLR input, in addition to the 3-way attenuator -10, -20, -30 dB and a switchable gain of 12 dB, connected with a maximum output voltage of +20 dBu. The Groundlift switch has a "lift" position allowing adjustments between a "soft and hard grounding" . The balanced output is achieved with a high quality transformer in the Mumetall housingthat was specially developed for this purpose. The PAN02 Pro can be powered either with a 9 V battery or 48 V phantom power. A two-colour LED indicates which source supplies the power.

• Product type: DI Boxes
• Type: active
• Channels: 1
• Inputs: 2
• Input connectors: 6.3mm jack , XLR
• Max. input level: + 45 dBu
• Input impedance: -10 & -20dB: 70k Ohm(s) , -30dB: 40k Ohm(s) , 0dB & 12dB: 1M Ohm(s)
• Input pad: 0dB, -10dB, -20dB, -30dB
• Outputs: 1
• THRU outputs/channel: 1
• Output connectors: 6.3mm jack , XLR
• Max. output level: + 20dBu
• Output impedance: 600Ohm(s)
• Frequency response: 20 - 20000Hz
• Transformer balanced: yes
• Ratio: 3.16:1, 10:1, 31.6:1, 1:4
• Controls: attenuator, battery/+ 48V Power, Boost, ground lift
• Operating voltage: +48V phantom power, 9V block
• Cabinet material: sheet steel
• Cabinet surface: powder coated
• Width: 116mm
• Depth: 140mm
• Height: 43.5mm
• Weight: 0,85kg
