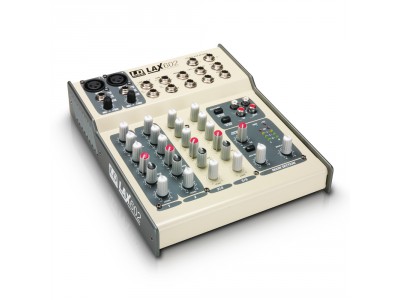

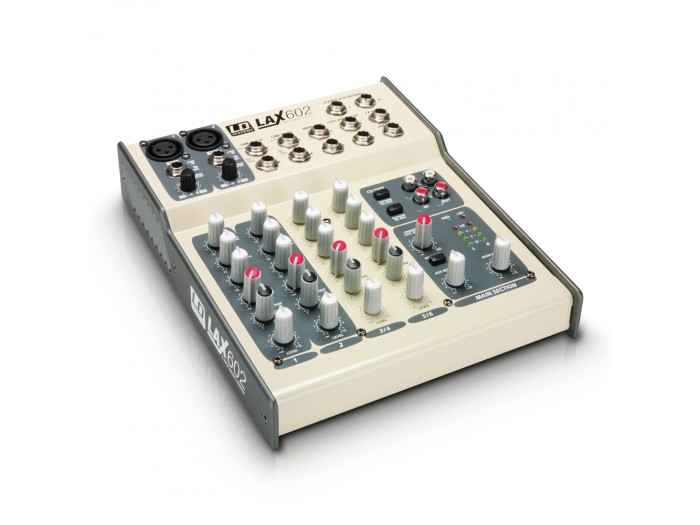

LD Systems LAX 602

6-channel mixer with AUX return

LDLAX602 - six inputs plus separate AUX return with excellent quality audio data in a compact size

The second smallest console in the LAX series boasts two microphone and two stereo line inputs within the smallest space - but despite its compact size, it offers excellent audio quality and a clear user interface. A stereo AUX return is provided to connect external devices, and all inputs feature three-band tone control.

The solid design of the LDLAX602 guarantees optimum performance and a long service life, even when used in a demanding stage environment. The LDLAX602 is best used on stage as a compact submixer or in the project studio with low channel requirements.

• Mic Input / Line: 2
• CH EQ: High, Mid, Low, ± 15 dB
• 48 V Phantom Power Supply: Yes
• Stereo Input: 2 + 1 Aux Return
• CH EQ: High, Mid, Low, ± 15 dB
• Head Phone: With
• Tape in/out: in/out
• DSP: Without
• THD: 0.005 % 20 Hz - 20 k
• Frequency Response: 20 Hz - 20 kHz ± 0.5 dB

• S/N: - 80 dB
• Input Voltage: AC 16.8 V x 500 m A x 2
• Dimensions (W x H x D): 193 x 55 x 240 mm
