Naziv proizvoda

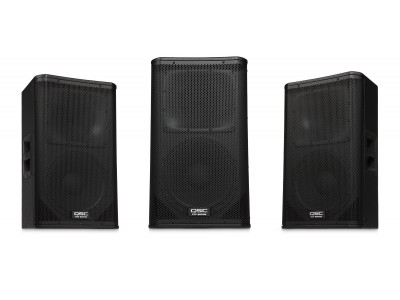

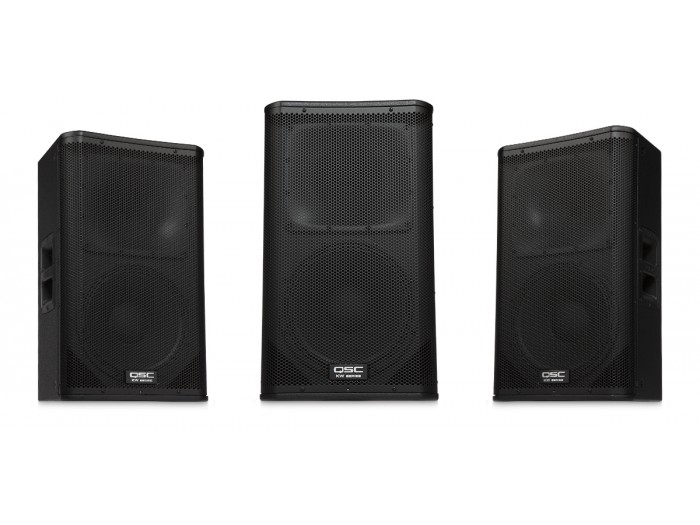

QSC KW122

QSC KW122
[klikni na sliku za uvećan prikaz]

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

12” Woofer; 1.75” diaphragm compression driver

75° conical DMT coverage

Maximum SPL 131 dB peak

Also functions as monitor floor wedge

1000-watt Class D power modules in all models (2 × 500 W continuous)

Onboard mixer with two combo XLR and ¼” inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output

Extensive DSP featuring DEEP™ and Intrinsic Correction™ enhances system performance

DMT™ (Directivity Matched Transition) ensures uniform coverage across the entire sound field

Rugged, texture-painted birch enclosures

Four-position Mic/Line gain (full-range models)

Tour-grade 16 gauge steel grilles

Comfortable ergonomic handles

35 mm pole sockets with Tilt-Direct™

M10 rigging points for suspended installation

Karakteristike:

Configuration

12" 2-way multipurpose

Transducers
Low-frequency
Mid-frequency
High-frequency


12" cone transducer

-

1.75" diaphragm compression driver

Frequency Response (-6 dB)

53 Hz to 18 kHz

Frequency Range (-10 dB)

50 Hz to 20 kHz

Nominal Coverage (-6 dB)

75° axisymmetric

Maximum SPL1

131 dB peak

Amplifier

Power Output2

1000 W Class D (500 W LF + 500 W HF) continuous
2000 W peak

Input Impedance

Channel A XLR / ¼":

Mic gain setting

Balanced

Unbalanced

0 dB

38 kΩ

19 kΩ

+12 dB

10 kΩ

5 kΩ

+24 dB

2.66 kΩ

1.33 kΩ

+36 dB

660Ω

330Ω

Channel B XLR / ¼": 38 kΩ balanced / 19 kΩ unbalanced
Channel B RCA: 10 kΩ

Controls

Power, Gain A, Gain B, Channel A Input Gain (0 dB / 12 dB / 24 dB / 36 dB), LF Mode (Ext Sub/Norm/DEEP™), HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit)

Indicators

Power, Signal A, Signal B, Standby, Limit, Mic (24 dB and 36 dB settings)

Connectors

Balanced female XLR/¼" line/mic level input, Balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector

Cooling

On demand, 50 mm variable speed fan

Amplifier Protection

Thermal limiting, output overcurrent, overtemperature muting, GuardRail™

Transducer Protection

Thermal limiting, excursion limiting

AC Power Input

Universal power supply 100–240 VAC, 50 to 60 Hz

AC Power Consumption
(1/8 Power)

100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A

Enclosure

Material

15 mm painted birch plywood

Finish

Black textured paint

Grille

Black powder coated 16 gauge steel

Dimensions (HWD) inches

26 x 15 x 15.4

Dimensions (HWD) mm

660 × 381 × 391

Net Weight

49 lb / 22.2 kg

Available Accessories

KW122 suspension kit, KW122 cover, KW M10 kit
