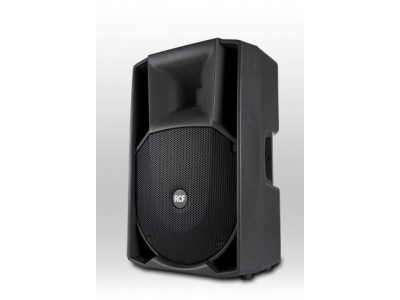

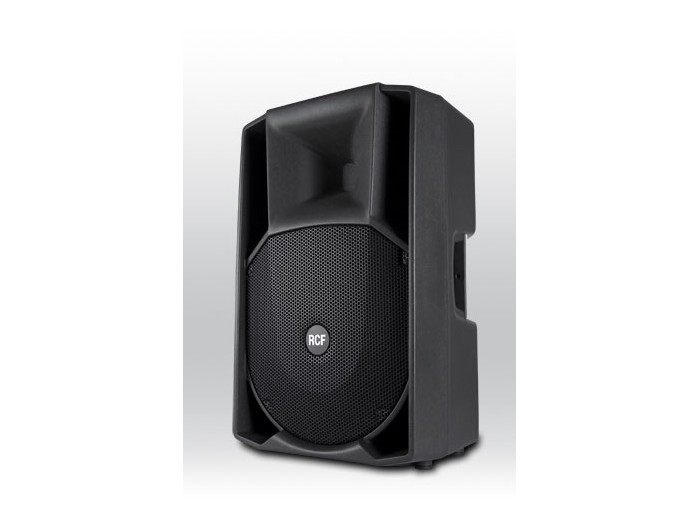

RCF ART 715A MK II

Tired of worrying about the fact that the voice isn't cutting through the mix on the stage?

Well, why not try the ART 715-A as a stage monitor.
This is the perfect speaker for live sound situations where you need extra punch in bass reproduction and extremely accurate high frequency response to hear the voice when the band is playing at full throttle.

ACOUSTICAL SPECIFICATIONS

Frequency Response -3 dB: 50 Hz ÷ 20000 Hz

Max SPL: 130 dB

Horizontal coverage angle: 90°

Vertical coverage angle: 60°

Compression Driver: 1", 1.75" v.c.

Woofer: 15", 3.0" v.c.

INPUT/OUTPUT SECTION

Input signal: bal / unbal

Input connectors: xlr-jack

Output connectors: xlr

Input sensitivity: -2 dBu / +4 dBu

PROCESSOR SECTION

Crossover frequencies: 1700 Hz

Protections: Thermal, rms

Limiter: Soft limiter

Controls: Volume, EQ shape

AMPLIFIER SPECIFICATIONS

Total power: 1400 W PEAK

   High frequencies: 400 W PEAK

   Low frequencies: 1000 W PEAK

Total power: 700 W RMS

   High frequencies: 200 W RMS

   Low frequencies: 500 W RMS

Cooling: Convection / forced

Connections: VDE connector in

CABINET

Cabinet Material: Composite PP

Hardware: 2xM10 flying p.

Handles: 2 side, 1 top

Pole Mount/Cap: Yes

Colour: Black

PHYSICAL SPECIFICATIONS

Height: 708 / 27.87 mm/inch

Width: 437 / 17.2 mm/inch

Depth: 389 / 15.31 mm/inch

Net Weight: 19.4 / 42.76 kg/lbs
