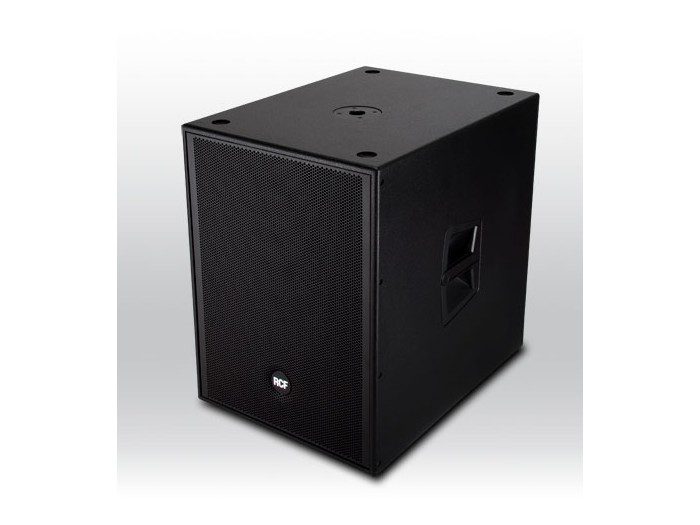

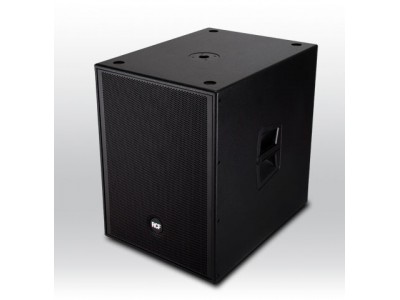

RCF 4PRO 8003AS

The 4PRO 8003-AS is a vented, high output,  active subwoofer system where the punch of a single 18” is desired.

It is powered by a 1000 W compact and lightweight digital amplifier and the port area has been carefully designed for reduced distortion. It works equally well for portable or install applications and it is engineered to complement full-range loudspeakers in a wide range of PA situations.

ACOUSTICAL SPECIFICATIONS

Frequency Response -3 dB: 40 Hz ÷ Xover p. Hz

Max SPL: 134 dB

Woofer: 18" ferrite magnet, 4" voice coil

INPUT/OUTPUT SECTION

Input signal: bal / unbal

Input connectors: Stereo c. xlr-jack

Output connectors: Stereo xlr

Input sensitivity: - 2 dBu / +4 dBu

PROCESSOR SECTION

Crossover frequencies: 80 / 120 Hz

Protections: Thermal, rms

Limiter: Dinamic limiter

Controls: Volume, xover, phase

AMPLIFIER SPECIFICATIONS

Total power: 2000 W PEAK

   Low frequencies: 2000 W PEAK

Total power: 1000 W RMS

   Low frequencies: 1000 W RMS

Cooling: Convection/forced

Connections: Powercon in / out

CABINET

Cabinet Material: Baltic birch

Handles: 2 side

Pole Mount/Cap: Yes

Colour: Black

PHYSICAL SPECIFICATIONS

Height: 700 / 27.56 mm/inch

Width: 520 / 20.47 mm/inch

Depth: 700 / 27.56 mm/inch

Net Weight: 49 / 108.02 kg/lbs
